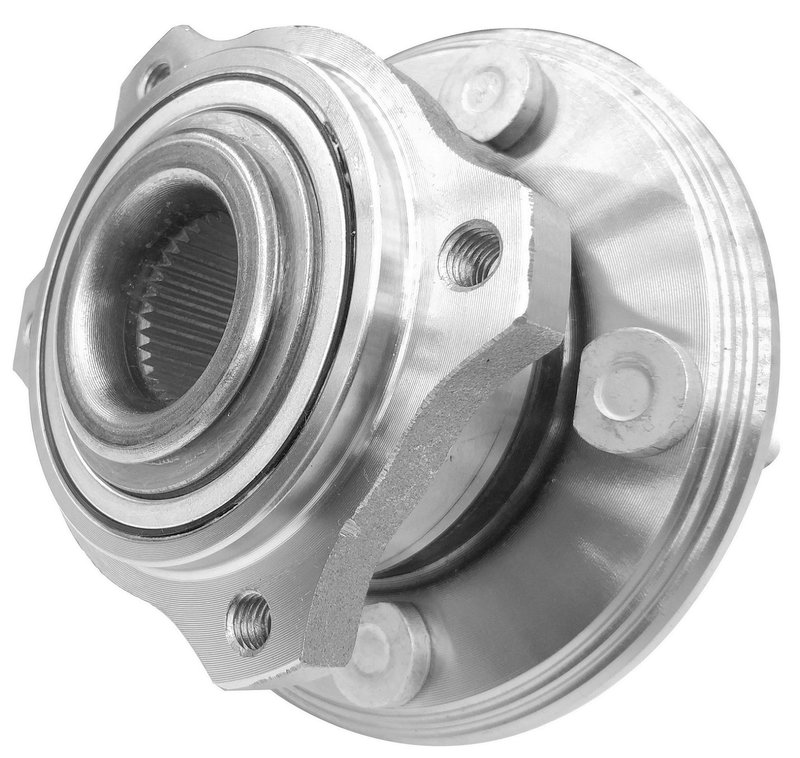

FAG WH1414 Wheel Bearing and Hub Assembly - Rear

Overview of FAG WH1414 Wheel Bearing and Hub Assembly

The FAG WH1414 wheel bearing and hub assembly is engineered for reliable performance in Chrysler and Dodge vehicles, including the 300, Challenger, and Charger models. Designed to meet precise specifications, this component ensures proper wheel alignment and smooth rotation.

• Bolt hole diameter: 115 mm (4.528 inches)
• Brake pilot diameter: 72.5 mm (2.854 inches)
• Wheel stud quantity: 5
• Hub pilot diameter: 90.4 mm (3.559 inches)
• Hub bolt hole diameter: 110 mm (4.331 inches)
• Flange diameter: 150 mm (5.906 inches)
• Inlet mounting hole quantity: 4
• Outer diameter wheel centering: 71.4 mm (2.811 inches)
• Width wheel flange to knuckle flange: 60.3 mm (2.374 inches)
• Non-ABS tone ring included

Technical Details and Specifications

The WH1414 wheel bearing and hub assembly from FAG is designed with exacting dimensions to ensure compatibility and optimal fitment for select Chrysler and Dodge vehicles. The 5-lug wheel stud configuration and precise bolt hole diameters (115 mm and 110 mm) provide secure mounting and alignment. The brake pilot diameter of 72.5 mm supports proper brake rotor positioning, while the hub pilot diameter of 90.4 mm ensures accurate centering of the wheel hub. The flange diameter of 150 mm and the 4 inlet mounting holes contribute to a stable and durable connection between the hub and the vehicle’s knuckle. This assembly includes a non-ABS tone ring, suitable for vehicles without ABS systems.

Compatible Vehicles and Applications

• Chrysler 300 wheel bearing replacement
• Dodge Challenger hub assembly upgrade
• Dodge Charger driveline repair
• Wheel hub maintenance for Chrysler and Dodge models
• Addressing wheel vibration and noise issues in compatible vehicles

Installation Notes and Tips

When installing the FAG WH1414 wheel bearing and hub assembly, ensure the mounting surfaces are clean and free of debris. Verify the bolt hole diameters and stud count match the vehicle specifications. Proper torque settings should be applied to the hub bolts to maintain secure fitment. This assembly is designed for vehicles without ABS; confirm ABS compatibility before installation. Use appropriate tools to avoid damage to the hub pilot and flange areas during installation.

Quality Assurance and Warranty

FAG manufactures the WH1414 wheel bearing and hub assembly to meet industry standards for durability and performance. While specific warranty details are not provided, FAG products typically undergo rigorous quality control to ensure reliability in automotive applications. This part is identified by part number WH1414 and GTIN 00670774578571 for accurate ordering and verification.
