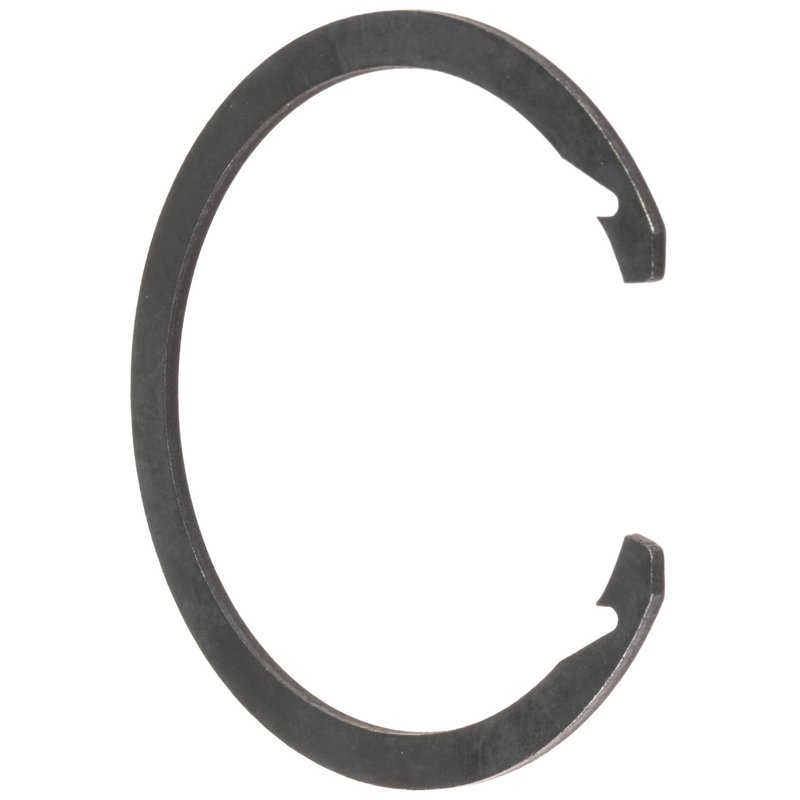

FAG WR0114 Wheel Bearing Retaining Ring - Front

Overview of FAG WR0114 Wheel Bearing Retaining Ring

The FAG WR0114 wheel bearing retaining ring is engineered for precise fitment and reliable performance in driveline and axle assemblies. Designed to meet exacting specifications, this retaining ring ensures secure positioning of wheel bearings in select Ford, Lexus, Lincoln, Mazda, Pontiac, and Toyota models.

• Inside diameter options: 3.071 inches (78 mm)
• Outside diameter options: 3.513 inches (89.23 mm)
• Width options: 0.098 inches (2.5 mm)
• Durable construction for consistent retention
• Compatible with multiple vehicle makes and models

Technical Specifications and Dimensions

The WR0114 retaining ring features two sets of inside and outside diameter measurements to accommodate specific wheel bearing housings. The smaller inside diameter measures 3.071 inches (78 mm), while the larger inside diameter is 78 mm, providing versatility for different applications. The outside diameters are 3.513 inches (89.23 mm), ensuring a secure fit within the axle assembly. The width of the ring is 0.098 inches (2.5 mm), offering a slim profile that maintains bearing position without excess bulk.

Compatible Vehicles and Applications

This retaining ring is compatible with a range of vehicles, including Ford Edge and MKX, Lexus ES300h, ES330, ES350, RX330, RX350, RX400h, Toyota Avalon, Camry, Highlander, Solara, Venza, Mazda CX-7 and CX-9, Lincoln MKX, and Pontiac Vibe. The part number WR0114 is specifically designed to meet the requirements of these models, ensuring proper fit and function in their driveline and axle systems.

Common Uses and Problem Resolution

• Secures wheel bearings in place to prevent axial movement
• Prevents bearing slippage and potential drivetrain damage
• Maintains alignment within the axle assembly
• Addresses issues related to bearing noise or looseness
• Supports overall driveline stability and safety

Installation Notes and Tips

When installing the FAG WR0114 retaining ring, ensure the correct diameter matches the bearing housing specifications. Use appropriate tools to avoid deformation of the ring during installation. Verify that the ring seats fully in its groove to maintain bearing retention. Proper installation is critical to prevent premature wear or failure of the wheel bearing assembly.

Quality Assurance and Warranty

FAG manufactures the WR0114 retaining ring to meet stringent quality standards, ensuring durability and reliable performance. While specific warranty details are not provided, FAG products typically adhere to industry standards for material and manufacturing quality, supporting long-term service in automotive driveline applications.
