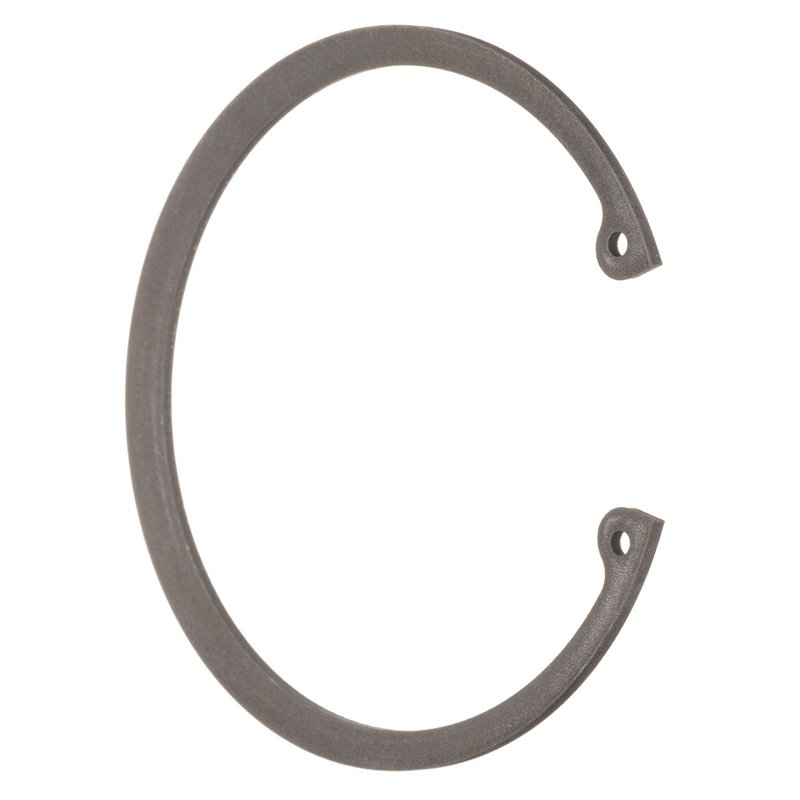

FAG WR0122 Wheel Bearing Retaining Ring - Front
| Brand | FAG WR0122 |
|---|---|
| Position | Front |
| Inside Diameter | 0.299 |
| Inside Diameter | 7.6 |
| Width | 0.1 |
| Width | 2.54 |
| Outside Diameter | 3.812 |
| Outside Diameter | 96.82 |
| Fits | Acura and Honda · 59 vehicles |
Wheel bearing retaining ring. Helps secure bearing components during professional repair.
Chassis specialist supply. FAG provides repair hardware and related components.
Cross-references SKF CIR97, Timken RET97 and 7130122100 for the same application. See all 3.
Wheel Bearing Retaining Ring for Front Applications
The FAG WR0122 wheel bearing retaining ring is a precision hardware component used to secure the wheel bearing assembly in front driveline service. With an inside diameter of 0.299 in (7.6 mm), an outside diameter of 3.812 in (96.82 mm), and a width of 0.1 in (2.54 mm), it is built to match the dimensional requirements of the application.
Fits 2007-2017 Acura RDX, front; Fits 2007-2016 Honda CR-V, front; Fits 2005-2010 Honda Odyssey, front.
Key Features
- FAG wheel bearing retaining ring, part number WR0122
- Inside diameter: 0.299 in / 7.6 mm
- Outside diameter: 3.812 in / 96.82 mm
- Width: 0.1 in / 2.54 mm
- Front-position fitment for select Acura and Honda models
- Hardware-focused replacement for driveline and axle service
Detailed Description
FAG WR0122 is a wheel bearing retaining ring for front applications on select Acura and Honda vehicles, including the Acura MDX, Acura RDX, Acura RLX, Acura TLX, Honda CR-V, Honda Accord, Honda Crosstour, Honda Accord Crosstour, Honda Odyssey, Acura TL, and Acura TSX. This retaining ring helps secure the bearing assembly in place during wheel bearing and hub service, supporting proper assembly retention in the front driveline.
FAG supplies chassis and repair hardware such as retaining clips, ABS cables, and bolts as part of its service-component lineup, and WR0122 follows that same OE-style repair focus. This part cross-references SKF CIR97 and Timken RET97 for the same application.
What This Part Helps Address
- Loose or damaged wheel bearing retention hardware
- Improper bearing seating during front hub service
- Noise or movement caused by worn retaining components
- Repeat repairs when the original ring is distorted or corroded
- Front wheel bearing service on Acura and Honda driveline assemblies
Installation Notes and Tips
Verify the bearing and hub dimensions before installation and compare the old ring to the new FAG WR0122 part number. Clean the retaining groove thoroughly so the ring seats fully and evenly, and confirm the ring is positioned correctly before reassembly. For fitment verification, match the vehicle year, make, model, and front position exactly to the listed applications.
Quality Assurance
FAG is a chassis-focused brand that supplies repair components used in professional driveline service. WR0122 is manufactured to dimensional specifications that support accurate fitment on the listed Acura and Honda front applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Acura | MDX | — | Front | — |
| 2017 | Acura | RDX | — | Front | — |
| 2017 | Acura | RLX | — | Front | — |
| 2017 | Acura | TLX | — | Front | — |
| 2016 | Acura | MDX | AWD | Front | — |
| 2016 | Acura | RDX | — | Front | — |
| 2016 | Acura | RLX | — | Front | — |
| 2016 | Acura | TLX | — | Front | — |
| 2016 | Honda | CR-V | — | Front | — |
| 2015 | Acura | MDX | AWD | Front | — |
| 2015 | Acura | RDX | — | Front | — |
| 2015 | Acura | RLX | — | Front | — |
| 2015 | Acura | TLX | — | Front | — |
| 2015 | Honda | Accord | — | Front | — |
| 2015 | Honda | CR-V | — | Front | — |
| 2015 | Honda | Crosstour | — | Front | — |
| 2014 | Acura | MDX | AWD | Front | — |
| 2014 | Acura | RDX | — | Front | — |
| 2014 | Acura | RLX | — | Front | — |
| 2014 | Acura | TL | — | Front | — |
| 2014 | Acura | TSX | — | Front | — |
| 2014 | Honda | Accord | — | Front | — |
| 2014 | Honda | CR-V | — | Front | — |
| 2014 | Honda | Crosstour | — | Front | — |
| 2013 | Acura | RDX | — | Front | — |
| 2013 | Acura | TL | — | Front | — |
| 2013 | Acura | TSX | — | Front | — |
| 2013 | Honda | Accord | — | Front | — |
| 2013 | Honda | CR-V | — | Front | — |
| 2013 | Honda | Crosstour | — | Front | — |
| 2012 | Acura | RDX | — | Front | — |
| 2012 | Acura | TL | — | Front | — |
| 2012 | Acura | TSX | — | Front | — |
| 2012 | Honda | CR-V | — | Front | — |
| 2012 | Honda | Crosstour | — | Front | — |
| 2011 | Acura | RDX | — | Front | — |
| 2011 | Acura | TL | — | Front | — |
| 2011 | Acura | TSX | — | Front | — |
| 2011 | Honda | Accord Crosstour | — | Front | — |
| 2011 | Honda | CR-V | — | Front | — |
| 2010 | Acura | RDX | — | Front | — |
| 2010 | Acura | TL | — | Front | — |
| 2010 | Acura | TSX | — | Front | — |
| 2010 | Honda | Accord Crosstour | — | Front | — |
| 2010 | Honda | CR-V | — | Front | — |
| 2010 | Honda | Odyssey | — | Front | — |
| 2009 | Acura | RDX | — | Front | — |
| 2009 | Acura | TL | — | Front | — |
| 2009 | Acura | TSX | — | Front | — |
| 2009 | Honda | CR-V | — | Front | — |
| 2009 | Honda | Odyssey | — | Front | — |
| 2008 | Acura | RDX | — | Front | — |
| 2008 | Honda | CR-V | — | Front | — |
| 2008 | Honda | Odyssey | — | Front | — |
| 2007 | Acura | RDX | — | Front | — |
| 2007 | Honda | CR-V | — | Front | — |
| 2007 | Honda | Odyssey | — | Front | — |
| 2006 | Honda | Odyssey | — | Front | — |
| 2005 | Honda | Odyssey | — | Front | — |
