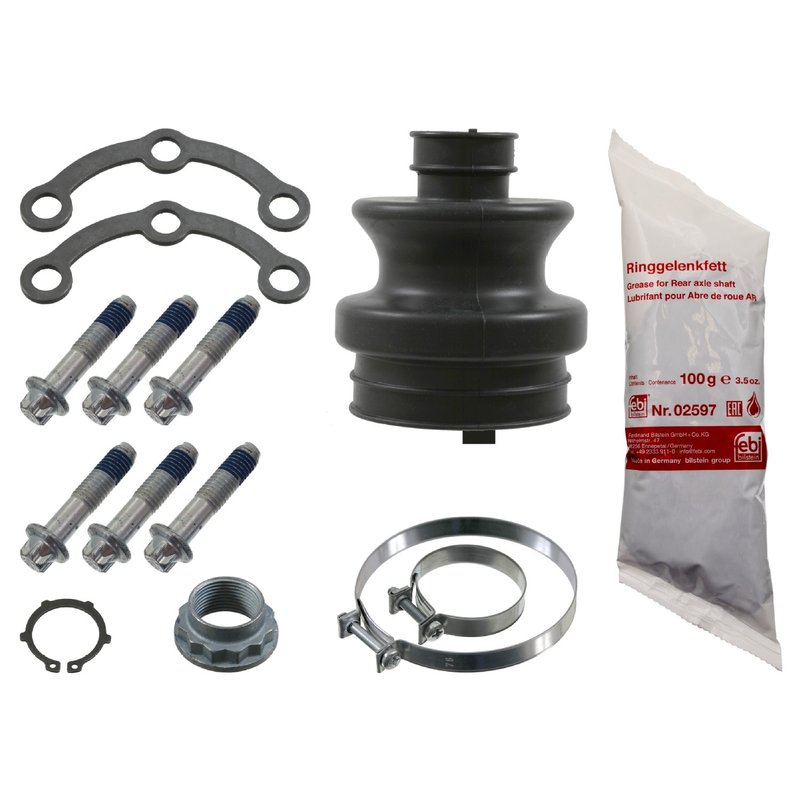

Febi 08481 CV Joint Boot Kit - Rear Inner
| Brand | Febi 08481 |
|---|---|
| Position | Rear Inner |
| Boot Material | rubber |
| Joint End Inside Diameter | 22.5 |
| Joint End Inside Diameter | 23.0 |
| Joint End Inside Diameter | 65.5 |
| Joint End Inside Diameter | 66.0 |
| Length (mm) | 99.0 |
| Fits | Mercedes-Benz · 45 vehicles |
Rubber boot material. Helps protect the CV joint from dirt and moisture.
CV joint boot kit. Provides the boot components needed for service replacement.
Cross-references 201 350 05 37 and 201 350 11 37 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Febi CV Joint Boot Kit for Mercedes-Benz Rear Inner Applications
Febi part 08481 is a rubber CV joint boot kit for rear inner driveline service on select Mercedes-Benz models. It is built around the listed OE-style dimensions, including a 99 mm length and inner diameters of 23.0 mm and 66.0 mm, for applications that require a precise boot-to-joint match.
Compatible with Mercedes-Benz C280, E300, E320, 190E, 300E, 300SL, 300TE, 300D, 300TD, 260E, 380SE, 500SEL, and 380SEL rear inner positions across the listed model years, Febi 08481 supports direct-fit replacement needs for Mercedes-Benz rear inner CV boot service.
Key Features
- Brand: Febi
- Part number: 08481
- Part type: CV joint boot kit
- Boot material: rubber
- Length: 99.0 mm
- Joint end inside diameters: 22.5 mm, 23.0 mm, 65.5 mm, and 66.0 mm
- Rear inner driveline application
- Cross-reference part numbers: 201 350 05 37 and 201 350 11 37
Detailed Description
Febi 08481 is a rubber CV boot for rear inner axle service on Mercedes-Benz driveline applications. The listed dimensions are important for proper sealing and fitment, especially on Mercedes-Benz C280 rear inner, Mercedes-Benz 300E rear inner, and Mercedes-Benz 190E rear inner applications where the boot must match the joint housing and shaft interface closely. The Febi brand line focuses on replacement components for European vehicle systems, and this part follows that approach with application-specific sizing for the vehicles shown in the fitment data.
This part cross-references OE numbers 201 350 05 37 and 201 350 11 37 for the same application.
What It Is Used For
- Replacing a torn or cracked rear inner CV boot
- Restoring grease retention around the CV joint
- Helping prevent contamination from road debris and moisture
- Addressing clicking or vibration concerns caused by boot failure and grease loss
- Servicing Mercedes-Benz rear axle driveline components before joint wear progresses
Installation Notes and Tips
Verify the rear inner position, boot length, and inner diameters against the removed part before installation. Clean the CV joint thoroughly, inspect for joint wear, and confirm the boot seats evenly on both ends to maintain a proper seal. For Mercedes-Benz C280, E300, E320, and 300E rear inner applications, match the listed dimensions and vehicle notes, including automatic transmission and chassis/date-specific references where shown in the fitment data.
Quality Assurance
Febi replacement parts are cataloged for application-specific fitment and dimensional accuracy. This part number, 08481, is listed with OE cross-reference numbers for the same Mercedes-Benz rear inner CV boot applications.
Fitment
- Fits 1999-2000 Mercedes-Benz C280, Rear Inner
- Fits 1998 Mercedes-Benz C280, Rear Inner
- Fits 1994-1995 Mercedes-Benz C280, Rear Inner
- Fits 1996-1997 Mercedes-Benz C280, Rear Inner
- Fits 1995 Mercedes-Benz E300, Rear Inner
- Fits 1994-1995 Mercedes-Benz E320, Rear Inner
- Fits 1993 Mercedes-Benz 190E, Rear Inner
- Fits 1990-1993 Mercedes-Benz 300E, Rear Inner
- Fits 1990-1993 Mercedes-Benz 300SL, Rear Inner
- Fits 1990-1993 Mercedes-Benz 300TE, Rear Inner
- Fits 1992-1993 Mercedes-Benz 500SEL, Rear Inner
- Fits 1987-1992 Mercedes-Benz 190E, Rear Inner
- Fits 1989 Mercedes-Benz 260E, Rear Inner
- Fits 1989 Mercedes-Benz 300E, Rear Inner
- Fits 1989 Mercedes-Benz 300TE, Rear Inner
- Fits 1987-1988 Mercedes-Benz 260E, Rear Inner
- Fits 1987 Mercedes-Benz 300D, Rear Inner
- Fits 1987 Mercedes-Benz 300TD, Rear Inner
- Fits 1984-1985 Mercedes-Benz 380SE, Rear Inner
- Fits 1984-1985 Mercedes-Benz 500SEL, Rear Inner
- Fits 1981-1983 Mercedes-Benz 380SEL, Rear Inner
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1999 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1998 | Mercedes-Benz | C280 | — | 2.8L | V6 | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1997 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; automatic transmission |
| 1996 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; automatic transmission |
| 1995 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1995 | Mercedes-Benz | E300 | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1995 | Mercedes-Benz | E320 | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1994 | Mercedes-Benz | C280 | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1994 | Mercedes-Benz | E320 | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1993 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1993 | Mercedes-Benz | 300E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1993 | Mercedes-Benz | 300SL | Automatic | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; To Chassis No.: F 118377 |
| 1993 | Mercedes-Benz | 300TE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1993 | Mercedes-Benz | 500SEL | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1992 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1992 | Mercedes-Benz | 300E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1992 | Mercedes-Benz | 300SL | Automatic | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; To Chassis No.: F 118377 |
| 1992 | Mercedes-Benz | 300TE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1992 | Mercedes-Benz | 500SEL | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1991 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1991 | Mercedes-Benz | 300E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1991 | Mercedes-Benz | 300SL | Automatic | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; To Chassis No.: F 118377 |
| 1991 | Mercedes-Benz | 300TE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1990 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1990 | Mercedes-Benz | 300E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1990 | Mercedes-Benz | 300SL | Automatic | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; To Chassis No.: F 118377 |
| 1990 | Mercedes-Benz | 300TE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1989 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1989 | Mercedes-Benz | 260E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; From Construction Year: 09/1989 |
| 1989 | Mercedes-Benz | 300E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; From Construction Year: 09/1989 |
| 1989 | Mercedes-Benz | 300TE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber; From Construction Year: 09/1989 |
| 1988 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1988 | Mercedes-Benz | 260E | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1987 | Mercedes-Benz | 190E | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1987 | Mercedes-Benz | 260E | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1987 | Mercedes-Benz | 300D | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1987 | Mercedes-Benz | 300TD | — | — | — | Rear Inner | Weight (lbm / kg) 0.55; febi |
| 1985 | Mercedes-Benz | 380SE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1985 | Mercedes-Benz | 500SEL | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1984 | Mercedes-Benz | 380SE | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1984 | Mercedes-Benz | 500SEL | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1983 | Mercedes-Benz | 380SEL | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1982 | Mercedes-Benz | 380SEL | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
| 1981 | Mercedes-Benz | 380SEL | — | — | — | Rear Inner | Length 1 (mm): 99; Inner Diameter 1 (mm): 23; Inner Diameter 2 (mm): 66; Material: rubber |
