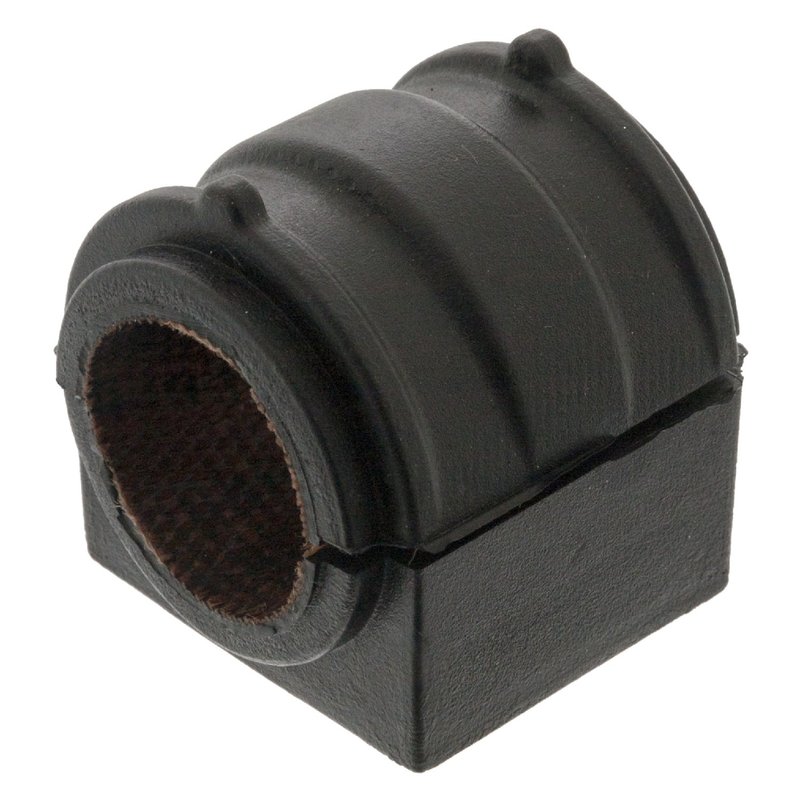

Febi 101349 Suspension Stabilizer Bar Bushing - Front
OE Quality 60-Day Returns
Febi

Febi 101349 Suspension Stabilizer Bar Bushing - Front

Brand Febi 101349
Position Front
Material Textile insert
Length 56.0
Inside Diameter 17.0
Width 51.0
Outside Diameter 31.0
Height 56.0
Fits Jaguar · 25 vehicles

Textile insert. Provides a durable bushing construction for suspension use.

Stabilizer bar bushing. Helps secure the bar and support consistent suspension control.

Cross-references XR 81833, XR 814128 and XR 819697 for the same application. See all 3.

$20.75Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $20.75
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Febi 101349 Front Stabilizer Bar Bushing

Febi 101349 is a front suspension stabilizer bar bushing built with a textile insert for controlled bar support and consistent fitment. It is specified for Jaguar XJ, Jaguar XK, and Jaguar S-Type applications where the front sway bar bushing dimensions match the listed OE-style measurements.

Key Features

  • Brand: Febi
  • Part number: 101349
  • Suspension stabilizer bar bushing for the front position
  • Material: textile insert
  • Dimensions: 56.0 mm length, 56.0 mm height, 51.0 mm width, 31.0 mm outside diameter, 17.0 mm inside diameter
  • Direct fitment reference for Jaguar XJ, Jaguar XK, and Jaguar S-Type front suspension service

Detailed Description

Febi 101349 is a front sway bar bushing engineered around the listed dimensions to support proper stabilizer bar location and suspension geometry. The textile insert material is selected for the bushing construction, while the measured inside diameter, outside diameter, length, width, and height help match the original front stabilizer bar interface on the specified Jaguar models. This part number 101349 is a practical OE-style replacement for front suspension service on Jaguar XJ, Jaguar XK, and Jaguar S-Type vehicles.

This part cross-references Monroe Shocks & Struts (e.g., XR 81833, XR 814128) for the same application.

What It Helps Address

  • Front stabilizer bar movement caused by worn bushing material
  • Clunking or knocking from the front suspension area
  • Excessive sway bar play that can affect steering response
  • Noise from deteriorated front anti-roll bar support points
  • Loss of consistent bar positioning at the chassis mount

Installation Notes and Tips

Verify the front stabilizer bar dimensions against the listed measurements before installation. Confirm vehicle application by year, model, and chassis notes, especially for 2010-2014 Jaguar XK vehicles listed with a chassis cutoff note. Proper alignment of the bushing to the stabilizer bar and mounting bracket is important for correct fit and quiet operation.

  • Fits 2010-2019 Jaguar XJ, front
  • Fits 2010-2014 Jaguar XK, front; to chassis no. B32752
  • Fits 1999-2008 Jaguar S-Type, front

Quality Assurance

Febi suspension components are cataloged to match specified vehicle applications and dimensional requirements. Part number 101349 is listed with OE-style fitment data for the front stabilizer bar on the supported Jaguar models.

This part fits 25 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2019JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2018JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2017JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2016JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2015JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2014JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2014JaguarXKFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert; To Chassis No. B32752
2013JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2013JaguarXKFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert; To Chassis No. B32752
2012JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2012JaguarXKFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert; To Chassis No. B32752
2011JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2011JaguarXKFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert; To Chassis No. B32752
2010JaguarXJFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2010JaguarXKFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert; To Chassis No. B32752
2008JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2007JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2006JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2005JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2004JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2003JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2002JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2001JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
2000JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
1999JaguarS-TypeFrontLength 1 (mm): 56; Height or Thickness 1 (mm): 56; Inner Diameter 1 (mm): 17; Outer Diameter 1 (mm): 31; Width 1 (mm): 51; Material: textile insert
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
XR 81833XR 814128XR 819697
