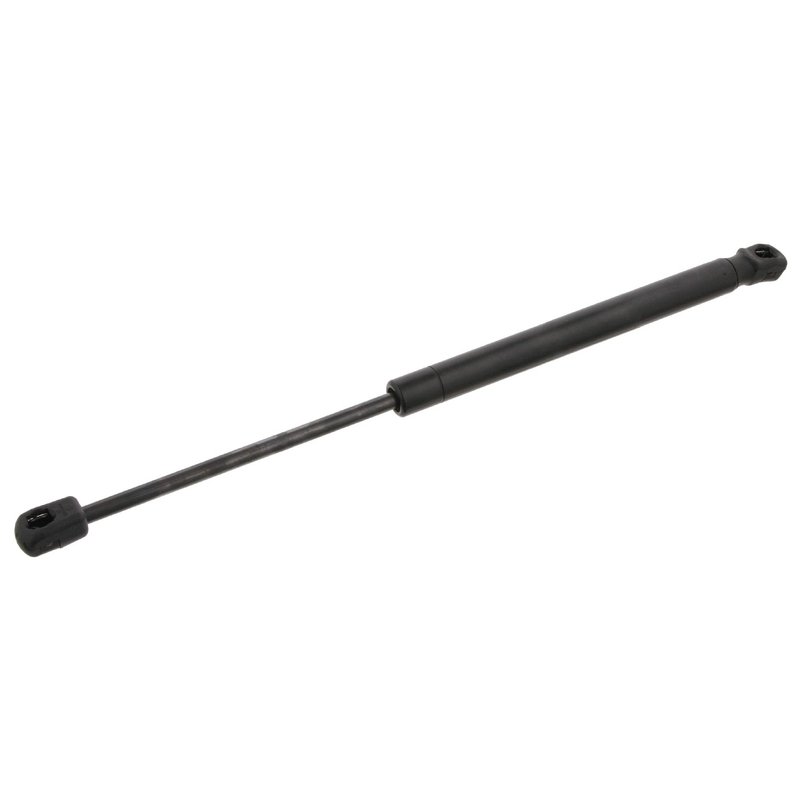

Febi 31640 Tailgate Lift Support
| Brand | Febi 31640 |
|---|---|
| 18.0 | |
| Inner Shaft Diameter | 8.0 |
| Length (mm) | 375.0 |
| Lifting Length (mm) | 145.0 |
| Maximum Force | 390 |
| Fits | Volkswagen · 5 vehicles |
Lift support. Provides controlled tailgate opening and steady holding force.
390 force rating. Delivers dependable support for smooth, controlled lifting.
Compact 375 mm length. Sized for efficient movement and consistent operation.
Cross-references 3C5 827 550 A, 3C5 827 550 B and 3C5 827 550 C for the same application. See all 3.
Tailgate Support for Volkswagen Passat
Restore controlled tailgate operation with this Febi tailgate lift support, part number 31640. It is built for the 2006-2010 Volkswagen Passat tailgate and matches the specified OE-style dimensions and force rating for direct replacement use.
Key Features
- Maximum force rating: 390 N for tailgate lift assistance
- Length: 375 mm with 145 mm lifting length
- Housing diameter: 18 mm and piston rod diameter: 8 mm
- Fits left or right tailgate position
- OE cross-reference application for Volkswagen Passat tailgate service
Detailed Product Overview
Febi 31640 is a tailgate lift support engineered to match the dimensions and extension force required for the 2006-2010 Volkswagen Passat. With a 375 mm overall length, 145 mm lifting length, and 390 N extension force, this support helps maintain proper tailgate movement and holding strength. If you are searching for a Volkswagen Passat tailgate lift support, Febi 31640 provides a direct-fit replacement option for the specified application.
This part cross-references OE numbers 3C5 827 550 A and 3C5 827 550 B for the same application.
Common Problems This Part Can Address
- Tailgate that drops instead of staying open
- Weak or inconsistent lift assistance
- Slow or uneven tailgate opening
- Excess effort needed to raise the tailgate
- Loss of support caused by worn gas struts
Installation Notes and Tips
Verify the existing support’s length, force rating, and mounting orientation before installation. This Febi 31640 tailgate lift support is listed for left and right use on the tailgate, so confirm the vehicle’s original configuration matches the OE reference and dimensions. Replace supports in matched condition when the opposite side shows similar wear.
Quality Assurance
Febi is an established aftermarket brand known for OE-style replacement parts, and this lift support is specified with exact dimensional and force data to support accurate fitment on the Volkswagen Passat tailgate application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Volkswagen | Passat | N/A | Additional information: For tailgate; Length 1 (mm): 375; Extension Force (N): 390; Lifting Length (mm): 145; Housing Diameter: 18; Piston Rod Diameter: 8; Left and Right |
| 2009 | Volkswagen | Passat | N/A | Additional information: For tailgate; Length 1 (mm): 375; Extension Force (N): 390; Lifting Length (mm): 145; Housing Diameter: 18; Piston Rod Diameter: 8; Left and Right |
| 2008 | Volkswagen | Passat | N/A | Additional information: For tailgate; Length 1 (mm): 375; Extension Force (N): 390; Lifting Length (mm): 145; Housing Diameter: 18; Piston Rod Diameter: 8; Left and Right |
| 2007 | Volkswagen | Passat | N/A | Additional information: For tailgate; Length 1 (mm): 375; Extension Force (N): 390; Lifting Length (mm): 145; Housing Diameter: 18; Piston Rod Diameter: 8; Left and Right |
| 2006 | Volkswagen | Passat | N/A | Additional information: For tailgate; Length 1 (mm): 375; Extension Force (N): 390; Lifting Length (mm): 145; Housing Diameter: 18; Piston Rod Diameter: 8; Left and Right |
| No rows match your filter. | ||||
