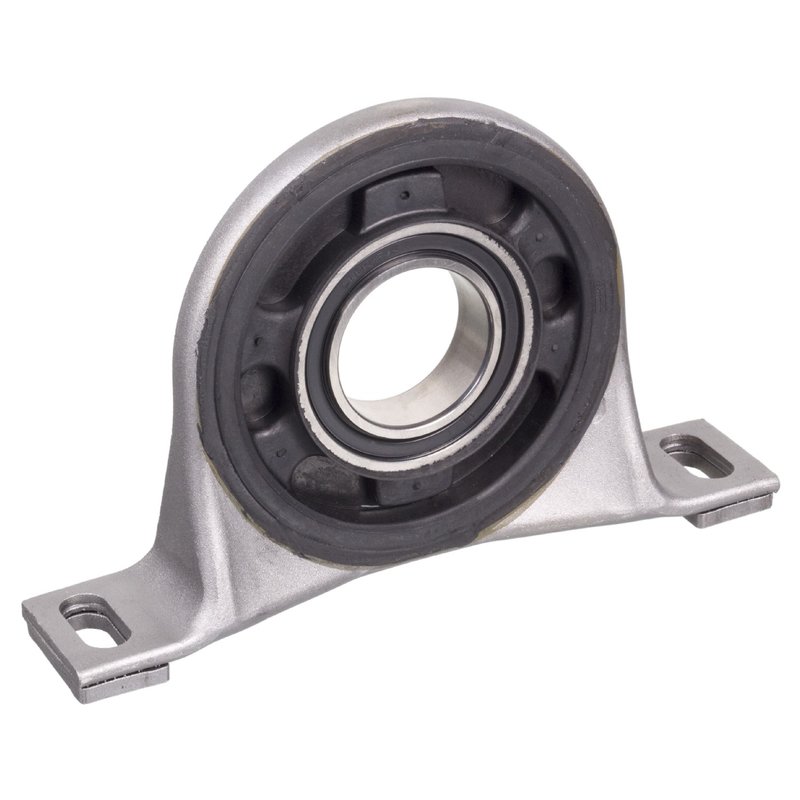

Febi 31851 Drive Shaft Center Support - Rear
OE Quality 60-Day Returns
Febi
 febi

Febi 31851 Drive Shaft Center Support - Rear

Brand Febi 31851
Position Rear
Maximum Outside Diameter 73.0
Maximum Inside Diameter 47.0
Bolt Hole Center To Bolt Hole Center 195.0
Bearing Type (Roller Bearing) Thrust ball bearing
Height or Thickness (mm) 142.0
Length (mm) 222.0
Width (mm) 44.0
Product line febi
Fits Mercedes-Benz and Volkswagen · 31 vehicles

Drive shaft support. Keeps the driveline centered and stable.

Thrust ball bearing. Built with a bearing type that handles axial load.

febi line. A trusted brand name for driveline components.

Cross-references 2E0 598 351 B, 515 410 68 82 and 515 410 72 82 for the same application. See all 12.

$155.35Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $155.35
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drive Shaft Center Support options

Drive Shaft Center Support for Sprinter and Crafter

Febi 31851 is a drive shaft center support built for Mercedes-Benz Sprinter and Volkswagen Crafter applications that use a thrust ball bearing design. With precise mounting dimensions and OE-style fitment references, it supports driveline alignment in rear-drive van platforms.

The febi product line focuses on replacement parts engineered to match original equipment specifications for European vehicles. Febi 31851 follows that approach with measured dimensions that matter for driveline service: 222 mm length, 142 mm height, 44 mm width, 73 mm maximum outside diameter, 47 mm maximum inside diameter, and 195 mm bolt hole center spacing.

  • Drive shaft center support for Mercedes-Benz Sprinter 2500 and Sprinter 3500 applications
  • Also listed for 2016 Volkswagen Crafter fitment
  • Thrust ball bearing construction
  • Maximum outside diameter: 73.0 mm
  • Maximum inside diameter: 47.0 mm
  • Bolt hole center to bolt hole center: 195.0 mm
  • Length: 222.0 mm; height: 142.0 mm; width: 44.0 mm
  • Febi part number 31851 for driveline service and replacement matching

Use Febi 31851 when replacing a worn drive shaft center support on rear-drive Mercedes-Benz Sprinter 2500 and Sprinter 3500 vans, including 2019-2024 Sprinter 2500 rear and 2019-2024 Sprinter 3500 rear with 3665 mm wheelbase, plus earlier Sprinter and Crafter applications listed below. This part cross-references OE-style numbers such as 2E0 598 351 B and 906 410 00 81 for the same application. The center support helps maintain driveshaft support and alignment in Sprinter and Crafter driveline systems, and part number 31851 is specified across multiple model years.

Fitment Details

  • Fits 2019-2024 Mercedes-Benz Sprinter 2500, rear, wheelbase 3665 mm.
  • Fits 2019-2024 Mercedes-Benz Sprinter 3500, rear, wheelbase 3665 mm.
  • Fits 2013-2018 Mercedes-Benz Sprinter 2500, with ball bearing; length 222 mm; height 142 mm; inner diameter 47 mm; outer diameter 73 mm; width 44 mm; hole pitch 195 mm; thrust ball bearing.
  • Fits 2010-2018 Mercedes-Benz Sprinter 3500, with ball bearing; length 222 mm; height 142 mm; inner diameter 47 mm; outer diameter 73 mm; width 44 mm; hole pitch 195 mm; thrust ball bearing.
  • Fits 2016 Volkswagen Crafter, with ball bearing; length 222 mm; height 142 mm; inner diameter 47 mm; outer diameter 73 mm; width 44 mm; hole pitch 195 mm; thrust ball bearing.
  • Fits 2010-2012 Mercedes-Benz Sprinter 2500, rear.

Common Replacement Symptoms

  • Driveline vibration from a worn center support bearing
  • Excessive driveline movement under load
  • Noise from the driveshaft support area
  • Visible wear or play in the center support assembly
  • Alignment issues after driveline service on Sprinter or Crafter models

Installation Notes

Verify the bearing type and all mounting dimensions before installation, especially the 195 mm bolt hole center spacing and the 47 mm inner diameter. Confirm vehicle configuration, wheelbase, and model year against the fitment list for Mercedes-Benz Sprinter 2500, Mercedes-Benz Sprinter 3500, and Volkswagen Crafter applications. Inspect the driveshaft and surrounding components for wear before installing the new center support.

Quality Assurance

Febi is a recognized aftermarket brand for European vehicle replacement parts, and febi 31851 is cataloged with OE-style interchange references for direct application matching. The part is specified with exact dimensional data to support accurate selection for Sprinter and Crafter driveline service.

Related reading

This part fits 31 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeTransmissionLitersCylindersFuel TypePositionNotes
2024Mercedes-BenzSprinter 2500RWD————RearWheelbase [Mm]: 3665; febi
2024Mercedes-BenzSprinter 3500—————RearWheelbase [Mm]: 3665; febi
2023Mercedes-BenzSprinter 2500RWD—2.0LL4—RearWheelbase [Mm]: 3665; febi
2023Mercedes-BenzSprinter 3500—————RearWheelbase [Mm]: 3665; febi
2022Mercedes-BenzSprinter 2500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2022Mercedes-BenzSprinter 3500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2021Mercedes-BenzSprinter 2500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2021Mercedes-BenzSprinter 3500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2020Mercedes-BenzSprinter 2500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2020Mercedes-BenzSprinter 3500RWD—3.0LV6—RearWheelbase [Mm]: 3665; febi
2019Mercedes-BenzSprinter 2500RWDAutomatic3.0LV6DIESELRearWheelbase [Mm]: 3665; febi
2019Mercedes-BenzSprinter 3500RWDAutomatic3.0LV6DIESELRearWheelbase [Mm]: 3665; febi
2018Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2018Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2017Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2017Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2016Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2016Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2016VolkswagenCrafter—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2015Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2015Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2014Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2014Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2013Mercedes-BenzSprinter 2500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2013Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2012Mercedes-BenzSprinter 2500—————RearWeight (lbm / kg) 0.925; febi
2012Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2011Mercedes-BenzSprinter 2500—————RearWeight (lbm / kg) 0.925; febi
2011Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
2010Mercedes-BenzSprinter 2500—————RearWeight (lbm / kg) 0.925; febi
2010Mercedes-BenzSprinter 3500—————N/AAdditional information: with ball bearing; Length 1 (mm): 222; Height or Thickness 1 (mm): 142; Inner Diameter 1 (mm): 47; Outer Diameter 1 (mm): 73; Width 1 (mm): 44; No. of Holes: 0; Hole Pitch 1 (mm): 195; Bearing Type (Roller Bearing): Thrust Ball Bearing
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
2E0 598 351 B515 410 68 82515 410 72 82906 410 00 81906 410 02 81906 410 06 81906 410 08 81906 410 11 81906 410 13 81906 410 16 81906 410 18 81907 410 63 01
