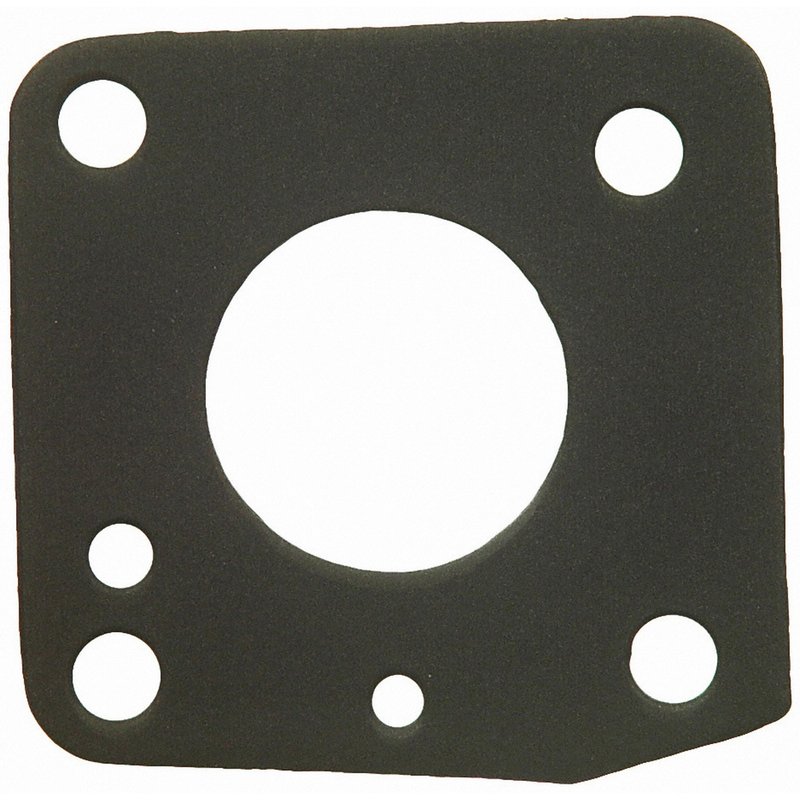

Fel-Pro 61030 Fuel Injection Throttle Body Mounting Gasket - Upper
| Brand | Fel-Pro 61030 |
|---|---|
| Position | Upper |
| Grade Type | Premium |
| Fits | Chevrolet, Geo, Pontiac, and Suzuki · 24 vehicles |
Premium grade. Built for throttle body sealing service with a professional fit.
Application-specific materials. Selected to deliver consistent sealing performance at the mounting surface.
OE-style sealing. Fel-Pro focuses on complete vehicle sealing for service reliability.
Cross-references 831576, 91172182 and G31404 for the same application. See all 3.
Fuel Injection Throttle Body Gasket
Fel-Pro 61030 is a premium fuel injection throttle body mounting gasket built for sealing the throttle body to the intake side of the fuel system. It is made for direct replacement use on select Chevrolet Metro, Pontiac Firefly, Geo Metro, and Suzuki Swift applications.
- Premium-grade gasket for throttle body mounting service
- Application-specific material selection for sealing performance
- Built for 100% vehicle sealing at the mounting interface
- Fits 1998-2000 Chevrolet Metro, upper
- Fits 1995-2000 Pontiac Firefly, upper
- Fits 1995-1997 Geo Metro, upper
- Fits 1995-1997 Suzuki Swift, upper
- Fits 1994 Geo Metro, N/A, California Emission System
- Fits 1994 Pontiac Firefly, N/A, California Emission System
- Fits 1994 Suzuki Swift, N/A, California Emission System
Detailed Fitment and Use
This throttle body mounting gasket is used to restore the seal between the throttle body and the intake assembly when servicing fuel injection components. Fel-Pro 61030 is a practical choice for throttle body gasket replacement on Chevrolet Metro and Pontiac Firefly applications, as well as Geo Metro and Suzuki Swift models listed in the fitment data. Part number 61030 is also referenced by 831576, 91172182, and G31404 for the same application.
Common Issues It Can Address
- Air leaks at the throttle body mounting surface
- Vacuum leaks caused by a worn or compressed gasket
- Rough idle related to sealing loss at the throttle body
- Fuel injection service that requires renewed sealing material
Installation Notes and Quality
Verify the engine and emission configuration before installation, especially for 1994 California Emission System applications. Clean both mating surfaces thoroughly and inspect the throttle body flange for damage before installing the new gasket. Fel-Pro states that its gaskets use application-specific materials and are engineered for complete vehicle sealing, reflecting the brand's focus on professional-grade sealing solutions. Part number 61030 identifies this gasket for ordering and service reference.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Chevrolet | Metro | 1.0L | L3 | Upper | — |
| 2000 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1999 | Chevrolet | Metro | 1.0L | L3 | Upper | — |
| 1999 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1998 | Chevrolet | Metro | 1.0L | L3 | Upper | — |
| 1998 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1997 | Geo | Metro | 1.3L | L4 | Upper | — |
| 1997 | Geo | Metro | 1.0L | L3 | Upper | — |
| 1997 | Pontiac | Firefly | 1.3L | L4 | Upper | — |
| 1997 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1997 | Suzuki | Swift | 1.3L | L4 | Upper | — |
| 1996 | Geo | Metro | 1.3L | L4 | Upper | — |
| 1996 | Geo | Metro | 1.0L | L3 | Upper | — |
| 1996 | Pontiac | Firefly | 1.3L | L4 | Upper | — |
| 1996 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1996 | Suzuki | Swift | 1.3L | L4 | Upper | — |
| 1995 | Geo | Metro | 1.3L | L4 | Upper | — |
| 1995 | Geo | Metro | 1.0L | L3 | Upper | — |
| 1995 | Pontiac | Firefly | 1.3L | L4 | Upper | — |
| 1995 | Pontiac | Firefly | 1.0L | L3 | Upper | — |
| 1995 | Suzuki | Swift | 1.3L | L4 | Upper | — |
| 1994 | Geo | Metro | 1.0L | L3 | N/A | Fits vehicles equipped with California Emission System. |
| 1994 | Pontiac | Firefly | 1.0L | L3 | N/A | Fits vehicles equipped with California Emission System. |
| 1994 | Suzuki | Swift | 1.0L | L3 | N/A | Fits vehicles equipped with California Emission System. |
