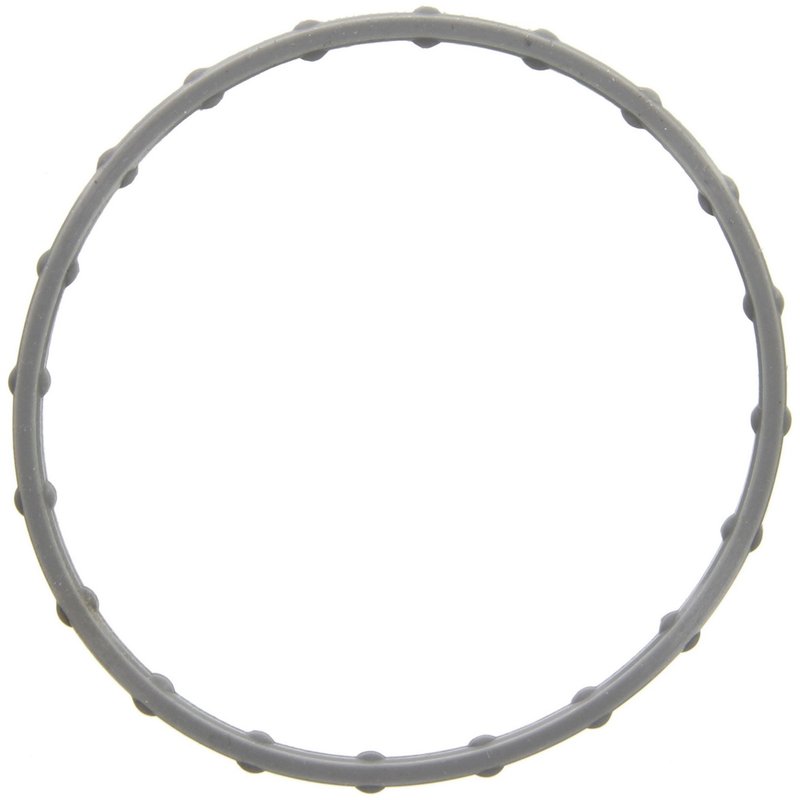

Fel-Pro 61566 Fuel Injection Throttle Body Mounting Gasket
| Brand | Fel-Pro 61566 |
|---|---|
| Material | Rubber |
| Grade Type | Premium |
| Inside Diameter | 3.197 |
| Inside Diameter | 81.2 |
| Number of Bolt Holes | 0 |
| Outside Diameter | 3.450 |
| Outside Diameter | 87.63 |
| Thickness | 0.125 |
| Thickness | 3.1 |
| Fits | Genesis, Hyundai, and Kia · 88 vehicles |
Application-specific materials. Built for dependable sealing performance and durability.
Rubber construction. Provides a flexible sealing surface for the throttle body gasket.
Premium grade. A professional-trusted sealing solution from Fel-Pro.
Cross-references MAHLE G32430 and 351013C000 for the same application. See all 2.
Fuel Injection Throttle Body Gasket for OE-Style Sealing
Fel-Pro 61566 is a premium fuel injection throttle body mounting gasket made with rubber for a precise seal at the throttle body interface. It is built for direct replacement service on a wide range of Hyundai, Kia, and Genesis applications, including Hyundai Santa Fe, Hyundai Sonata, Kia Sorento, Kia Sedona, and Genesis G80.
- Premium rubber construction for consistent sealing performance
- Fuel injection throttle body mounting gasket for air and fuel delivery service
- Inside diameter: 3.197 in. / 81.2 mm
- Outside diameter: 3.450 in. / 87.63 mm
- Thickness: 0.125 in. / 3.1 mm
- No bolt holes listed in the product data
- Cross-reference: MAHLE G32430 for the same application
Application Coverage
Compatible with 2020-2025 Hyundai Palisade, 2020-2023 Kia Telluride, 2015-2021 Kia Sedona, 2017-2020 Genesis G80, 2014-2020 Kia Cadenza, 2019-2020 Kia K900, 2015-2017 Kia K900, 2011-2020 Kia Sorento, 2013-2019 Hyundai Santa Fe XL, 2010-2018 Hyundai Santa Fe, 2007-2017 Hyundai Azera, 2009-2016 Hyundai Genesis, 2010-2016 Hyundai Genesis Coupe, and 2006-2008 Hyundai Sonata. Fel-Pro 61566 is a direct-fit sealing solution for these throttle body mounting locations.
What This Gasket Helps Address
- Air leaks at the throttle body mounting surface
- Rough idle caused by a poor seal
- Unmetered air entering the intake tract
- Throttle body sealing issues after service or replacement
- Vacuum-related drivability complaints tied to gasket wear
Installation Notes and Tips
Clean both mating surfaces before installation and inspect the throttle body flange for damage or contamination. Confirm the gasket matches the throttle body opening and mounting pattern before assembly. For best results, follow the vehicle service procedure and torque specifications for the specific Hyundai, Kia, or Genesis application.
Quality Assurance
Fel-Pro gaskets are engineered with application-specific materials to deliver vehicle sealing performance professionals rely on. The 61566 follows that approach with a premium rubber design for dependable sealing in throttle body service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2024 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2023 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2023 | Kia | Telluride | 3.8L | V6 | N/A | — |
| 2022 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2022 | Kia | Telluride | 3.8L | V6 | N/A | — |
| 2021 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2021 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2021 | Kia | Telluride | 3.8L | V6 | N/A | — |
| 2020 | Genesis | G80 | 3.8L | V6 | N/A | — |
| 2020 | Hyundai | Palisade | 3.8L | V6 | N/A | — |
| 2020 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2020 | Kia | K900 | 3.3L | V6 | N/A | — |
| 2020 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2020 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2020 | Kia | Telluride | 3.8L | V6 | N/A | — |
| 2019 | Genesis | G80 | 3.8L | V6 | N/A | — |
| 2019 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2019 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2019 | Kia | K900 | 3.3L | V6 | N/A | — |
| 2019 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2019 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2018 | Genesis | G80 | 3.8L | V6 | N/A | — |
| 2018 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2018 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2018 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2018 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2018 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2017 | Genesis | G80 | 3.8L | V6 | N/A | — |
| 2017 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2017 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2017 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2017 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2017 | Kia | K900 | 3.8L | V6 | N/A | — |
| 2017 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2017 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2016 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2016 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2016 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2016 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2016 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2016 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2016 | Kia | K900 | 3.8L | V6 | N/A | — |
| 2016 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2016 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2015 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2015 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2015 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2015 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2015 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2015 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2015 | Kia | K900 | 3.8L | V6 | N/A | — |
| 2015 | Kia | Sedona | 3.3L | V6 | N/A | — |
| 2015 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2014 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2014 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2014 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2014 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2014 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2014 | Kia | Cadenza | 3.3L | V6 | N/A | — |
| 2014 | Kia | Sorento | 3.3L | V6 | N/A | — |
| 2013 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2013 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2013 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2013 | Hyundai | Santa Fe | 3.3L | V6 | N/A | — |
| 2013 | Hyundai | Santa Fe XL | 3.3L | V6 | N/A | — |
| 2013 | Kia | Sorento | 3.5L | V6 | N/A | — |
| 2012 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2012 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2012 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2012 | Hyundai | Santa Fe | 3.5L | V6 | N/A | — |
| 2012 | Kia | Sorento | 3.5L | V6 | N/A | — |
| 2011 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2011 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2011 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2011 | Hyundai | Santa Fe | 3.5L | V6 | N/A | — |
| 2011 | Kia | Sorento | 3.5L | V6 | N/A | — |
| 2010 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2010 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2010 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | — |
| 2010 | Hyundai | Santa Fe | 3.5L | V6 | N/A | — |
| 2009 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2009 | Hyundai | Genesis | 3.8L | V6 | N/A | — |
| 2008 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2008 | Hyundai | Sonata | 3.3L | V6 | N/A | — |
| 2007 | Hyundai | Azera | 3.3L | V6 | N/A | — |
| 2007 | Hyundai | Sonata | 3.3L | V6 | N/A | — |
| 2006 | Hyundai | Sonata | 3.3L | V6 | N/A | — |
