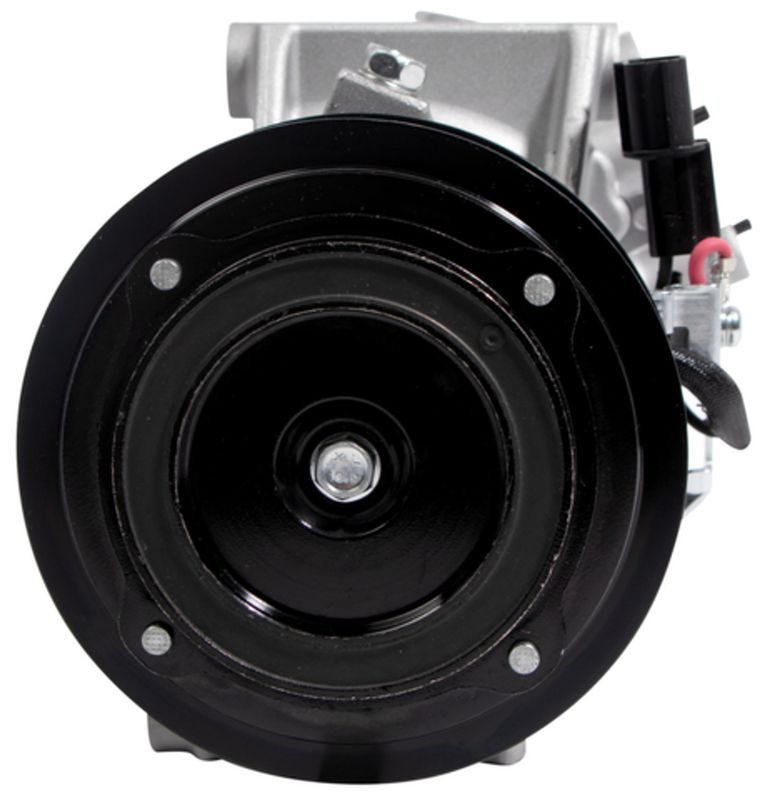

Four Seasons 158114 A/C Compressor
| Brand | Four Seasons 158114 |
|---|---|
| Refrigerant Type | R1234yf |
| Oil Filled | Included |
| Pulley Groove Quantity | 6 |
| Outside Pulley Diameter | 4.500 |
| Clutch Included | Yes |
| Compressor Type | Denso |
| Coil Voltage | 12 |
| Switch Included | No |
| Pulley Belt Type | Serpentine |
| Mounting Type | 3 tangent one on rear head |
| Connector Type | Lead wire |
| Electronic Control Valve | Yes |
| Model | 6sas14c |
| Mounting Hardware Included | No |
| New or Reman | New |
| O-Ring A Number/Desc | 24131 / o-ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24622 / o-ring |
| O-Ring B Quantity | 1 |
| Product line | New Compressor |
| Fits | Hyundai · 4 vehicles |
New compressor. Built for service replacement with oil included and a clutch already installed.
R1234YF system fit. Configured for modern refrigerant applications with an electronic control valve.
Denso-style design. Uses a 6-groove serpentine pulley and 12-volt coil for factory-style operation.
Cross-references Four Seasons 158114, 97701L0000 and CO11830C for the same application. See all 3.
Overview
Four Seasons 158114 is a new A/C compressor built for R1234YF systems and configured as a Denso-style unit with a clutch, electronic control valve, and oil included. It is a direct-fit HVAC replacement for select Hyundai Sonata applications and is built for service work where the original compressor has failed or lost efficiency.
Key Features
- New compressor construction for service replacement
- R1234YF refrigerant type
- Denso compressor type with 12-volt coil
- Clutch included with electronic control valve
- Serpentine belt pulley with 6 grooves
- Lead wire connector and 3-tangent rear-head mounting
Fitment
Fits 2020-2023 Hyundai Sonata, N/A.
Detailed Description
Four Seasons 158114 is engineered as a new compressor for modern R1234YF air conditioning systems. The Denso-style design, 6-groove serpentine pulley, and included clutch support proper belt engagement and system operation, while the electronic control valve and oil-filled construction address key compressor service requirements. This part cross-references Hyundai 97701L0000 and CO11830C for the same application.
For Hyundai Sonata owners servicing the HVAC system, Four Seasons 158114 provides a replacement built around the original compressor architecture and mounting style. The lead-wire connector and 3-tangent rear-head mounting help match the factory configuration on listed vehicles, reducing the need to adapt the system during repair.
Common Repair Uses
- Restores cooling performance when the compressor is worn or seized
- Addresses noisy compressor operation
- Helps correct refrigerant circulation problems
- Replaces a leaking or inefficient A/C compressor
Installation Notes
Verify refrigerant type, pulley groove count, connector style, and mounting configuration before installation. This compressor is listed with clutch included, oil included, and no mounting hardware included. Confirm system cleanliness and follow proper A/C service procedures during replacement.
Quality Assurance
Four Seasons backs this compressor with more than 50 years of mobile A/C experience and tests products for trouble-free operation.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2023 | Hyundai | Sonata | 1.6L | L4 | New w/ Clutch; New Compressor |
| 2022 | Hyundai | Sonata | 1.6L | L4 | New w/ Clutch; New Compressor |
| 2021 | Hyundai | Sonata | 1.6L | L4 | New w/ Clutch; New Compressor |
| 2020 | Hyundai | Sonata | 1.6L | L4 | New w/ Clutch; New Compressor |
