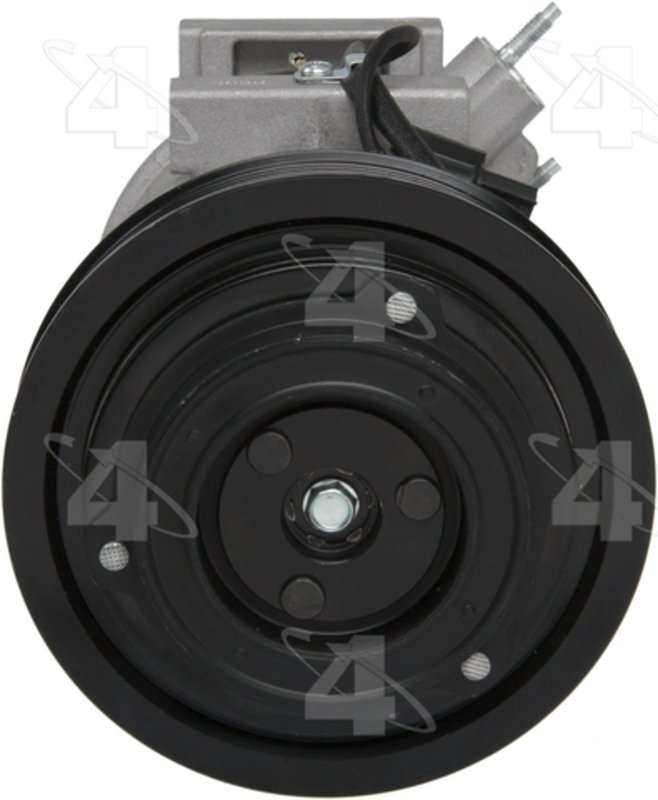

Four Seasons 158334 A/C Compressor

Overview of Four Seasons New Compressor 158334

The Four Seasons New Compressor 158334 is designed for reliable air conditioning performance in select Acura and Honda vehicles. Engineered to meet OEM specifications, this A/C compressor supports R134a refrigerant and comes oil filled for immediate installation.

• Compatible with Acura MDX, Honda Odyssey, Pilot, Ridgeline, and ZDX models
• Uses R134a refrigerant and Pag 46 compatible oil
• Includes clutch and oil for complete assembly
• Features a 6-groove serpentine pulley with a 5.1875-inch diameter
• 12-volt coil with pin terminal and 1 wire lead coil clock position
• Tangent mount type with a 2.09375-inch distance from clutch to mounting flange
• Discharge and suction ports use O-ring seals for secure connections

Four Seasons New Compressor Product Line Details

The Four Seasons New Compressor line provides brand-new, direct replacement compressors designed to meet or exceed original equipment standards. This product line focuses on delivering fully assembled compressors with included clutches and oil, reducing installation time and ensuring compatibility with factory systems. The 158334 model exemplifies this approach by offering a complete unit ready for use in specific Acura and Honda vehicles.

Technical Specifications and Features

This Four Seasons A/C compressor is a Nippondenso 10sr17c type, engineered for vehicles using R134a refrigerant. It comes pre-filled with Pag 46 oil, which is compatible with the system requirements. The compressor includes a clutch assembly with a maximum diameter of 5.1875 inches and a pulley featuring six grooves designed for serpentine belts. The pulley diameter measures approximately 131.75 mm, with matching lip and ridge diameters to ensure proper belt alignment.

The coil operates at 12 volts and uses a pin terminal with a single wire lead positioned at the 1 o'clock clock position. The mounting type is tangent mount, with a precise distance of 2.09375 inches from the clutch to the mounting flange, and a mount distance of 53.34 mm. Both the suction and discharge ports utilize O-ring seals, including green O-rings (part numbers 24681 and 24661) to maintain system integrity.

Common Applications and Problem Resolution

• Replacement for failed or leaking A/C compressors in Acura MDX and Honda Pilot
• Restores proper air conditioning function in Honda Odyssey and Ridgeline models
• Addresses clutch engagement issues and pulley wear in Honda ZDX
• Solves refrigerant leaks due to worn O-rings or damaged ports
• Eliminates compressor noise or failure caused by internal component wear

Installation Notes and Tips

Installation of the Four Seasons New Compressor 158334 requires attention to proper mounting and connection details. The unit does not include mounting hardware, so original equipment fasteners should be reused or replaced as needed. It may require the use of the original equipment manifold for proper system integration. Ensure the serpentine belt is correctly aligned with the 6-groove pulley to prevent premature wear. Verify that the O-rings are properly seated to avoid refrigerant leaks. The included oil is pre-filled, but system evacuation and recharge with R134a refrigerant should be performed according to manufacturer specifications.

Quality Assurance and Warranty

This Four Seasons New Compressor is a brand-new, direct replacement part manufactured to meet OEM standards. It includes a clutch and is pre-filled with compatible oil to ensure immediate functionality. While mounting hardware is not included, the compressor is designed for straightforward installation in compatible Acura and Honda models. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
