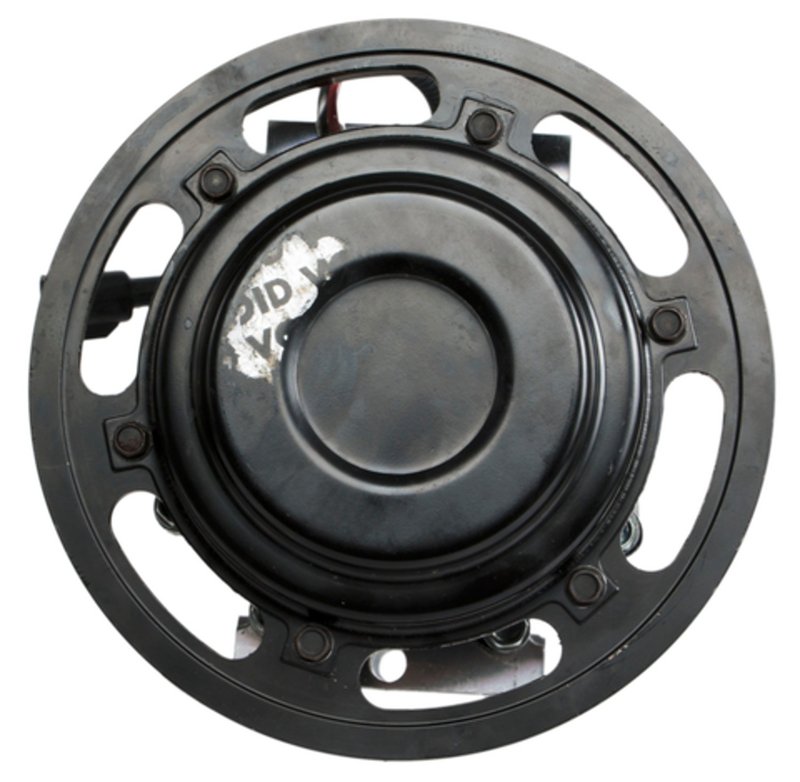

Four Seasons 168530 A/C Compressor

Overview of Four Seasons New Compressor 168530

The Four Seasons New Compressor 168530 is designed for automotive HVAC systems requiring reliable air conditioning performance. Engineered to work with R134a refrigerant and compatible with Pag 100 oil, this A/C compressor supports efficient cooling in vehicles equipped with serpentine belt systems.

• Refrigerant Type: R134a
• Compatible Refrigerant Oil: Pag 100 (oil filled included)
• Pulley Groove Quantity: 8 grooves for serpentine belt
• Terminal Type: Packard connector
• Coil Voltage: 12 volts with 1 wire lead coil clock position
• Compressor Type: Sd7h15 with Wv compressor head
• Mounting Type: Tangent mount with 31 mm mount distance
• Clutch Included: Yes, maximum diameter 6.90625 inches
• Discharge and Suction Ports: O-ring sealed
• O-Rings Included: Green o-ring [24632] and o-ring [214c70]

Four Seasons New Compressor Product Line Details

The Four Seasons New Compressor line offers brand-new, direct replacement compressors designed to meet or exceed OEM specifications. This product line focuses on delivering reliable performance and durability for automotive A/C systems. The 168530 model is part of this line, ensuring a fresh, unused compressor with included oil and clutch components to facilitate a straightforward replacement process.

Technical Description and Features

This Four Seasons A/C compressor 168530 is a Sanden/Sankyo type Sd7h15 compressor, compatible with R134a refrigerant and pre-filled with Pag 100 oil to maintain optimal lubrication. The compressor features an 8-groove pulley designed for serpentine belt systems, with a pulley diameter of approximately 175.26 mm (6.90625 inches). The clutch assembly is included, with a maximum diameter matching the pulley size, ensuring proper engagement and operation. The Packard terminal type and 12-volt coil with a single wire lead simplify electrical connections. The tangent mount style with a 31 mm mounting distance allows for secure installation in compatible vehicle applications. Both discharge and suction ports use O-ring seals to prevent refrigerant leaks, with included O-rings for a proper seal.

Common Applications and Issues Addressed

• Replacement for worn or failed A/C compressors in vehicles using R134a refrigerant
• Resolves issues with compressor clutch failure or slipping
• Addresses loss of cooling performance due to compressor malfunction
• Fixes refrigerant leaks at compressor ports with included O-rings
• Suitable for vehicles requiring a Sanden Sd7h15 compressor with serpentine belt drive

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation, focusing on compressor type Sd7h15 and mounting specifications. The Four Seasons 168530 compressor comes with oil pre-filled and clutch included, but mounting hardware is not included and must be sourced separately. Verify the electrical connector matches the Packard terminal type and confirm the serpentine belt condition and routing. Properly replace O-rings on discharge and suction ports to prevent leaks. Follow manufacturer torque specifications for mounting bolts and clutch adjustments.

Quality Assurance and Warranty

Four Seasons New Compressor products are manufactured to meet industry standards for durability and performance. This compressor is new, not remanufactured, ensuring no prior wear. While specific warranty details are not provided here, Four Seasons typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
