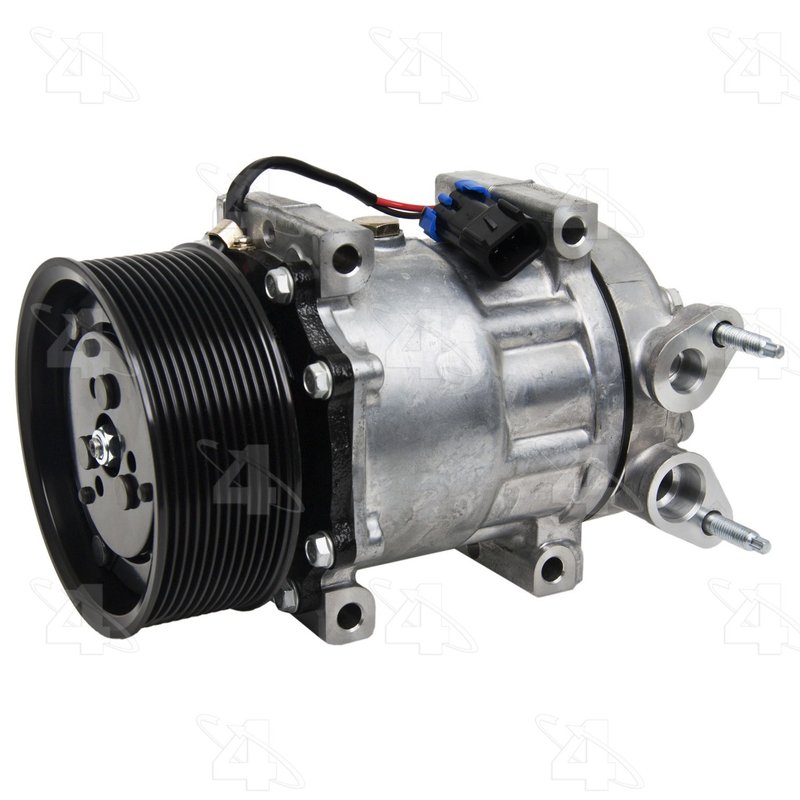

Four Seasons 168533 A/C Compressor

Overview of Four Seasons New Compressor 168533

The Four Seasons New Compressor 168533 is designed for automotive HVAC systems requiring reliable air conditioning performance. Engineered to work with R134a refrigerant and compatible with vehicles using Pag 100 oil, this A/C compressor supports efficient cooling and system longevity.

• Refrigerant Type: R134a
• Compatible Refrigerant Oil: Pag 100
• Oil Filled: Included
• Pulley Groove Quantity: 12
• Terminal Type: Packard
• Distance From Clutch To Mounting Flange: 1.4375 inches
• Clutch Maximum Diameter: 4.953125 inches (clutch included)
• Coil Voltage: 12V with 1 wire lead
• Compressor Type: Sd7h15
• Pulley Belt Type: Serpentine
• Mounting Type: Tangent mount
• Discharge and Suction Port Type: O-ring/gasket

Four Seasons New Compressor Product Line Details

The Four Seasons New Compressor line offers brand-new, direct replacement compressors designed to meet or exceed OEM specifications. The 168533 model is part of this line, providing a fresh, unused compressor unit that includes the clutch and oil necessary for proper operation. This line focuses on delivering reliable HVAC performance for vehicles requiring the Sd7h15 compressor type and R134a refrigerant compatibility.

Technical Description and Features

This Four Seasons A/C compressor features a coil-less design with a 12-volt coil voltage and a single wire lead coil clock position, simplifying electrical connections. The pulley system includes a 12-groove serpentine belt pulley with a diameter of approximately 126 mm (4.953125 inches), designed for smooth belt engagement and efficient power transfer. The clutch assembly is included, with a maximum diameter matching the pulley lip and ridge diameters, ensuring proper fit and function. The compressor mounts using a tangent mount style with a 37 mm mount distance, compatible with vehicles requiring this configuration. Both suction and discharge ports utilize O-ring and gasket seals for leak prevention, with included sealing washer kits identified as [24241] and [24242]. Terminal connections use a Packard type for secure electrical interface.

Common Applications and Problem Resolution

• Replacement for failing or noisy A/C compressors in vehicles using R134a refrigerant
• Restores proper air conditioning cooling performance
• Addresses clutch engagement issues with included clutch assembly
• Resolves refrigerant leaks due to worn seals with included O-ring sealing washers
• Compatible with vehicles requiring Sd7h15 compressor type and tangent mount installation

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model by verifying compressor type Sd7h15 and mounting specifications. The Four Seasons 168533 compressor comes pre-filled with Pag 100 oil, eliminating the need for additional oil during installation. Note that mounting hardware is not included and must be sourced separately. Proper torque specifications should be followed when securing the compressor to avoid damage. Electrical connections use a Packard terminal type; verify connector compatibility before installation.

Quality Assurance and Warranty

The Four Seasons New Compressor 168533 is a new, unused part manufactured to meet industry standards for durability and performance. It includes factory-installed oil and clutch assembly to ensure immediate readiness. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
