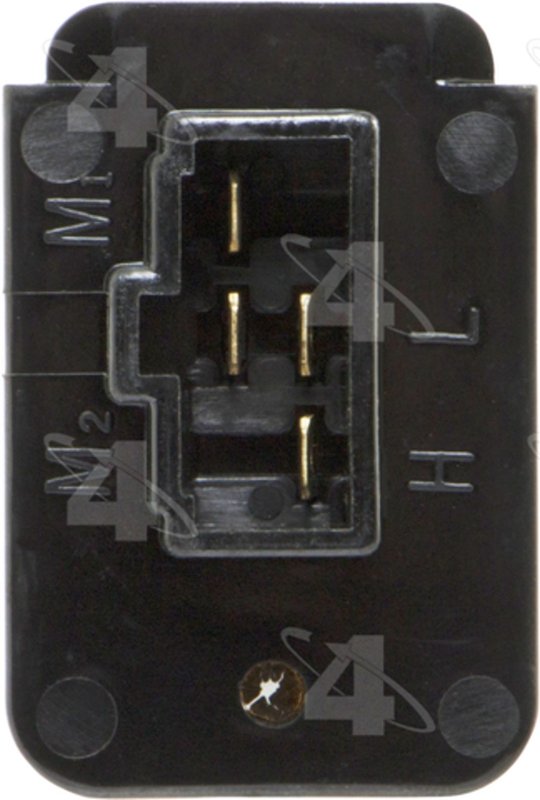

Four Seasons 20091 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20091

The Four Seasons Resistor Block 20091 is designed to provide reliable HVAC blower motor resistance for select Lexus and Toyota vehicles. This resistor block ensures proper blower motor speed control, maintaining comfort in your vehicle's climate system.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 2
• Terminal Type: Spade
• Speed: Fixed #3
• Meets or exceeds OEM specifications

Detailed Product Description

This HVAC blower motor resistor from Four Seasons is engineered to meet or exceed original equipment manufacturer (OEM) standards, ensuring compatibility and durability. Featuring a rectangular female connector with two spade terminals, the resistor block is designed for a fixed speed setting (#3), providing consistent blower motor performance. The part number 20091 corresponds specifically to this resistor block, which is compatible with Lexus and Toyota models including the Camry, Celica, and ES250.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on delivering precise blower motor resistance components that regulate fan speeds in HVAC systems. This line is tailored to maintain proper airflow and temperature control by providing reliable switching functions within the vehicle’s climate control system. The 20091 resistor block is part of this line, offering a fixed speed resistor solution for select Lexus and Toyota vehicles.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Lexus Camry, Toyota Celica, and ES250
• Resolves blower motor fan stuck on a single speed
• Fixes intermittent or no airflow from HVAC vents
• Eliminates overheating issues related to faulty resistor blocks
• Corrects blower motor resistor failures causing inconsistent fan operation

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20091, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. The rectangular female connector and spade terminals should be securely connected to the blower motor wiring harness. Verify the resistor block is mounted in a location with adequate airflow to prevent overheating. Consult the vehicle’s service manual for specific removal and installation procedures for Lexus Camry, Toyota Celica, and ES250 models.

Quality Assurance and Warranty

Four Seasons Resistor Block 20091 is manufactured to meet or exceed OEM quality standards, providing dependable performance and durability. This part undergoes rigorous testing to ensure compatibility and function within the HVAC system. Warranty coverage details should be confirmed with the distributor or retailer, as Four Seasons typically offers limited warranties on their HVAC components.
