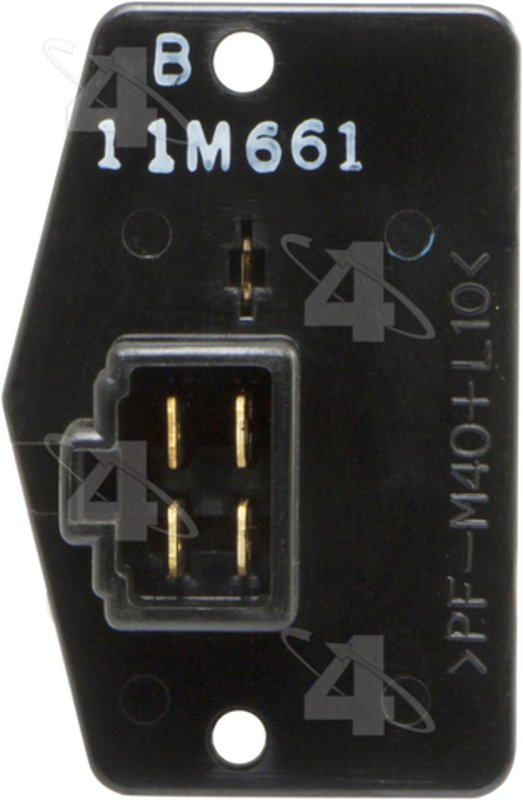

Four Seasons 20096 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20096

The Four Seasons Resistor Block 20096 is designed specifically for Toyota Celica models, providing reliable control of the HVAC blower motor speeds. This HVAC blower motor resistor ensures consistent performance and meets or exceeds OEM standards for durability and fitment.

• Compatible with Toyota Celica HVAC systems
• Four spade terminal connections with female rectangular connector
• Fixed speed #3 resistor block for blower motor control
• Meets or exceeds original equipment manufacturer specifications
• Part number 20096 for precise identification and fit

Product Line Details: Four Seasons Resistor Block

The Four Seasons Resistor Block product line focuses on delivering dependable HVAC blower motor resistors that regulate fan speeds effectively. The 20096 resistor block is part of this line, engineered to provide consistent electrical resistance and maintain proper blower motor function in Toyota Celica vehicles. This line emphasizes compatibility and quality to support HVAC system longevity.

Technical Description and Features

The Four Seasons 20096 resistor block features a female rectangular connector with four spade terminals, designed for secure and stable electrical connections. It operates at a fixed speed #3 setting, controlling the blower motor speed in the HVAC system. This resistor block is a switch-type component that plays a critical role in modulating airflow inside the vehicle cabin by adjusting the blower motor speed as required.

Common Applications and Problem Resolution

• Restores proper blower motor speed control in Toyota Celica HVAC systems
• Resolves issues with blower fan stuck on a single speed or not working at certain speeds
• Eliminates inconsistent airflow caused by faulty resistor blocks
• Prevents overheating of the blower motor by regulating current flow
• Addresses electrical connection problems with the rectangular female connector and spade terminals

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20096, ensure the vehicle is powered off to avoid electrical hazards. Verify the connector gender and shape match the existing wiring harness—female rectangular connector with four spade terminals. Properly seat the resistor block to avoid loose connections that can cause intermittent blower motor operation. Consult the Toyota Celica service manual for specific removal and installation procedures.

Quality Assurance and Warranty

This Four Seasons resistor block meets or exceeds OEM specifications, ensuring reliable performance and fitment. The part number 20096 undergoes quality control testing to maintain consistent electrical resistance and durability. Warranty coverage details should be confirmed with the product provider or manufacturer documentation.
