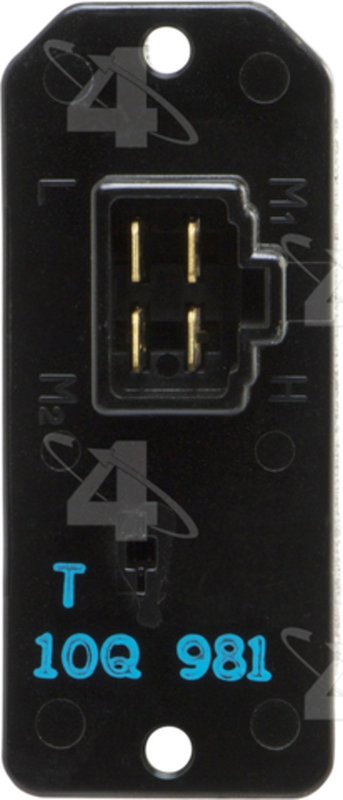

Four Seasons 20101 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20101

The Four Seasons Resistor Block 20101 is designed specifically for Toyota RAV4 models, providing reliable HVAC blower motor resistance. This component ensures proper fan speed regulation within the vehicle's heating and cooling system.

• Compatible with Toyota RAV4 HVAC systems
• Female rectangular connector with 4 spade terminals
• Fixed speed setting at position #3 for consistent blower operation
• Meets or exceeds OEM specifications for quality assurance
• Part number 20101 for precise identification and fitment

Detailed Product Features and Specifications

The Four Seasons Resistor Block 20101 features a female rectangular connector designed for secure and accurate connection to the HVAC blower motor circuit. It includes four spade terminals that facilitate stable electrical contact. The resistor block operates at a fixed speed setting #3, which controls the blower motor's fan speed to maintain optimal airflow. This part meets or exceeds original equipment manufacturer (OEM) standards, ensuring compatibility and durability within the Toyota RAV4 HVAC system.

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on providing essential HVAC components that regulate blower motor speeds. These resistor blocks are engineered to deliver consistent performance and fitment, supporting the proper function of heating and cooling systems in various vehicle models. The 20101 resistor block is part of this line, tailored to meet the specific electrical and mechanical requirements of the Toyota RAV4.

Common Applications and Problem Resolution

• Restores proper blower motor speed control in Toyota RAV4 HVAC systems
• Resolves issues with blower fan stuck on a single speed
• Fixes intermittent or non-functioning blower motor speeds
• Eliminates electrical resistance faults causing HVAC performance problems
• Addresses overheating or failure of previous resistor blocks

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20101, ensure the female rectangular connector aligns correctly with the vehicle’s wiring harness. Verify that all four spade terminals are securely connected to prevent electrical resistance issues. It is recommended to disconnect the vehicle battery before installation to avoid electrical shorts. Proper installation will maintain the fixed speed #3 blower function and overall HVAC system reliability.

Quality Assurance and Warranty Information

This resistor block meets or exceeds OEM specifications, providing assurance of fit, form, and function for Toyota RAV4 applications. Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for specific warranty details related to part number 20101.
