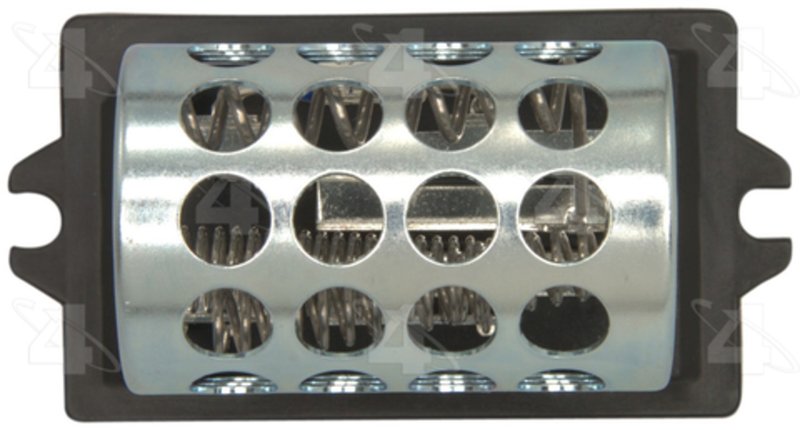

Four Seasons 20113 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20113

The Four Seasons Resistor Block 20113 is designed to regulate blower motor speeds in HVAC systems for select Chrysler, Dodge, and Plymouth vehicles. This HVAC blower motor resistor ensures consistent airflow control, maintaining comfort in your vehicle's cabin.

• Connector Gender: Male
• Connector Shape: Rectangular
• Number of Terminals: 7 / 3
• Speed Setting: Fixed #3
• Type: Switches
• Meets or exceeds OEM specifications

Detailed Product Description

The Four Seasons Resistor Block 20113 is a critical component in the HVAC system, responsible for controlling the blower motor speed by adjusting electrical resistance. Featuring a male rectangular connector with 7 and 3 terminal configurations, this resistor block is engineered to provide a fixed speed setting (#3) for reliable operation. It is designed to meet or exceed original equipment manufacturer (OEM) standards, ensuring compatibility and durability.

This resistor block is part of the Four Seasons Resistor Block product line, which focuses on delivering precise and dependable HVAC blower motor resistors. The line is tailored to provide components that maintain proper blower motor function, helping to regulate airflow and temperature control within the vehicle’s cabin.

Compatible Vehicles and Applications

This resistor block is compatible with various Chrysler, Dodge, and Plymouth models, including the 300M, Breeze, Cirrus, Concorde, Intrepid, LHS, Sebring, and Stratus. It is specifically designed to replace faulty or worn blower motor resistors in these vehicles, restoring proper HVAC blower motor speed control.

Common Issues Addressed by Part Number 20113

• Inconsistent or non-functioning blower motor speeds
• Blower motor stuck on a single speed
• HVAC system failing to regulate airflow properly
• Intermittent blower motor operation
• Electrical resistance failure causing HVAC performance issues

Installation Notes and Tips

• Ensure the vehicle is turned off and the battery is disconnected before installation
• Locate the blower motor resistor block within the HVAC housing
• Disconnect the existing resistor block connector carefully to avoid damage
• Match the 7 / 3 terminal configuration and rectangular male connector for proper fit
• Secure the new resistor block firmly and test blower motor speeds after installation

Quality Assurance and Warranty

The Four Seasons Resistor Block 20113 is manufactured to meet or exceed OEM quality standards, providing reliable performance and durability. This part undergoes rigorous testing to ensure it functions correctly within the specified vehicle models. Warranty coverage details should be confirmed with the product provider or manufacturer.
