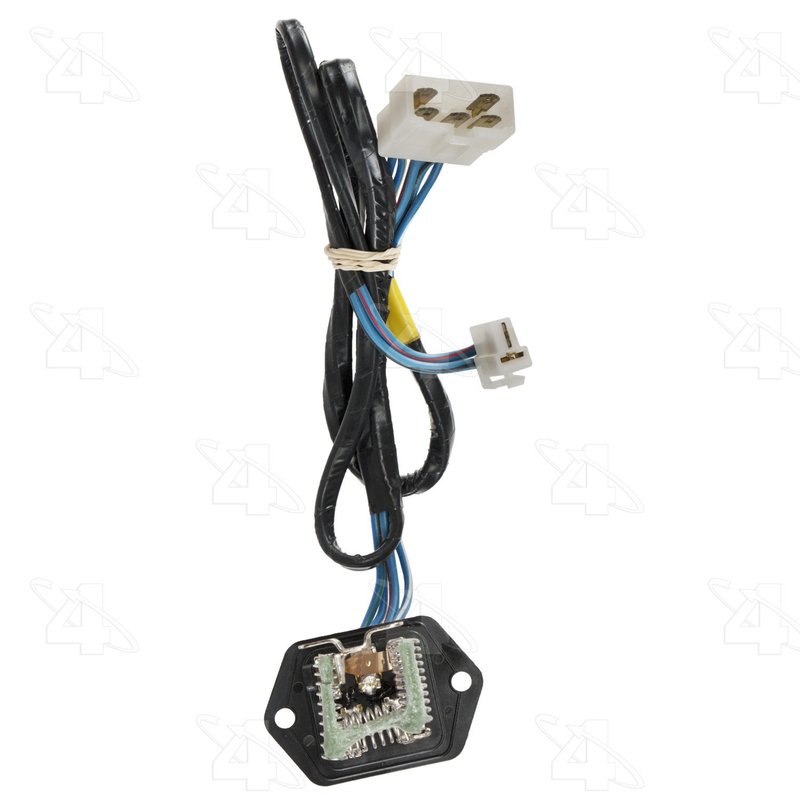

Four Seasons 20135 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Precise Climate Control

The Four Seasons Resistor Block 20135 is designed to ensure consistent HVAC blower motor performance in various vehicle makes and models. This resistor block provides fixed speed control, helping maintain optimal airflow and cabin comfort.

• Connector Gender: Female / male
• Connector Shape: Rectangular
• Number of Terminals: 5 / 2
• Terminal Type: Spade / wire lead
• Speed: Fixed # 3
• Meets or exceeds OEM specifications

Detailed Features of the Four Seasons Resistor Block 20135

The Four Seasons Resistor Block 20135 is a critical component in the HVAC system, responsible for regulating blower motor speeds. Featuring a rectangular connector shape with both female and male connectors, it ensures secure and reliable electrical connections. The resistor block includes five and two terminals with spade and wire lead types, designed for compatibility with specific blower motor circuits. This part operates at a fixed speed setting #3, providing consistent airflow control. Manufactured to meet or exceed OEM standards, it offers dependable performance and durability.

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on delivering precise blower motor speed regulation components. These resistor blocks are engineered to integrate seamlessly with HVAC blower motors, providing fixed or variable speed control depending on the application. The 20135 resistor block is part of this line, designed to maintain consistent blower motor operation and improve climate control system reliability.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in HVAC systems
• Resolves issues with blower fan stuck on a single speed
• Fixes intermittent or no airflow from the HVAC vents
• Eliminates electrical connection problems due to worn terminals
• Improves cabin comfort by stabilizing blower motor operation

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20135, ensure the rectangular connectors align correctly with the vehicle’s wiring harness. Verify the terminal types (spade and wire lead) match the existing connections to avoid electrical issues. It is recommended to disconnect the vehicle battery before installation to prevent shorts. Properly secure the resistor block to avoid vibration damage and ensure optimal airflow control.

Quality Assurance and Warranty Information

This Four Seasons resistor block meets or exceeds OEM specifications, ensuring reliable performance and durability. While specific warranty details may vary, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
