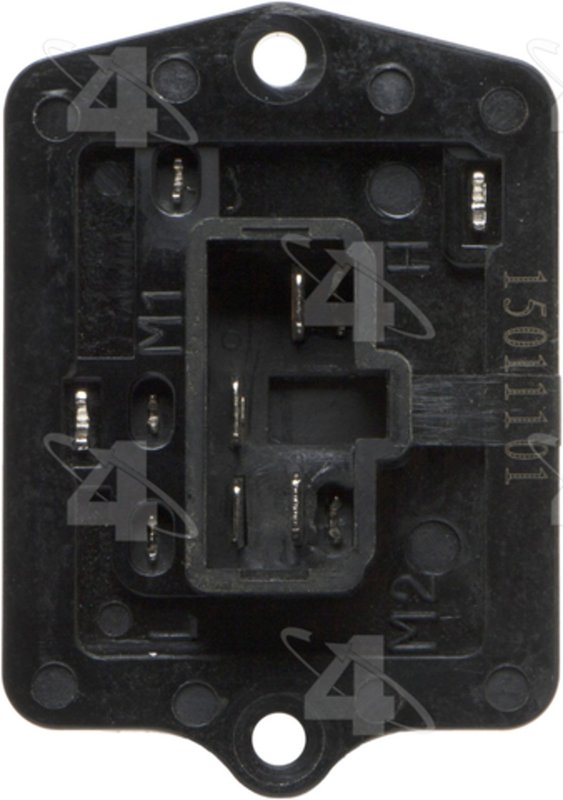

Four Seasons 20146 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20146

The Four Seasons Resistor Block 20146 is designed to regulate blower motor speeds in HVAC systems for select Chevrolet and Suzuki vehicles. This HVAC blower motor resistor ensures consistent airflow control, maintaining comfort inside your vehicle's cabin.

• Compatible with Chevrolet S10 and Suzuki Tracker, Vitara, XL-7 models
• Features a female rectangular connector with 5 spade terminals
• Fixed speed setting at position #3 for reliable blower motor operation
• Meets or exceeds OEM specifications for quality and fit
• Part number 20146 for precise identification and replacement

Detailed Product Features and Specifications

The Four Seasons Resistor Block 20146 is engineered as a fixed speed HVAC blower motor resistor with a female rectangular connector housing five spade terminals. This configuration supports a fixed speed #3 setting, providing stable blower motor performance. The resistor block is designed to meet or exceed original equipment manufacturer (OEM) standards, ensuring compatibility and durability in Chevrolet S10 and Suzuki Tracker, Vitara, and XL-7 models. The spade terminal type facilitates secure electrical connections, reducing the risk of loose contacts or electrical failures.

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on delivering reliable HVAC blower motor resistors that maintain proper fan speed control. This product line is tailored to provide direct replacements that match OEM fit and function, helping to restore HVAC system performance in various vehicle makes and models. The 20146 resistor block is part of this line, offering a dependable solution for specific Chevrolet and Suzuki applications.

Common Applications and Problem Resolution

• Restores blower motor speed control in Chevrolet S10 and Suzuki Tracker, Vitara, XL-7 HVAC systems
• Resolves issues with blower fan stuck on a single speed or not operating at certain speeds
• Eliminates inconsistent airflow caused by faulty resistor blocks
• Prevents overheating and electrical failures in blower motor circuits
• Addresses HVAC blower motor resistor failures that cause no air or limited fan speed options

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet S10 or Suzuki Tracker, Vitara, XL-7 before installation
• Disconnect the battery to prevent electrical shorts during replacement
• Locate the blower motor resistor block within the HVAC housing for access
• Carefully disconnect the female rectangular connector with 5 spade terminals
• Install the new resistor block 20146 securely, ensuring proper terminal connections
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

The Four Seasons Resistor Block 20146 is manufactured to meet or exceed OEM standards, providing reliable performance and fitment. This part undergoes quality control to ensure durability and consistent operation in HVAC blower motor systems. While specific warranty details may vary, Four Seasons products typically include a limited warranty covering defects in materials and workmanship.
