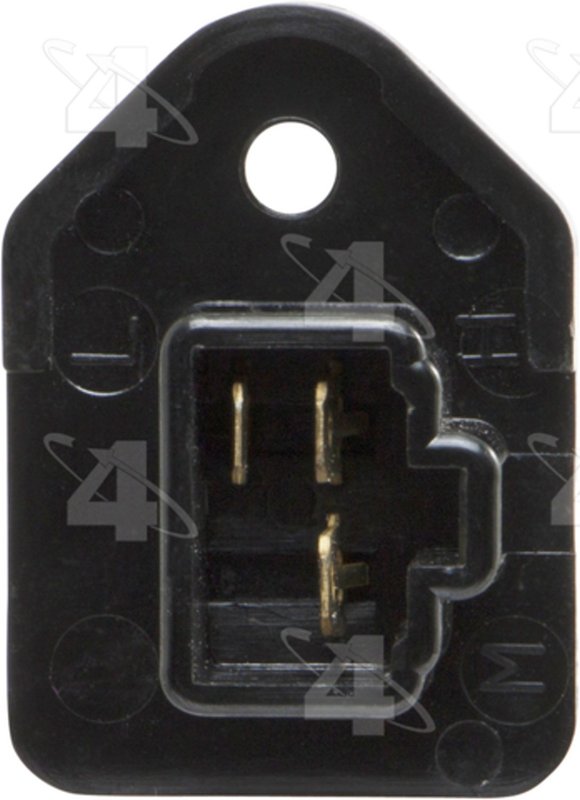

Four Seasons 20167 HVAC Blower Motor Resistor
| Brand | Four Seasons 20167 |
|---|---|
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Description | Resistor Block |
| Meets / Exceeds OEM? | Yes |
| Number of Terminals | 3 |
| Speed | Fixed # 2 |
| Terminal Type | Spade |
| Type | Switches |
| Product line | Resistor Block |
| Fits | Toyota · 9 vehicles |
OE direct replacement. Meets OEM requirements for a straightforward replacement.
Resistor block design. Provides fixed blower speed control in a compact form.
Female rectangular connector. Uses a 3-terminal spade connection for secure attachment.
Cross-references Four Seasons 20167, 984682 and 11120167 for the same application. See all 7.
Four Seasons 20167 Resistor Block
Four Seasons 20167 is a resistor block for HVAC blower motor speed control. It uses a female rectangular connector with 3 spade terminals and is built to meet or exceed OEM requirements for direct replacement service.
Key Features
- Brand: Four Seasons Resistor Block line
- Part number: 20167
- HVAC blower motor resistor for fixed speed #2 operation
- Female rectangular connector with 3 terminals
- Spade terminal type for factory-style electrical connection
- Meets or exceeds OEM specifications
Product Details
The Four Seasons Resistor Block line focuses on HVAC electrical control components used to manage blower motor speed. This 20167 resistor block is a direct-fit style replacement for Toyota Pickup applications and is listed for 1974-1978 Toyota Pickup, as well as 1982-1983 Toyota Pickup without air conditioning and 1984-1985 Toyota Pickup with air conditioning. If you are searching for a Toyota Pickup blower motor resistor, Toyota Pickup HVAC resistor block, or Four Seasons 20167 replacement, this part matches the factory connector style and terminal layout used in those applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Symptoms It May Address
- Blower motor works on only one fan speed
- HVAC fan speed 2 does not operate
- Intermittent cabin airflow control
- Loss of resistor-controlled blower operation
- Electrical resistance failure in the HVAC circuit
Installation Notes
Verify connector shape, terminal count, and vehicle equipment before installation. This resistor block uses a female rectangular connector with 3 spade terminals, so the factory harness must match that layout. Confirm whether the Toyota Pickup is equipped with air conditioning for 1982-1985 applications, since fitment differs by configuration.
Quality Assurance
Four Seasons lists this resistor block as meeting or exceeding OEM requirements, making it a factory-style replacement for HVAC blower motor speed control service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1985 | Toyota | Pickup | N/A | Compatible with vehicles equipped with air conditioning.; Resistor Block |
| 1984 | Toyota | Pickup | N/A | Compatible with vehicles equipped with air conditioning.; Resistor Block |
| 1983 | Toyota | Pickup | N/A | Compatible with models that do not have air conditioning.; Resistor Block |
| 1982 | Toyota | Pickup | N/A | Compatible with models that do not have air conditioning.; Resistor Block |
| 1978 | Toyota | Pickup | N/A | Resistor Block |
| 1977 | Toyota | Pickup | N/A | Resistor Block |
| 1976 | Toyota | Pickup | N/A | Resistor Block |
| 1975 | Toyota | Pickup | N/A | Resistor Block |
| 1974 | Toyota | Pickup | N/A | Resistor Block |
