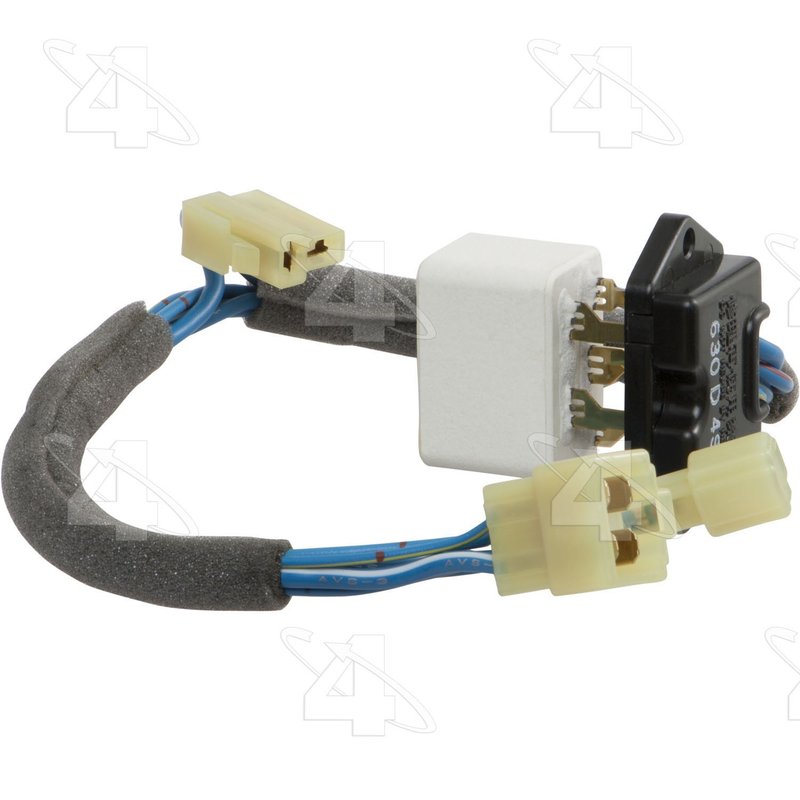

Four Seasons 20177 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20177

The Four Seasons Resistor Block 20177 is designed specifically for Mazda Miata models, providing reliable control of HVAC blower motor speeds. This HVAC blower motor resistor ensures consistent performance by regulating the electrical current to the blower motor, maintaining proper airflow inside your vehicle.

• Compatible with Mazda Miata HVAC systems
• Connector gender configuration: Female / male / male
• Connector shape: Other design for precise fit
• Number of terminals: 4 / 2 / 1 for versatile connection
• Terminal types include spade and wire lead
• Fixed speed setting #4 for stable blower operation
• Meets or exceeds OEM specifications

Detailed Product Description

The Four Seasons Resistor Block 20177 is part of the Resistor Block product line, which focuses on delivering dependable HVAC blower motor resistors that meet or exceed original equipment manufacturer (OEM) standards. This resistor block features a unique connector design with a combination of female and male connectors, ensuring compatibility with the Mazda Miata's HVAC wiring harness. The resistor includes multiple terminals (4, 2, and 1) with spade and wire lead terminal types, allowing for secure and flexible installation. The fixed speed #4 setting provides consistent blower motor speed control, essential for maintaining comfortable cabin temperatures.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Mazda Miata HVAC systems
• Resolves blower motor not working at certain speeds
• Fixes inconsistent airflow or blower motor failure
• Eliminates electrical resistance issues causing HVAC malfunctions
• Prevents overheating of blower motor resistor components

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Verify connector gender and terminal types match existing wiring
• Handle spade and wire lead terminals carefully to avoid damage
• Consult Mazda Miata service manual for resistor block location and removal
• Test blower motor operation after installation to confirm proper function

Quality Assurance and Warranty

The Four Seasons Resistor Block 20177 is manufactured to meet or exceed OEM quality standards, ensuring durability and reliable performance in Mazda Miata HVAC systems. This part undergoes rigorous testing to confirm electrical and mechanical integrity. Warranty coverage details should be confirmed with the product supplier or manufacturer.
