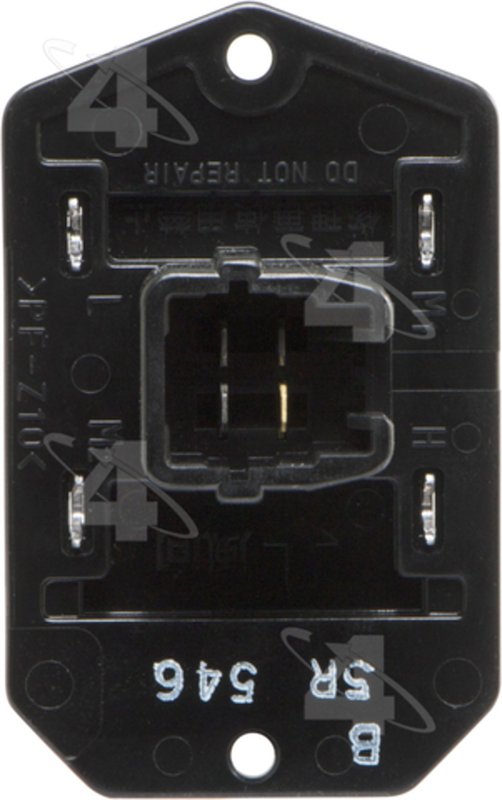

Four Seasons 20209 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20209

The Four Seasons Resistor Block 20209 is designed to regulate blower motor speeds in select Toyota vehicles. This HVAC blower motor resistor is engineered to meet or exceed OEM standards, ensuring reliable performance for your Toyota Avalon, Camry, Sienna, or Solara.

• Compatible with Toyota Avalon, Camry, Sienna, and Solara models
• Four spade terminals with a female square connector
• Fixed speed setting at position 3 for consistent blower control
• Meets or exceeds original equipment manufacturer specifications
• Part number 20209 for precise identification and fitment

Product Features and Specifications

This resistor block features a female connector with a square shape, designed for secure and accurate connection within the HVAC system. It includes four spade-type terminals that provide stable electrical contact. The fixed speed #3 setting controls the blower motor speed reliably, contributing to consistent cabin airflow. The Four Seasons Resistor Block 20209 is part of the Resistor Block product line, which focuses on delivering dependable HVAC blower motor resistors that maintain proper fan speed regulation and system functionality.

Application and Common Issues Addressed

This HVAC blower motor resistor is compatible with Toyota Avalon, Camry, Sienna, and Solara models, making it a suitable replacement for vehicles experiencing blower motor speed control problems. It is commonly used to resolve issues such as:

• Blower motor stuck on a single speed
• Intermittent or no blower motor operation at certain speeds
• Inconsistent airflow from the HVAC system
• Electrical resistance failure causing fan speed malfunctions

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20209, ensure the vehicle’s ignition is off and the HVAC system is disconnected to prevent electrical shock. Verify the connector gender and shape match the existing wiring harness—this part features a female square connector with four spade terminals. Properly seat the resistor block to avoid loose connections that could affect blower motor performance. Consult the vehicle’s service manual for specific removal and installation procedures related to the Toyota Avalon, Camry, Sienna, or Solara.

Quality Assurance and Warranty

The Four Seasons Resistor Block 20209 is manufactured to meet or exceed OEM quality standards, providing reliable operation within the HVAC system. This part undergoes rigorous testing to ensure durability and consistent performance. While specific warranty details may vary, Four Seasons typically offers coverage against defects in materials and workmanship, supporting long-term use in Toyota vehicles.
