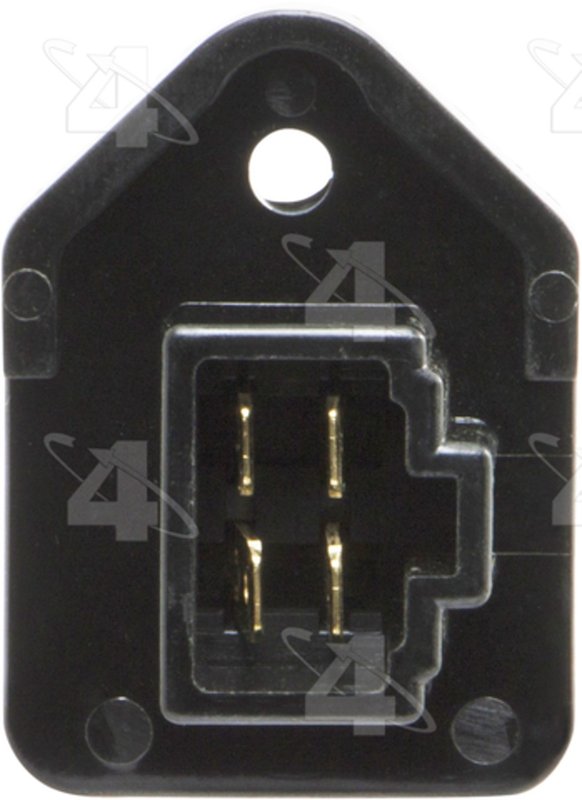

Four Seasons 20227 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20227

The Four Seasons Resistor Block 20227 is designed specifically for Toyota Van HVAC systems. This HVAC blower motor resistor ensures proper fan speed control and reliable operation within your vehicle's heating and cooling system.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Terminal Type: Spade
• Speed: Fixed #3
• Meets or Exceeds OEM Standards
• Compatible with Toyota Van models

Detailed Product Description

The Four Seasons Resistor Block 20227 is a fixed speed HVAC blower motor resistor featuring a rectangular female connector with four spade terminals. This component is engineered to meet or exceed original equipment manufacturer (OEM) specifications, ensuring consistent performance and durability. The resistor block controls the blower motor speed by regulating electrical current, specifically providing a fixed speed setting labeled as #3. Its design supports reliable operation within the HVAC system of Toyota Van vehicles, maintaining proper airflow and temperature control.

About the Four Seasons Resistor Block Product Line

The Resistor Block line from Four Seasons focuses on delivering precise electrical resistance components for HVAC blower motor systems. These resistor blocks are designed to integrate seamlessly with vehicle HVAC assemblies, providing stable blower motor speed control. The 20227 resistor block is part of this line, offering a fixed speed solution with a robust connector and terminal design to ensure secure electrical connections.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Toyota Van HVAC systems
• Resolves blower motor stuck on a single speed or not operating at certain speeds
• Fixes intermittent blower motor operation due to faulty resistor block
• Eliminates overheating or electrical resistance failures in the blower circuit
• Improves HVAC system reliability and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Disconnect the battery to prevent electrical shorts
• Locate the blower motor resistor block within the HVAC housing of the Toyota Van
• Remove the old resistor block by disconnecting the rectangular female connector and spade terminals
• Install the Four Seasons 20227 resistor block by securing the connector and terminals firmly
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

The Four Seasons Resistor Block 20227 is manufactured to meet or exceed OEM quality standards, ensuring dependable performance in Toyota Van HVAC systems. This part undergoes rigorous testing to verify electrical and mechanical integrity. While specific warranty details may vary, Four Seasons typically offers coverage against defects in materials and workmanship to support long-term reliability.
