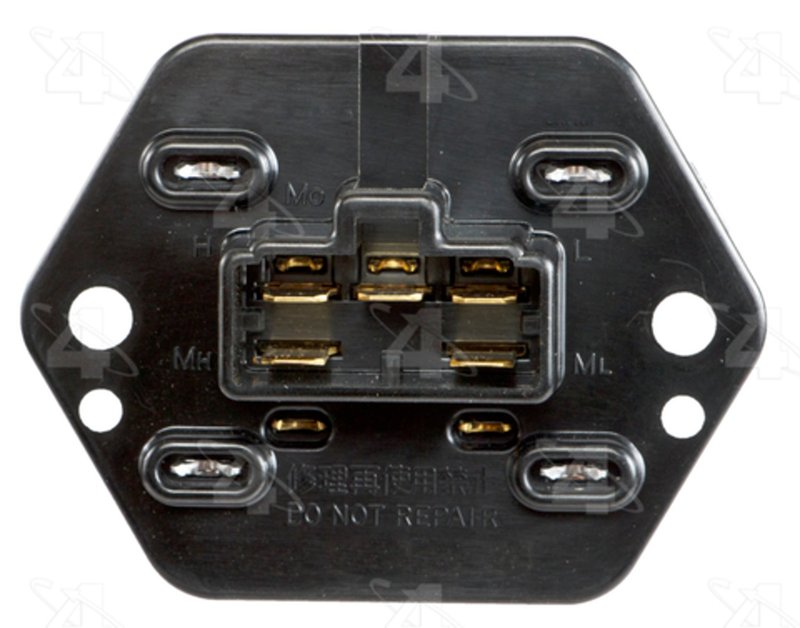

Four Seasons 20232 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20232

The Four Seasons Resistor Block 20232 is designed specifically for HVAC blower motor systems in Mazda 626 models. This HVAC blower motor resistor ensures proper fan speed control and reliable operation within your vehicle's heating and cooling system.

• Compatible with Mazda 626 HVAC blower motor systems
• Female rectangular connector with 5 spade terminals
• Fixed speed setting #4 for consistent blower motor performance
• Meets or exceeds OEM specifications for durability and fit
• Part number 20232 for precise identification and replacement

Detailed Product Description and Attributes

This Four Seasons HVAC blower motor resistor block features a female rectangular connector designed to fit securely with the vehicle’s wiring harness. It includes five spade terminals that provide stable electrical connections, supporting the fixed speed #4 setting for the blower motor. The resistor block is engineered to meet or exceed original equipment manufacturer (OEM) standards, ensuring compatibility and reliable function in the Mazda 626 HVAC system. The part number 20232 identifies this specific resistor block within the Four Seasons product line.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block line focuses on providing replacement components that regulate blower motor speeds in automotive HVAC systems. These resistor blocks are designed to maintain consistent airflow and temperature control by managing electrical resistance within the blower motor circuit. The 20232 resistor block is part of this line, offering a direct replacement solution for Mazda 626 vehicles requiring a fixed speed #4 resistor.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Mazda 626 HVAC systems
• Resolves blower motor stuck on a single speed or not operating at certain speeds
• Fixes intermittent or no airflow from the HVAC vents
• Eliminates electrical resistance failures causing blower motor malfunction
• Addresses overheating or burning smell related to faulty resistor blocks

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to avoid electrical shock
• Locate the blower motor resistor block near the HVAC blower motor assembly
• Disconnect the female rectangular connector carefully to avoid terminal damage
• Replace the resistor block with part number 20232, matching the 5 spade terminal configuration
• Verify secure connection and test blower motor speeds after installation

Quality Assurance and Warranty

The Four Seasons Resistor Block 20232 is manufactured to meet or exceed OEM quality standards, providing reliable performance and fitment for Mazda 626 vehicles. This part undergoes rigorous testing to ensure durability and consistent operation within the HVAC system. Warranty coverage details are provided by Four Seasons and typically include protection against defects in materials and workmanship.
