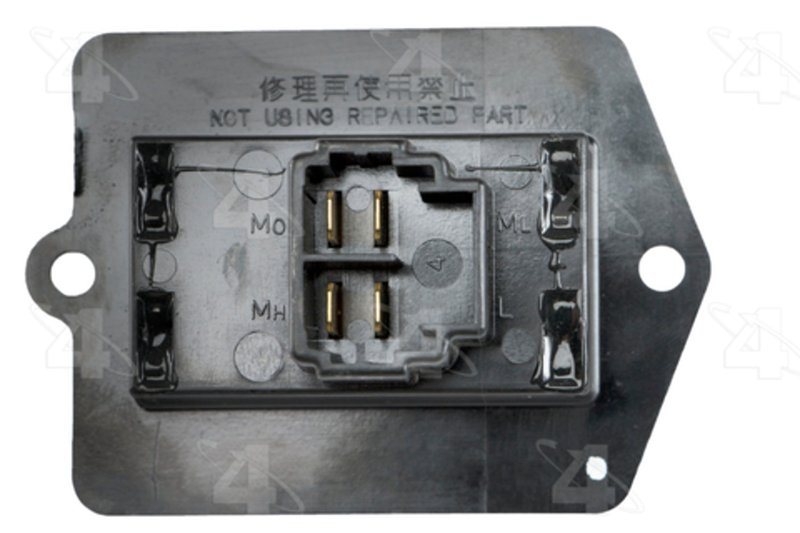

Four Seasons 20236 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20236

The Four Seasons Resistor Block 20236 is designed specifically for HVAC blower motor systems in select Mazda vehicles. This HVAC blower motor resistor ensures proper fan speed control and reliable operation for your Mazda 626 and MX-6 models.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Terminal Type: Spade
• Speed: Fixed #3
• Meets or Exceeds OEM Standards

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on providing durable and precise HVAC blower motor resistors that maintain consistent fan speed regulation. This product line is engineered to meet or exceed original equipment manufacturer specifications, ensuring compatibility and performance for vehicles like the Mazda 626 and MX-6. The 20236 resistor block is part of this line, offering a fixed speed setting and reliable electrical connections through its rectangular female connector and spade terminals.

Detailed Product Description

The Four Seasons 20236 resistor block is a critical component in the HVAC system, controlling the blower motor speed by regulating electrical current. Featuring a rectangular female connector with four spade terminals, this resistor block is designed for straightforward installation and secure connection. The fixed #3 speed setting allows for consistent airflow control within the HVAC system. Built to meet or exceed OEM standards, this resistor block supports the proper functioning of the blower motor in Mazda 626 and MX-6 models, helping maintain cabin comfort and system efficiency.

Common Applications and Issues Resolved

• Restores blower motor speed control in Mazda 626 and MX-6 HVAC systems
• Eliminates blower motor fan stuck on a single speed
• Resolves intermittent or no airflow from the HVAC blower
• Fixes overheating or failure of the blower motor resistor
• Addresses electrical connection issues due to worn terminals or connectors

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Disconnect the battery to prevent electrical shorts
• Locate the blower motor resistor in the HVAC housing under the dashboard
• Carefully disconnect the rectangular female connector from the old resistor block
• Install the new resistor block with the four spade terminals securely connected
• Verify proper fitment for Mazda 626 and MX-6 models before installation

Quality Assurance and Warranty

The Four Seasons Resistor Block 20236 is manufactured to meet or exceed OEM quality standards, ensuring reliable performance and durability. This part undergoes rigorous testing to confirm electrical and mechanical integrity. While specific warranty details may vary, Four Seasons products typically include a limited warranty against defects in materials and workmanship, providing confidence in the product's longevity and function.
