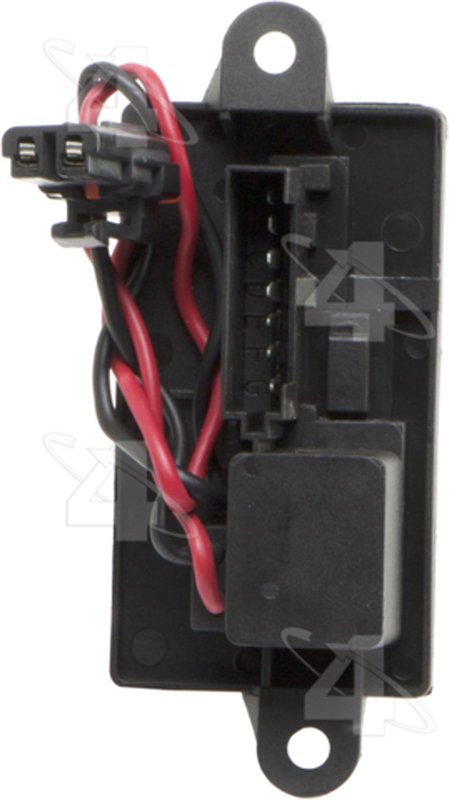

Four Seasons 20293 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20293

The Four Seasons Resistor Block 20293 is designed to regulate blower motor speeds in HVAC systems for select GM vehicles. This resistor block ensures consistent performance and is engineered to meet or exceed OEM specifications for reliable operation in Cadillac, Chevrolet, and GMC models.

• Connector Gender: Female / male
• Connector Shape: Rectangular
• Number of Terminals: 7 / 2
• Terminal Type: Pin / wire lead
• Speed Setting: Fixed #4
• Type: Switches
• Meets or exceeds OEM standards

Detailed Product Description

The Four Seasons Resistor Block 20293 is a critical component in the HVAC blower motor circuit, controlling the electrical resistance to regulate fan speeds. Featuring a rectangular connector shape with both female and male connectors, this resistor block is equipped with 7 and 2 terminals respectively, using pin and wire lead terminal types for secure connections. The fixed #4 speed setting is designed to provide consistent airflow control. This part is compatible with a range of GM vehicles including Cadillac Escalade, Chevrolet Silverado, and GMC Sierra models.

The Resistor Block product line from Four Seasons focuses on delivering reliable HVAC electrical components that maintain proper blower motor function. This resistor block is engineered to meet or exceed OEM requirements, ensuring durability and fitment accuracy for your vehicle’s heating and cooling system.

Compatible Vehicles and Applications

• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche 1500, Avalanche 2500, Silverado 1500, Silverado 2500, Silverado 3500, Suburban 1500, Suburban 2500, Tahoe
• GMC Sierra 1500, Sierra 2500, Sierra 3500, Yukon, Yukon XL 1500, Yukon XL 2500, C1500, Cheyenne

Common Issues Resolved by This Resistor Block

• Inconsistent blower motor speeds or fan stuck on one speed
• HVAC blower motor not responding to speed control settings
• Intermittent blower motor operation or failure to start
• Electrical resistance faults causing overheating or blower motor damage
• Replacement for worn or damaged resistor blocks in HVAC systems

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to avoid electrical shock
• Verify connector orientation matches the rectangular female/male connectors
• Check for corrosion or damage on terminals before connecting
• Securely fasten all terminals to prevent loose connections
• Consult vehicle service manual for specific removal and installation procedures

Quality Assurance and Warranty

The Four Seasons Resistor Block 20293 is manufactured to meet or exceed OEM standards, providing dependable performance for your HVAC system. This part undergoes rigorous quality control to ensure fitment and function. Warranty coverage details should be confirmed with the product supplier or manufacturer documentation.
