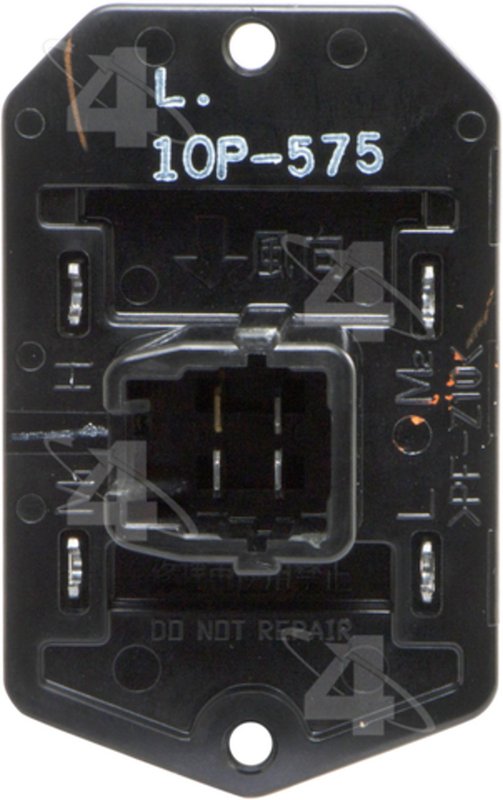

Four Seasons 20307 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20307

The Four Seasons Resistor Block 20307 is designed specifically for Toyota Corolla and Matrix models. This HVAC blower motor resistor ensures proper fan speed control and reliable operation within your vehicle's heating and cooling system.

• Compatible with Toyota Corolla and Matrix
• Part Number: 20307
• Connector Gender: Female
• Connector Shape: Square
• Number of Terminals: 4
• Terminal Type: Spade
• Speed Setting: Fixed #3
• Meets or exceeds OEM specifications

Product Line Details: Four Seasons Resistor Block

The Four Seasons Resistor Block product line focuses on delivering reliable HVAC blower motor resistors that meet or exceed original equipment manufacturer standards. The 20307 resistor block is part of this line, engineered to provide consistent blower motor speed regulation and durability for Toyota vehicles.

Technical Description and Features

This HVAC blower motor resistor features a female square connector with four spade terminals, designed for secure and precise electrical connections. The fixed #3 speed setting controls the blower motor speed accurately, ensuring optimal airflow through the HVAC system. Constructed to meet or exceed OEM requirements, the Four Seasons 20307 resistor block offers dependable performance and compatibility with Toyota Corolla and Matrix models.

Common Applications and Problem Resolution

• Restores proper blower motor speed control in Toyota Corolla and Matrix
• Resolves issues with blower fan stuck on a single speed
• Fixes blower motor not operating at certain speed settings
• Eliminates inconsistent or intermittent blower motor function
• Addresses electrical connection problems related to resistor block failure

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20307, ensure the female square connector aligns correctly with the vehicle’s wiring harness. Verify that all four spade terminals are securely connected to prevent electrical faults. It is recommended to disconnect the vehicle battery before installation to avoid electrical shorts. Proper installation will restore HVAC blower motor functionality and maintain system reliability.

Quality Assurance and Warranty

The Four Seasons Resistor Block 20307 is manufactured to meet or exceed OEM standards, ensuring compatibility and durability. This part undergoes rigorous quality control to maintain consistent performance. Please refer to Four Seasons’ warranty policy for specific coverage details.
