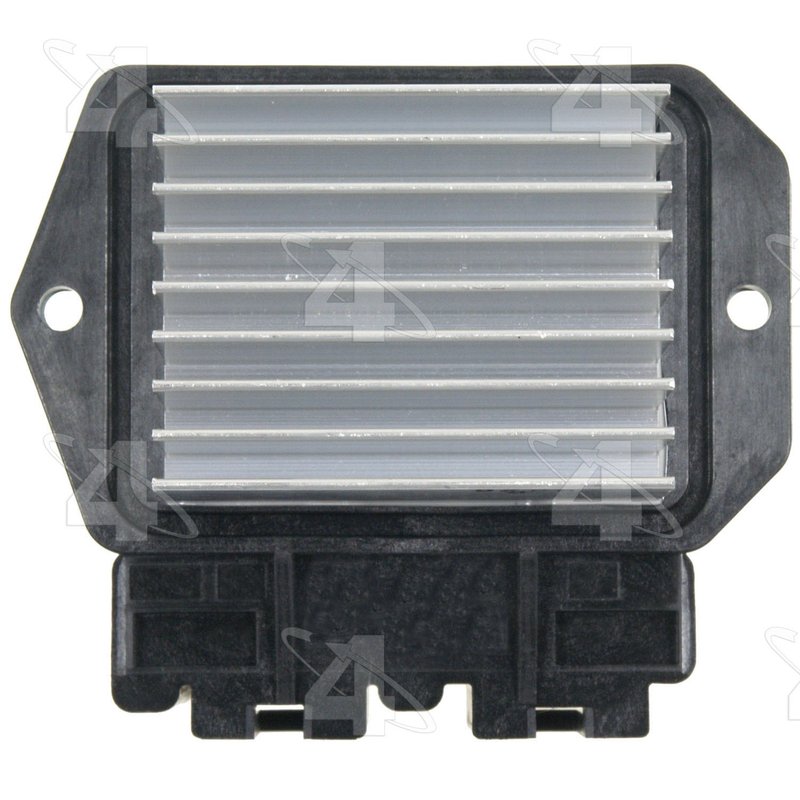

Four Seasons 20386 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20386

The Four Seasons Resistor Block 20386 is designed specifically for Toyota Prius models, providing reliable control of HVAC blower motor speeds. This resistor block features a female/female rectangular connector and supports variable speed settings, ensuring precise airflow regulation within your vehicle's climate control system.

• Connector Gender: Female / female
• Connector Shape: Rectangular
• Number of Terminals: 3 / 2
• Speed Type: Variable
• Part Type: HVAC Blower Motor Resistor

Detailed Product Description

The Four Seasons Resistor Block 20386 is an essential component in the HVAC system of Toyota Prius vehicles. It functions as a blower motor resistor, regulating the electrical current to the blower motor and enabling variable fan speeds. The rectangular female/female connector design with 3 or 2 terminals ensures compatibility and secure connection within the HVAC assembly. This resistor block is part of the Four Seasons Resistor Block product line, which focuses on delivering precise switching components for HVAC blower motors, maintaining consistent performance and durability.

Applications and Problem Resolution

This resistor block is compatible with Toyota Prius models and is used to address common HVAC blower motor issues, including:

• Inconsistent or non-functioning blower motor speeds
• Blower motor stuck on a single speed setting
• Intermittent blower motor operation
• HVAC fan not responding to speed control adjustments
• Electrical resistance failure causing blower motor malfunction

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Verify connector orientation matches the female/female rectangular design
• Check the number of terminals (3 or 2) for proper fitment
• Inspect the blower motor and related wiring for damage before installing the resistor block
• Consult the Toyota Prius service manual for detailed installation procedures

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20386 to meet OEM specifications for Toyota Prius HVAC systems. The part undergoes rigorous quality control to ensure reliable performance and durability. While specific warranty details may vary, Four Seasons typically offers coverage against manufacturing defects to provide confidence in the product's longevity and function.
