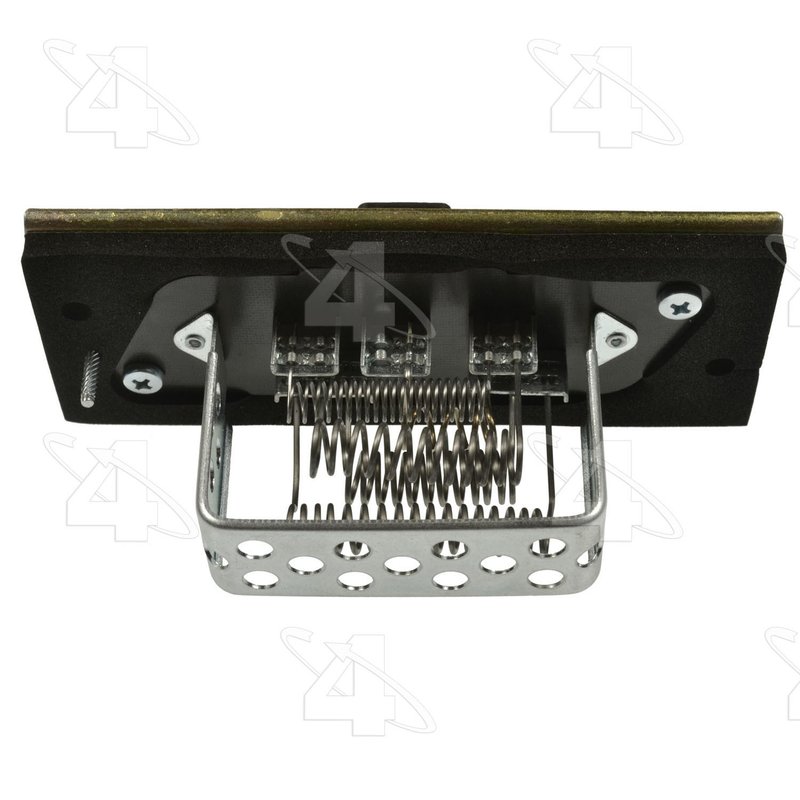

Four Seasons 20394 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20394

The Four Seasons Resistor Block 20394 is designed specifically for HVAC blower motor systems in Dodge Dakota and Durango models. This component ensures proper control of blower motor speeds, contributing to effective climate control within the vehicle cabin.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 5
• Speed Setting: Fixed #4
• Type: Switches

Details About the Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on providing reliable resistor blocks that regulate blower motor speeds in automotive HVAC systems. The 20394 resistor block is part of this line, engineered to maintain consistent electrical resistance and ensure stable blower motor operation in compatible Dodge vehicles.

Product Description and Functionality

The Four Seasons 20394 resistor block features a female rectangular connector with five terminals, designed to interface seamlessly with the blower motor wiring harness. The fixed speed #4 setting allows for precise control of the blower motor's airflow speed, contributing to optimal HVAC performance. This resistor block acts as a switch to regulate current flow, enabling the blower motor to operate at designated speeds without interruption.

Common Applications and Issues Addressed

• Restores blower motor speed control in Dodge Dakota and Durango HVAC systems
• Resolves issues with blower motor stuck on a single speed or not operating at all
• Fixes intermittent blower motor function caused by faulty resistor blocks
• Eliminates overheating or electrical resistance problems in blower motor circuits
• Improves overall HVAC system reliability and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to prevent electrical shock
• Verify connector orientation matches the female rectangular shape for proper fit
• Check that all five terminals are securely connected to avoid loose contacts
• Consult vehicle service manual for specific blower motor resistor replacement procedures on Dodge Dakota and Durango
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Four Seasons manufactures the 20394 resistor block to meet OEM specifications for durability and performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Using this resistor block helps maintain the integrity of the HVAC blower motor system in Dodge Dakota and Durango vehicles.
