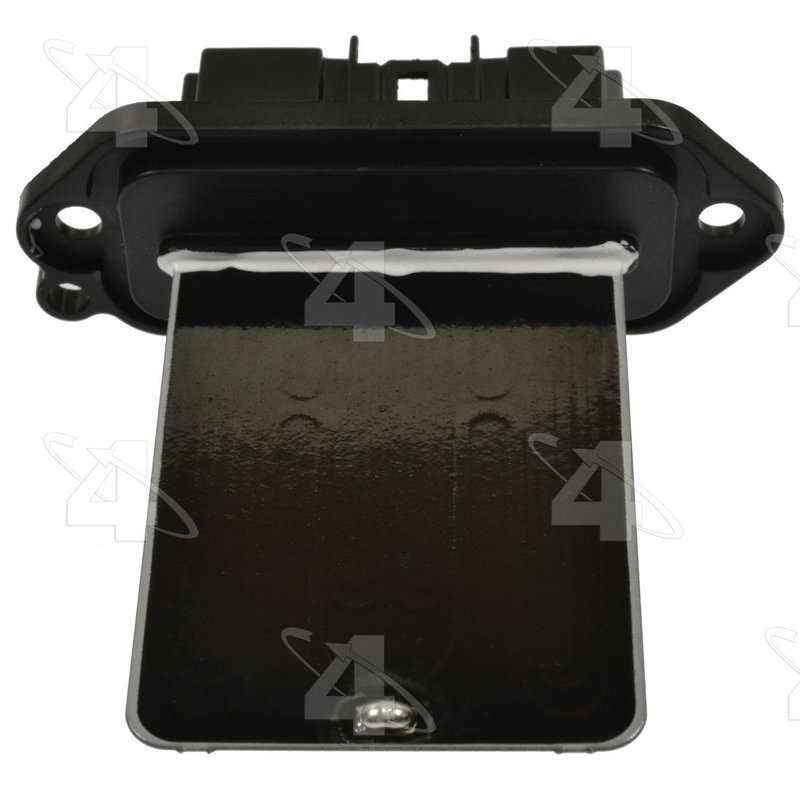

Four Seasons 20407 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20407

The Four Seasons Resistor Block 20407 is designed specifically for HVAC blower motor systems in Mazda vehicles, including the Mazda 3 and Mazda 3 Sport models. This HVAC blower motor resistor ensures proper fan speed control and reliable operation of your vehicle's heating and cooling system.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Type: Switches

Detailed Product Description

This resistor block from Four Seasons is engineered to regulate the blower motor speed by providing a fixed resistance at speed setting number 3. Featuring a female rectangular connector with four terminals, it integrates seamlessly with the HVAC system of compatible Mazda 3 and Mazda 3 Sport models. The resistor block plays a critical role in controlling the electrical current to the blower motor, ensuring consistent airflow and temperature control inside the vehicle cabin.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on delivering reliable HVAC components that maintain proper blower motor function. This line includes resistor blocks designed to match specific vehicle requirements, such as connector type and terminal count, to ensure compatibility and ease of installation. The 20407 resistor block is part of this line, tailored for fixed speed control applications in select Mazda models.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Mazda 3 and 3 Sport HVAC systems
• Resolves blower motor fan stuck on a single speed
• Fixes intermittent or no airflow from the HVAC vents
• Eliminates overheating issues caused by faulty resistor blocks
• Prevents blower motor resistor failure symptoms such as inconsistent fan operation

Installation Notes and Tips

• Ensure vehicle compatibility with Mazda 3 or Mazda 3 Sport before installation
• Disconnect the battery prior to replacing the resistor block to avoid electrical shorts
• Locate the blower motor resistor block near the blower motor housing for replacement
• Verify the connector gender and shape match the existing component for proper fit
• Handle the resistor block carefully to avoid damage to terminals during installation

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20407 to meet OEM specifications for durability and performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. This ensures dependable operation and peace of mind when replacing your Mazda 3 or 3 Sport HVAC blower motor resistor.
