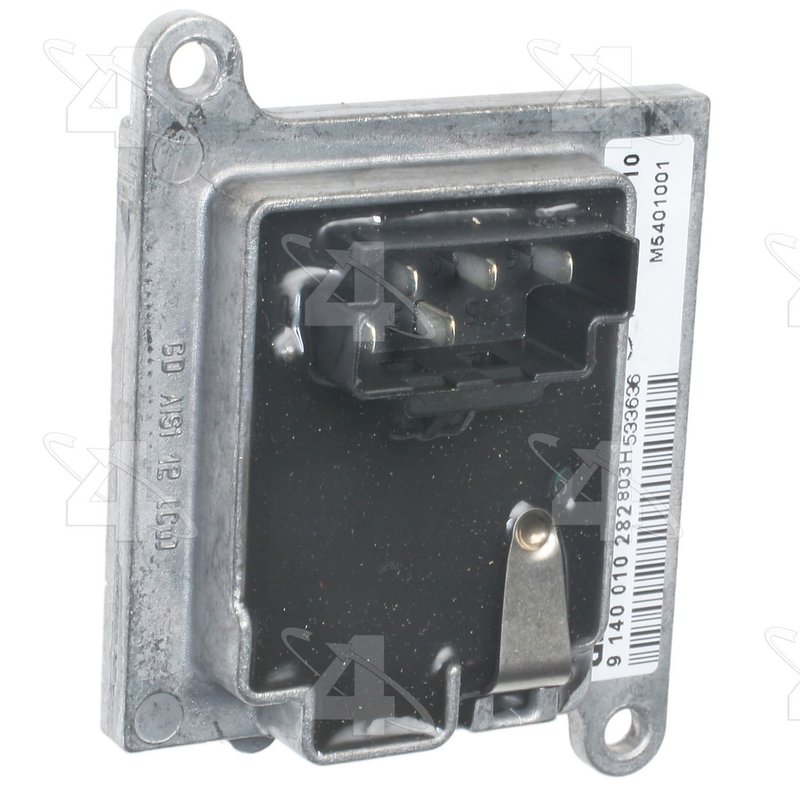

Four Seasons 20409 HVAC Blower Motor Resistor - Rear

Overview of Four Seasons Resistor Block 20409

The Four Seasons Resistor Block 20409 is designed to regulate the variable speed of HVAC blower motors in select Mercedes-Benz models. This essential component ensures proper fan speed control for optimal climate comfort inside your vehicle.

• Connector Gender: Female
• Connector Shape: Other design
• Number of Terminals: 5
• Speed Type: Variable
• Part Type: HVAC Blower Motor Resistor

Features and Specifications

This resistor block features a 5-terminal design with a female connector, tailored for precise speed regulation of the HVAC blower motor. The variable speed capability allows smooth adjustment of airflow within the cabin. Its unique connector shape ensures compatibility with the specified Mercedes-Benz models, providing reliable electrical connections.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block line focuses on delivering durable and accurate blower motor resistors that maintain consistent HVAC performance. This product line is engineered to meet OEM specifications, ensuring proper fit and function in vehicles requiring variable speed control for their blower motors.

Compatible Mercedes-Benz Models

This resistor block is compatible with a range of Mercedes-Benz vehicles, including ML55 AMG, ML63 AMG, ML320, ML350, ML430, ML500, S55 AMG, S63 AMG, S65 AMG, S320, S350, S400, S420, S430, S450, S500, S550, and S600 models. The part number 20409 is specifically designed to fit these models, ensuring seamless integration with the existing HVAC system.

Common Issues Addressed by Part Number 20409

• Inconsistent blower motor speeds or failure to adjust fan speed
• HVAC blower motor stuck on one speed setting
• Intermittent blower motor operation
• Overheating or electrical resistance issues in the blower motor circuit
• Loss of variable speed control in the HVAC system

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20409, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical hazards. Verify the connector gender and shape match the existing wiring harness. Properly seat the 5-terminal connector to avoid loose connections that could affect blower motor performance. Consult the vehicle’s service manual for specific removal and installation procedures related to the HVAC blower motor resistor.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20409 to meet or exceed OEM standards for durability and performance. This part undergoes rigorous quality control to ensure reliable operation within the HVAC system. Warranty coverage details should be confirmed with the product documentation or supplier, as it may vary by region or distributor.
