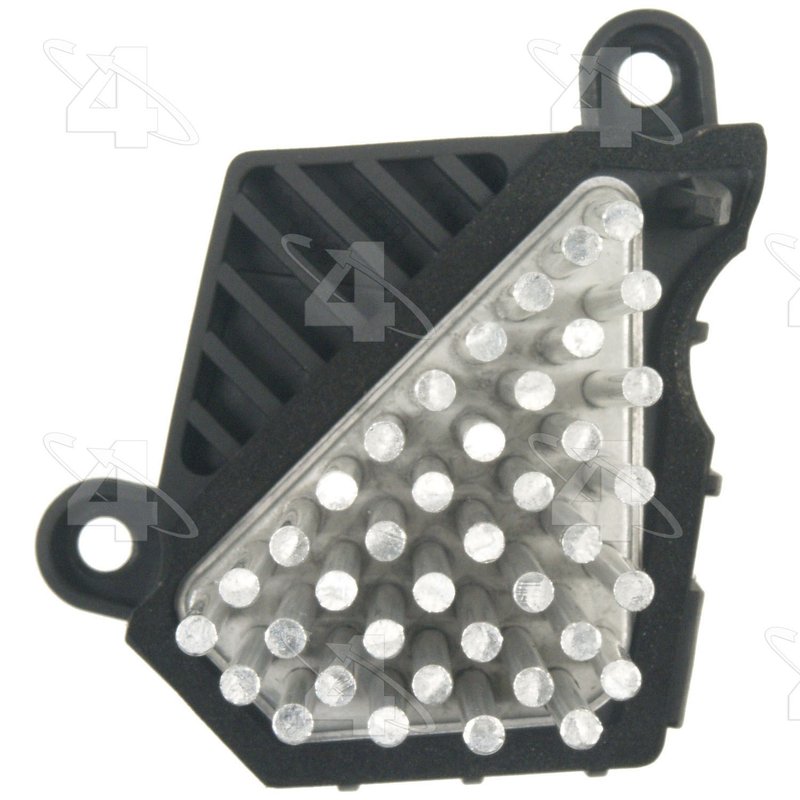

Four Seasons 20416 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for BMW Models

The Four Seasons Resistor Block 20416 is designed to provide consistent variable speed control for your vehicle's HVAC blower motor. Engineered specifically for select BMW models, this resistor block ensures proper fan speed regulation and optimal climate control performance.

• Compatible with BMW 318i, 318is, 320i, 323i, 323is, 325i, 325is, 328i, 328is, and M3 models
• Female connector with a unique design for secure fitment
• Five-terminal configuration for precise speed control
• Variable speed resistor type for smooth blower motor operation
• Part number 20416 for accurate identification and replacement

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block line focuses on delivering dependable HVAC components that regulate blower motor speeds effectively. This resistor block is part of that line, offering a switch-type resistor with a female connector and a five-terminal setup. It is engineered to meet the specific electrical and mechanical requirements of BMW vehicles, ensuring compatibility and reliable performance.

Product Details and Specifications

This HVAC blower motor resistor features a female connector with a distinct shape designed to fit securely within the HVAC system of compatible BMW models. The resistor block includes five terminals, allowing for variable speed control of the blower motor. This design supports smooth transitions between fan speeds, contributing to consistent cabin temperature regulation. The resistor type functions as a switch, managing electrical current to the blower motor effectively.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in BMW 3 Series models
• Resolves issues with blower fan stuck on one speed or not working at certain speeds
• Eliminates inconsistent or intermittent HVAC blower operation
• Addresses electrical resistance failures causing blower motor malfunction
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20416, ensure the vehicle is powered off and the HVAC system is disconnected to avoid electrical hazards. Verify the connector gender and shape match the existing wiring harness. Properly align the five terminals to the corresponding slots to maintain secure electrical contact. It is recommended to inspect the blower motor and related components for wear or damage during installation.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20416 to meet OEM standards for fit and function. This part undergoes quality control testing to ensure durability and reliable performance in BMW HVAC systems. While specific warranty details are not provided here, Four Seasons typically offers coverage against manufacturing defects. Consult product documentation or the manufacturer for exact warranty terms.
