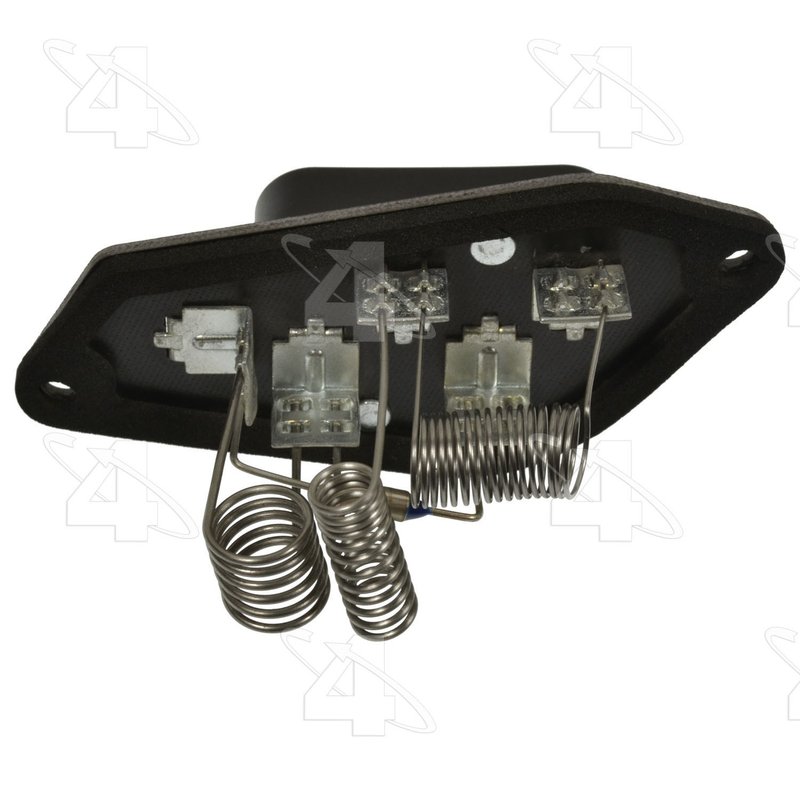

Four Seasons 20420 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20420

The Four Seasons Resistor Block 20420 is designed to regulate blower motor speeds in HVAC systems for select Saturn vehicles. This component ensures consistent airflow control by providing a fixed speed setting, making it a reliable choice for maintaining cabin comfort.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Type: Switches

Features of the Four Seasons Resistor Block

The Resistor Block from Four Seasons is engineered to deliver precise blower motor resistance for HVAC systems. Featuring a female rectangular connector with four terminals, this resistor block supports a fixed speed setting (#3), which helps maintain consistent blower motor operation. The design aligns with the electrical requirements of compatible Saturn models, ensuring proper fit and function.

Compatibility with Saturn Models

This HVAC blower motor resistor block is compatible with a range of Saturn vehicles, including the SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. The part number 20420 is specifically designed to meet the electrical and mechanical specifications of these vehicles, providing a direct replacement for the original resistor block.

Purpose and Common Issues Addressed

• Restores proper blower motor speed control in HVAC systems
• Resolves issues with blower fan stuck on a single speed
• Eliminates inconsistent airflow or blower motor failure
• Prevents overheating of blower motor circuits
• Addresses electrical resistance faults in the HVAC blower system

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20420, ensure the female rectangular connector aligns correctly with the vehicle’s wiring harness. Verify that all four terminals are securely connected to avoid intermittent blower motor operation. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts. Proper installation will restore HVAC blower motor functionality without requiring additional modifications.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20420 to meet OEM standards for durability and performance. This part undergoes quality control testing to ensure reliable operation within the HVAC system. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
