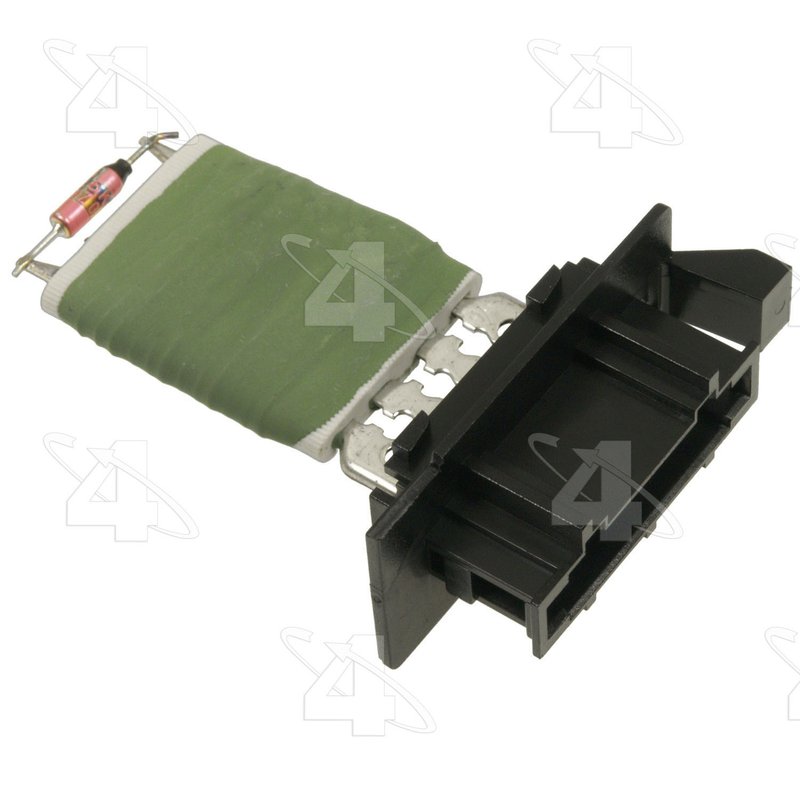

Four Seasons 20447 HVAC Blower Motor Resistor - Front or Rear

Overview of Four Seasons Resistor Block 20447

The Four Seasons Resistor Block 20447 is designed to regulate blower motor speeds in HVAC systems for select Dodge and Mercedes-Benz Sprinter models. This HVAC blower motor resistor ensures consistent airflow control, maintaining comfort inside your vehicle's cabin.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Type: Switches

Features of the Four Seasons Resistor Block

The Resistor Block product line by Four Seasons specializes in components that control blower motor speeds within automotive HVAC systems. The 20447 resistor block is engineered to provide reliable fixed-speed operation, specifically supporting the third speed setting in compatible vehicles. Its rectangular female connector with four terminals ensures secure and precise electrical connections, contributing to stable HVAC performance.

Detailed Product Description

This HVAC blower motor resistor, part number 20447, is compatible with Dodge and Mercedes-Benz Sprinter models, including Sprinter 2500 and Sprinter 3500. The resistor block controls the blower motor speed by adjusting electrical resistance, allowing the HVAC system to maintain the desired airflow. The fixed #3 speed setting indicates it is designed to regulate one specific blower speed, which is critical for proper climate control functionality. The rectangular female connector with four terminals facilitates easy integration with the vehicle's wiring harness.

Common Applications and Issues Addressed

• Restores blower motor speed control in Dodge and Mercedes-Benz Sprinter HVAC systems
• Resolves issues with blower motor stuck on a single speed or not operating at fixed #3 speed
• Fixes intermittent or no airflow problems related to resistor block failure
• Eliminates electrical connection faults caused by damaged or corroded terminals
• Supports consistent cabin temperature regulation by maintaining proper blower speed

Installation Notes and Tips

• Ensure vehicle compatibility with Dodge or Mercedes-Benz Sprinter 2500/3500 models before installation
• Disconnect the battery prior to replacing the resistor block to prevent electrical shorts
• Locate the blower motor resistor within the HVAC housing, typically near the blower motor assembly
• Carefully disconnect the rectangular female connector with four terminals and replace with part number 20447
• Verify secure connections and test blower motor speeds after installation

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20447 to meet OEM specifications for durability and performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. Using this resistor block helps maintain the HVAC system’s reliability in Dodge and Mercedes-Benz Sprinter vehicles.
