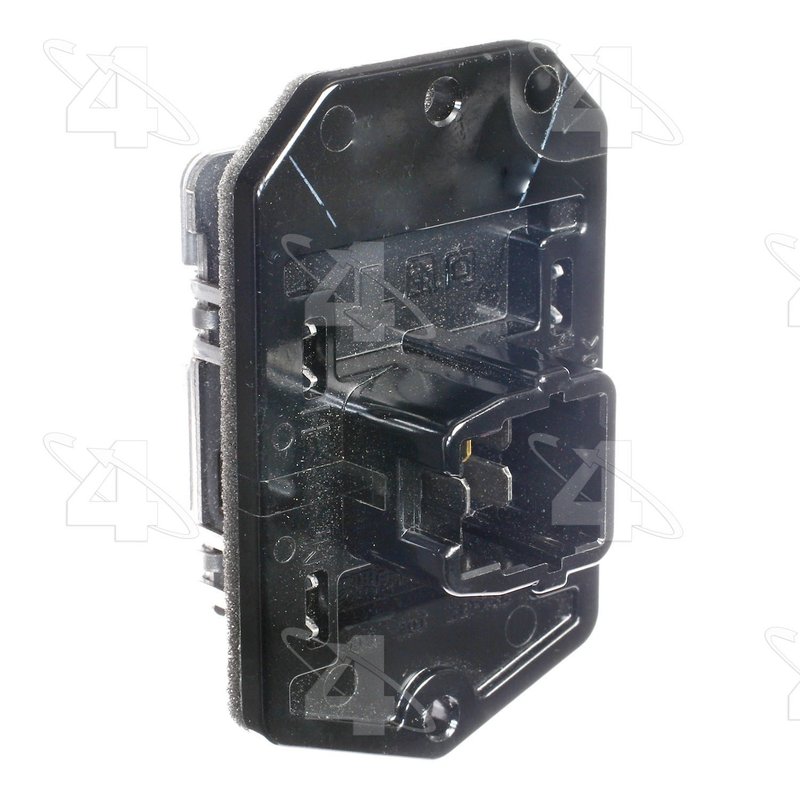

Four Seasons 20460 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20460

The Four Seasons Resistor Block 20460 is designed to regulate blower motor speeds in select Pontiac, Scion, and Toyota vehicles. This HVAC blower motor resistor ensures consistent airflow control for models such as the Toyota Corolla, Celica, and RAV4.

• Connector Gender: Female
• Connector Shape: Square
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Type: Switches

Features and Specifications

This resistor block features a female connector with a square shape, providing secure and reliable electrical connections. It includes four terminals to support the fixed speed #3 setting, which is essential for proper blower motor operation. The part type is classified under switches, indicating its role in controlling electrical current within the HVAC system.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on delivering precise blower motor resistor components that maintain HVAC system performance. The 20460 resistor block is part of this line, engineered to meet the specific electrical and mechanical requirements of various vehicle models, ensuring compatibility and durability.

Compatible Vehicles and Applications

This HVAC blower motor resistor is compatible with multiple makes and models, including Pontiac, Scion, and Toyota vehicles. Specifically, it fits the Toyota Celica, Corolla, Corolla iM, Matrix, RAV4, tC, Vibe, and xB models. The Four Seasons 20460 resistor block is designed to replace faulty or worn-out resistors that affect blower motor speed control.

• Resolves inconsistent blower motor speeds
• Fixes blower motor not working on certain speed settings
• Eliminates overheating issues in the resistor block
• Restores proper HVAC airflow regulation
• Prevents electrical connection failures in the blower motor circuit

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20460, ensure the vehicle’s ignition is off and the battery is disconnected to avoid electrical hazards. Verify the connector gender and shape match the existing wiring harness—this part features a female, square connector with four terminals. Properly secure the resistor block to prevent vibration damage and ensure optimal electrical contact.

Quality Assurance and Warranty

Four Seasons manufactures the 20460 resistor block to meet OEM standards for fit and function. This part undergoes quality control testing to ensure reliable performance in HVAC blower motor systems. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
