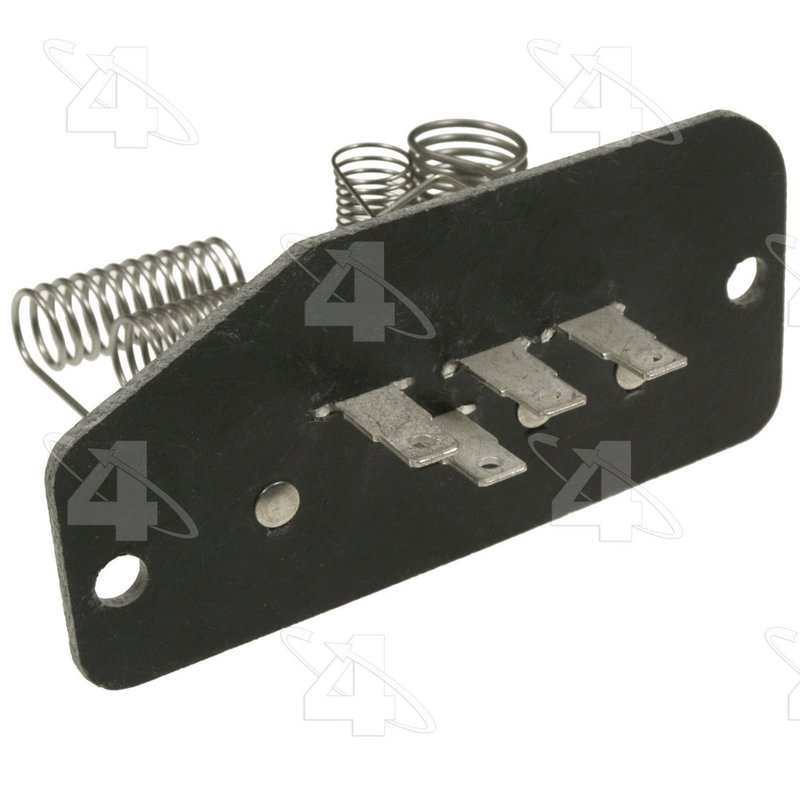

Four Seasons 20504 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20504

The Four Seasons Resistor Block 20504 is designed to regulate blower motor speeds in HVAC systems for Chevrolet Astro and GMC Safari vehicles. This HVAC blower motor resistor features a fixed speed setting and a unique connector design to ensure reliable performance in your vehicle's heating and cooling system.

• Brand: Four Seasons
• Brand Line: Resistor Block
• Part Number: 20504
• Connector Gender: Male
• Connector Shape: Other design
• Number of Terminals: 4
• Speed: Fixed #3
• Type: Switches

Detailed Product Description

The Four Seasons Resistor Block 20504 is a critical component in the HVAC system of Chevrolet Astro and GMC Safari models. It functions as a blower motor resistor, controlling the electrical current to the blower motor and enabling the regulation of fan speeds. This resistor block features a male connector with a distinct design and four terminals, providing a secure and stable connection within the HVAC assembly. The fixed speed #3 setting ensures consistent blower motor operation at a specific speed, which is essential for maintaining proper airflow and temperature control inside the vehicle cabin.

The Resistor Block product line by Four Seasons focuses on delivering reliable and precise control components for automotive HVAC systems. This line is engineered to meet OEM specifications, ensuring compatibility and durability for vehicles like the Chevrolet Astro and GMC Safari. The 20504 resistor block is part of this line, offering a dependable solution for blower motor speed regulation.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Chevrolet Astro and GMC Safari HVAC systems
• Resolves issues with blower motor stuck on a single speed or not operating at all
• Fixes inconsistent airflow or fan speed fluctuations
• Addresses electrical connection problems related to the blower motor resistor
• Improves overall HVAC system performance and passenger comfort

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20504, ensure the vehicle is powered off and the HVAC system is disconnected to avoid electrical hazards. Verify the connector gender and shape match the existing wiring harness in your Chevrolet Astro or GMC Safari. Properly align the four terminals to the corresponding slots to secure a firm connection. It is recommended to inspect the blower motor and related components for wear or damage during installation to prevent future issues.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20504 to meet stringent quality standards, ensuring reliable operation within the HVAC system. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, refer to the product documentation or contact the manufacturer directly.
