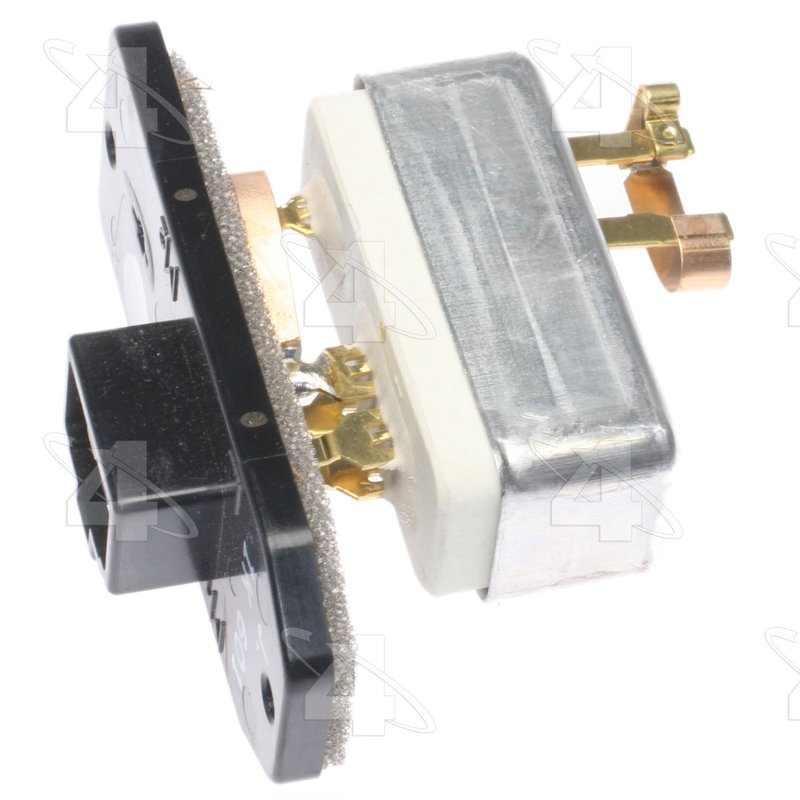

Four Seasons 20547 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20547

The Four Seasons Resistor Block 20547 is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This HVAC blower motor resistor ensures proper control of blower motor speeds, maintaining consistent climate control performance in your vehicle.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Type: Switches

About the Four Seasons Resistor Block Product Line

The Resistor Block product line by Four Seasons focuses on reliable HVAC components that regulate blower motor speeds. This line is engineered to meet OEM specifications, providing precise control and durability for heating and cooling systems in various vehicle applications, including Dodge Ram trucks.

Detailed Product Description

The Four Seasons Resistor Block 20547 features a female rectangular connector with four terminals, designed to interface seamlessly with the HVAC system of Dodge Ram 1500, 2500, and 3500 models. The fixed #3 speed setting allows for consistent blower motor operation at a specific speed, contributing to stable cabin temperature control. As a switch-type resistor block, it plays a critical role in modulating the electrical current to the blower motor, ensuring efficient HVAC performance.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Dodge Ram 1500, 2500, and 3500
• Resolves blower motor stuck on one speed or no speed
• Fixes inconsistent or intermittent blower motor operation
• Eliminates overheating or electrical resistance issues in the HVAC system
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20547, ensure the vehicle is powered off and the HVAC system is disconnected to avoid electrical hazards. The female rectangular connector with four terminals should be securely connected to the corresponding wiring harness. Verify the fixed #3 speed setting matches the vehicle’s HVAC requirements. It is recommended to inspect the blower motor and related components for wear or damage during installation.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20547 to meet or exceed OEM standards for durability and performance. This part undergoes rigorous quality control to ensure reliable operation in Dodge Ram 1500, 2500, and 3500 models. Warranty coverage details should be confirmed with the supplier or manufacturer to ensure protection against defects.
