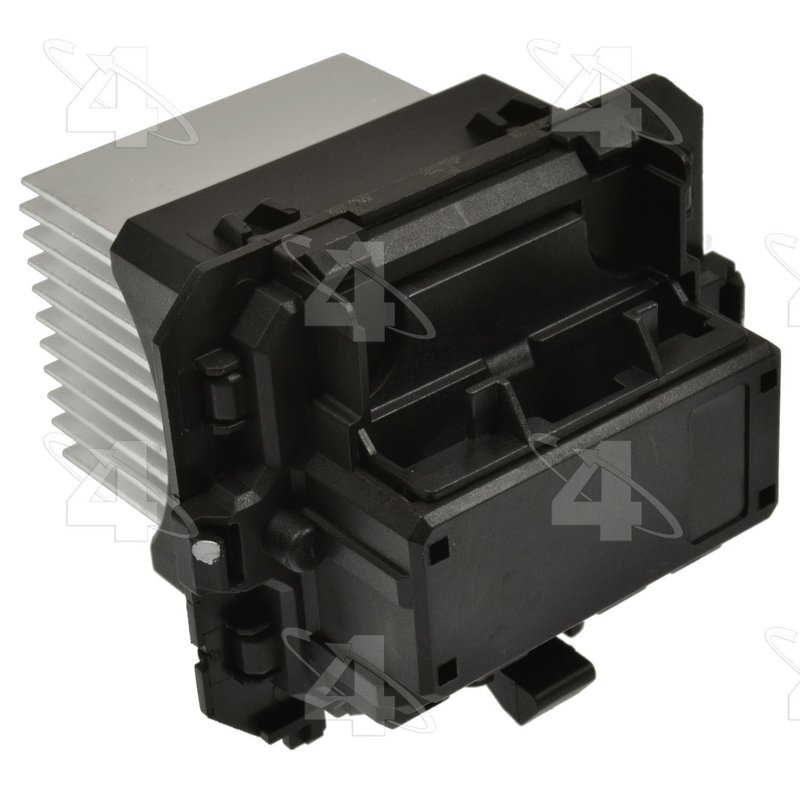

Four Seasons 20568 HVAC Blower Motor Resistor - Rear

Overview of Four Seasons Resistor Block 20568

The Four Seasons Resistor Block 20568 is designed to regulate the blower motor speed in HVAC systems for select Ford and Lincoln vehicles. This variable speed resistor block ensures precise control of your HVAC blower motor, contributing to consistent cabin comfort.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 5
• Speed Type: Variable
• Part Type: HVAC Blower Motor Resistor

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on reliable HVAC components that manage blower motor speeds through variable resistance. This product line is engineered to provide consistent performance and compatibility with specific vehicle models, including Ford F-250 Super Duty, F-350 Super Duty, Flex, and Lincoln MKT. The 20568 resistor block is part of this line, offering a durable and precise switching mechanism for HVAC blower motors.

Detailed Product Description

The Four Seasons 20568 resistor block features a female rectangular connector with five terminals, designed to fit seamlessly into the HVAC system of compatible vehicles. Its variable speed capability allows for smooth adjustment of blower motor speeds, enhancing the HVAC system's efficiency. This resistor block acts as a switch that modulates electrical current to the blower motor, ensuring optimal airflow control within the cabin.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Ford F-250 Super Duty and F-350 Super Duty models
• Resolves inconsistent or non-functioning blower speeds in Lincoln MKT and Ford Flex vehicles
• Eliminates blower motor stuck on one speed or no speed issues
• Addresses HVAC blower motor resistor failures causing loss of variable speed control
• Improves overall HVAC system responsiveness and comfort

Installation Notes and Tips

• Ensure vehicle compatibility with Ford F-250 Super Duty, F-350 Super Duty, Flex, or Lincoln MKT before installation
• Disconnect the battery prior to replacing the resistor block to avoid electrical shorts
• Locate the blower motor resistor block within the HVAC housing for proper access
• Verify the connector is female and rectangular shaped with five terminals to match the 20568 part
• Test blower motor operation at all speeds after installation to confirm proper function

Quality Assurance and Warranty

Four Seasons manufactures the 20568 resistor block to meet OEM specifications for durability and performance. This part undergoes quality control testing to ensure reliable operation within the HVAC system. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary.
