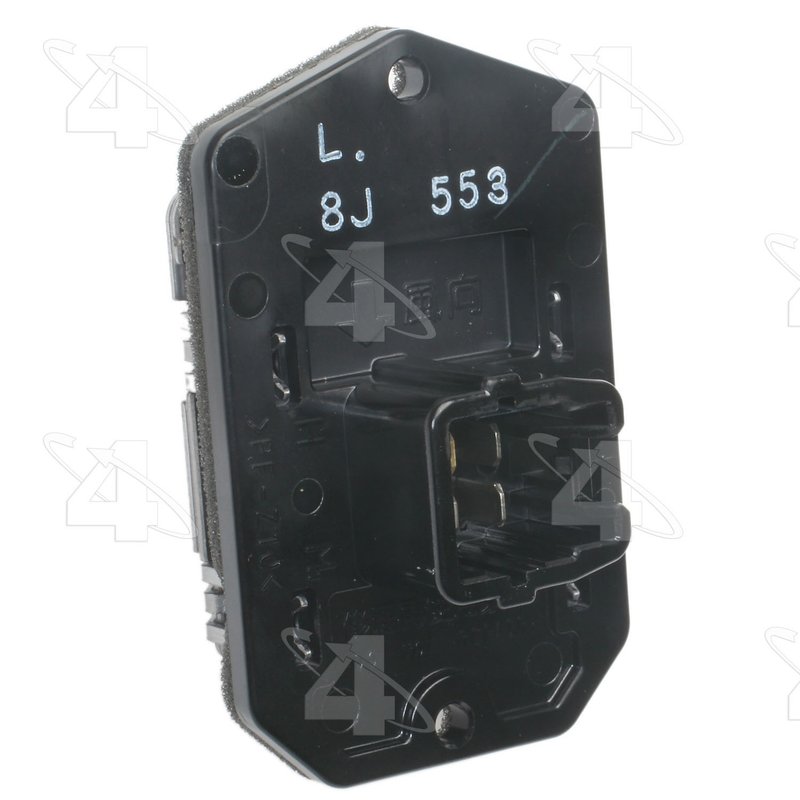

Four Seasons 20661 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20661

The Four Seasons Resistor Block 20661 is designed specifically for Jeep Wrangler HVAC systems. This HVAC blower motor resistor ensures proper fan speed control by regulating electrical current to the blower motor, maintaining consistent airflow within the vehicle's cabin.

• Connector Gender: Female
• Connector Shape: Square
• Number of Terminals: 4
• Speed Setting: Fixed #3
• Terminal Gender: Male
• Type: Switches

Detailed Product Description

This resistor block from Four Seasons is engineered to provide reliable performance in Jeep Wrangler models. Featuring a female square connector and four male terminals, it is designed to integrate seamlessly with the vehicle's HVAC blower motor system. The fixed #3 speed setting allows for consistent blower motor operation at a specific speed, contributing to effective climate control. As a switch-type resistor block, it plays a critical role in modulating the blower motor's speed by switching electrical resistance levels.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on delivering precise HVAC blower motor resistor components tailored for various vehicle applications. This line emphasizes compatibility and durability, ensuring that each resistor block meets the electrical and mechanical requirements of the vehicle's heating and cooling system. The 20661 resistor block is part of this line, designed to maintain optimal blower motor function in Jeep Wrangler models.

Common Issues Addressed by This Resistor Block

• Inconsistent blower motor speeds in Jeep Wrangler HVAC systems
• Blower motor stuck on a single speed setting
• Loss of fan speed control or blower motor failure
• Electrical resistance faults causing HVAC performance issues
• Intermittent blower motor operation or no airflow

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Verify connector orientation: female square connector mates with the corresponding male plug
• Check that all four terminals are securely connected to prevent loose contacts
• Consult the Jeep Wrangler service manual for resistor block location and removal procedures
• Test blower motor operation after installation to confirm proper function

Quality Assurance and Warranty

Four Seasons manufactures the 20661 resistor block to meet OEM specifications for Jeep Wrangler HVAC systems. The part undergoes quality control testing to ensure electrical and mechanical reliability. While specific warranty details are not provided here, Four Seasons typically offers coverage against manufacturing defects. Refer to the product packaging or manufacturer documentation for exact warranty terms.
