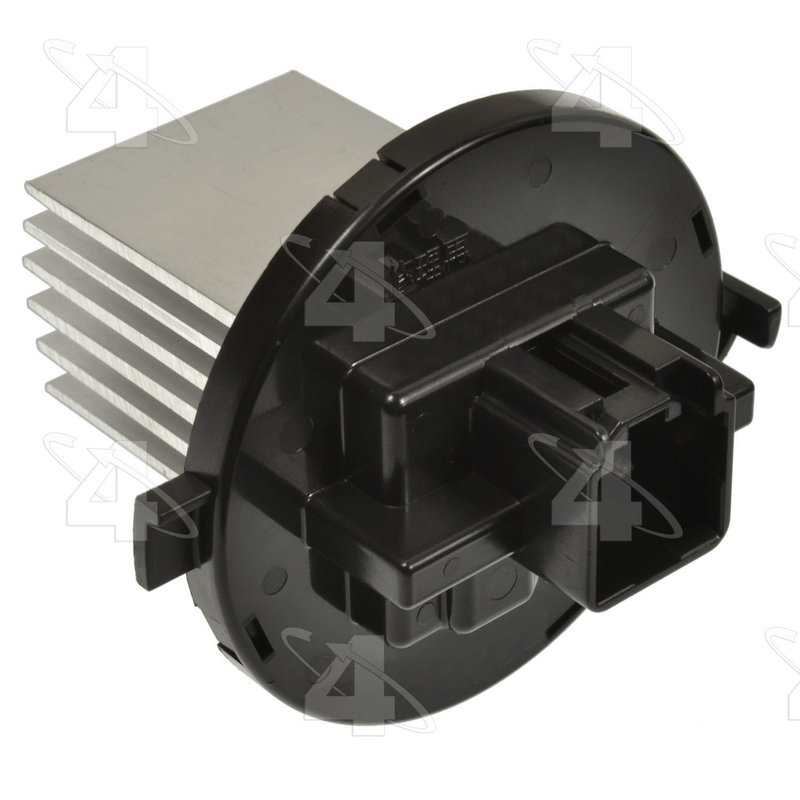

Four Seasons 20675 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20675

The Four Seasons Resistor Block 20675 is designed specifically for the Mazda CX-5 HVAC system. This HVAC blower motor resistor ensures proper control of the blower motor speeds, contributing to efficient climate control within your vehicle.

• Connector Gender: Female
• Connector Shape: Square
• Number of Terminals: 3
• Type: Switches
• Part Number: 20675
• Compatible with Mazda CX-5 models

Detailed Product Description

This resistor block is a critical component in the HVAC blower motor circuit, regulating the electrical current to control fan speeds. Featuring a female connector with a square shape and three terminals, it integrates seamlessly with the Mazda CX-5’s HVAC system. The resistor block type is classified under switches, which modulate blower motor operation by varying resistance levels. The part number 20675 identifies this specific resistor block within the Four Seasons product range.

About the Four Seasons Resistor Block Product Line

The Four Seasons Resistor Block product line focuses on providing reliable HVAC blower motor resistors designed to meet OEM specifications. These resistor blocks are engineered to maintain consistent blower motor performance and ensure proper fan speed control. The 20675 resistor block is part of this line, offering a precise fit and function for the Mazda CX-5 HVAC system.

Common Issues Resolved by This Resistor Block

• Inconsistent or non-functioning blower motor speeds
• Blower motor stuck on one speed setting
• Intermittent HVAC fan operation
• Overheating or electrical resistance failure in blower motor circuit
• HVAC blower motor not responding to control switch inputs

Installation Notes and Tips

• Ensure the vehicle is powered off before installation
• Verify connector orientation matches the female square connector on the resistor block
• Check for corrosion or damage on terminals before connecting
• Secure the resistor block firmly to avoid vibration-related issues
• Consult the Mazda CX-5 service manual for specific removal and installation procedures

Quality Assurance and Warranty

Four Seasons manufactures the 20675 resistor block to meet industry standards for durability and performance. While specific warranty details may vary, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. This ensures reliability and peace of mind when replacing the HVAC blower motor resistor in your Mazda CX-5.
