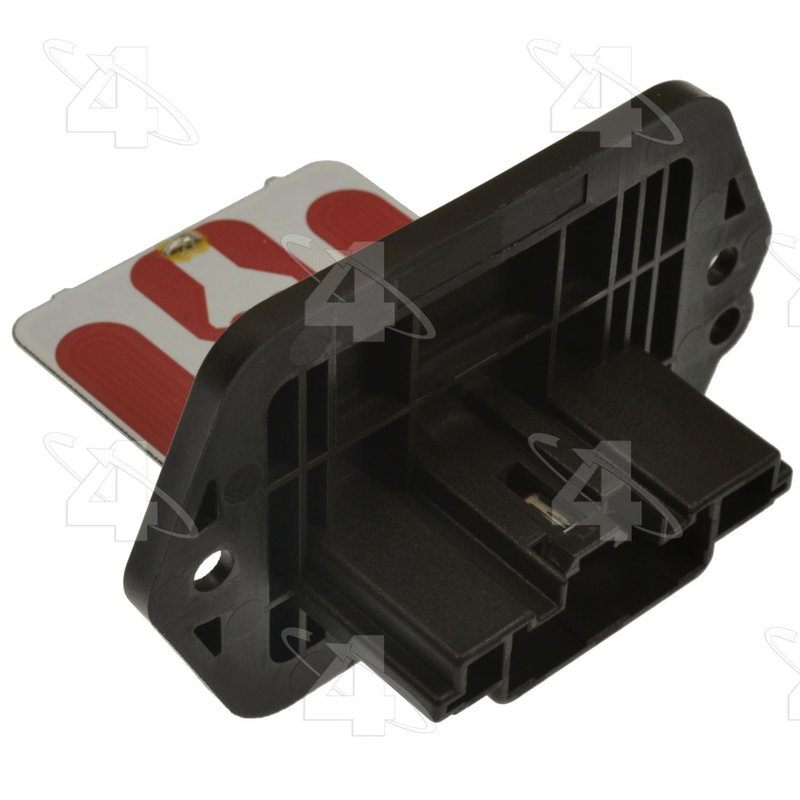

Four Seasons 20683 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20683

The Four Seasons Resistor Block 20683 is designed specifically for HVAC blower motor systems in Mazda CX-7 vehicles. This resistor block features a female rectangular connector with four terminals, ensuring reliable electrical connections and consistent blower motor performance.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Type: Switches
• Part Number: 20683
• Compatible with Mazda CX-7 HVAC systems

Detailed Product Description

This HVAC blower motor resistor block from Four Seasons is engineered to regulate the electrical current flowing to the blower motor, allowing for multiple fan speed settings in the Mazda CX-7. The rectangular female connector with four terminals provides a secure and precise fit, minimizing the risk of connection issues. The resistor block is part of the Four Seasons Resistor Block product line, which focuses on delivering dependable components for HVAC motor control systems. This product line is known for its compatibility and durability within various vehicle HVAC applications.

Common Applications and Issues Resolved

• Restores proper blower motor fan speed control in Mazda CX-7
• Eliminates blower motor failure due to resistor block malfunction
• Prevents inconsistent or non-functioning HVAC fan speeds
• Addresses electrical connection problems with the blower motor circuit
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

• Ensure the vehicle is powered off before installation
• Verify connector orientation matches the female rectangular shape
• Check for corrosion or damage on terminals before connecting
• Securely fasten the resistor block to avoid vibration-related issues
• Consult the Mazda CX-7 service manual for specific installation procedures

Quality Assurance and Warranty

Four Seasons maintains strict quality control standards for the Resistor Block 20683 to ensure consistent performance and durability. While specific warranty details are not provided here, Four Seasons products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Using this resistor block helps maintain the integrity of the Mazda CX-7 HVAC blower motor system.
