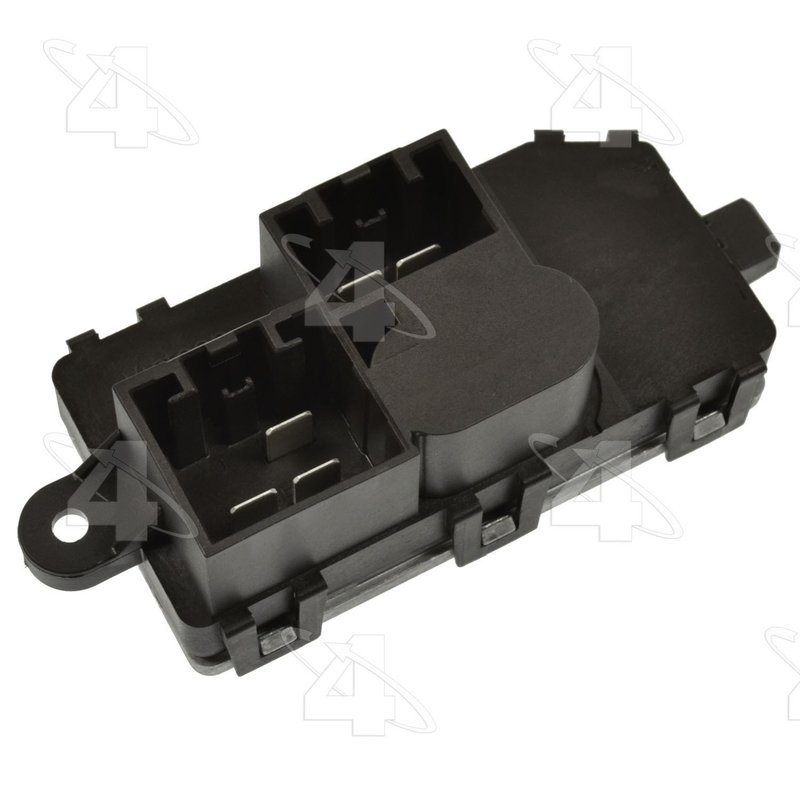

Four Seasons 20691 HVAC Blower Motor Resistor - Front

Overview of Four Seasons Resistor Block 20691

The Four Seasons Resistor Block 20691 is designed to regulate the blower motor speed in HVAC systems for select Ford and Lincoln vehicles. This component ensures variable speed control, contributing to efficient climate control in your vehicle.

• Connector Gender: Female / female
• Connector Shape: Square / rectangle
• Number of Terminals: 3 / 2
• Speed Control: Variable
• Type: Switches

About the Four Seasons Resistor Block Product Line

The Resistor Block line by Four Seasons focuses on reliable HVAC blower motor resistors that maintain proper airflow speed regulation. This product line is engineered to meet the specific electrical and mechanical requirements of various vehicle models, including Ford Escape, Focus, Lincoln MKC, and Transit Connect, ensuring compatibility and consistent performance.

Detailed Product Description

The Four Seasons Resistor Block 20691 features a female/female connector with a square and rectangular shape, designed for secure and precise connections within the HVAC system. With 3 and 2 terminal configurations, this resistor block provides variable speed control for the blower motor, allowing for smooth adjustment of airflow inside the vehicle cabin. Its switch-type design supports the modulation of electrical current to the blower motor, enabling different fan speeds as required by the HVAC controls.

Common Issues Resolved by This Resistor Block

• Inconsistent blower motor speeds in Ford Escape and Lincoln MKC
• Blower motor stuck on one speed or not responding to controls in Ford Focus
• HVAC blower motor failure to operate at variable speeds in Transit Connect
• Intermittent blower motor operation or no airflow adjustment
• Electrical connection issues due to worn or damaged resistor block

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Verify connector orientation matches the female/female square and rectangular shape for proper fit
• Check the number of terminals (3 / 2) to confirm compatibility with your vehicle’s HVAC system
• Consult the vehicle’s service manual for resistor block location and removal instructions
• Test blower motor operation after installation to confirm proper speed control

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20691 to meet OEM specifications for durability and performance. This part undergoes quality control testing to ensure reliable operation within the HVAC system. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
