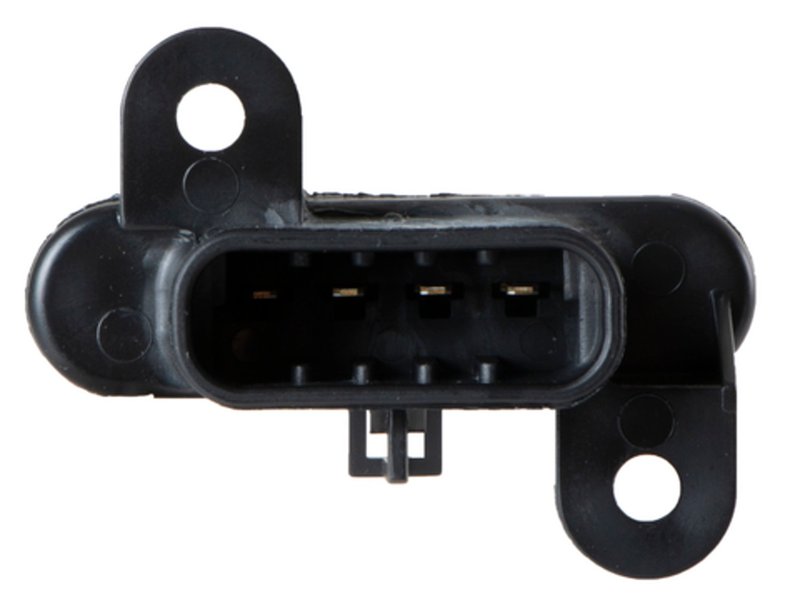

Four Seasons 20693 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Precise Climate Control

The Four Seasons Motor Resistor 20693 is designed to regulate the blower motor speed in your vehicle's HVAC system. Featuring a rectangular female connector with four terminals, this resistor block ensures consistent performance and compatibility with various automotive applications.

• Brand: Four Seasons
• Brand Line: Motor Resistor
• Part Number: 20693
• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 4
• Type: Switches (Resistor block)

Product Line Details: Four Seasons Motor Resistor

The Motor Resistor line by Four Seasons focuses on components that control blower motor speeds within HVAC systems. This product line includes resistor blocks engineered to maintain proper electrical resistance, ensuring smooth operation of blower motors in vehicles such as Ford F-150, Chevrolet Silverado, and Dodge Ram models. The 20693 resistor is part of this line, providing reliable switching functionality through its four-terminal design.

Technical Description and Features

The Four Seasons 20693 Motor Resistor is a resistor block designed to interface with the blower motor circuit via a female rectangular connector. Its four terminals allow for precise control of blower motor speeds by switching resistance levels within the HVAC system. This component is essential for maintaining consistent airflow and temperature regulation inside the vehicle cabin. Compatible with various makes and models, including popular trucks and SUVs, this resistor supports proper HVAC blower motor operation and prevents overheating or failure.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in HVAC systems
• Eliminates inconsistent or non-functioning blower fan speeds
• Prevents blower motor overheating caused by faulty resistance
• Resolves issues with blower motor stuck on one speed setting
• Improves overall climate control system reliability in vehicles like Ford F-150 and Chevrolet Silverado

Installation Notes and Tips

When installing the Four Seasons Motor Resistor 20693, ensure the rectangular female connector aligns correctly with the vehicle’s wiring harness. Verify that all four terminals are securely connected to avoid intermittent blower motor operation. It is recommended to inspect the blower motor and related wiring for damage or corrosion before installation. Proper installation will help maintain consistent HVAC performance and extend the lifespan of the blower motor resistor.

Quality Assurance and Warranty

Four Seasons manufactures the Motor Resistor 20693 to meet or exceed OEM specifications, ensuring durability and reliable performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. This resistor block is built to withstand the electrical demands of automotive HVAC systems and maintain consistent blower motor control.
