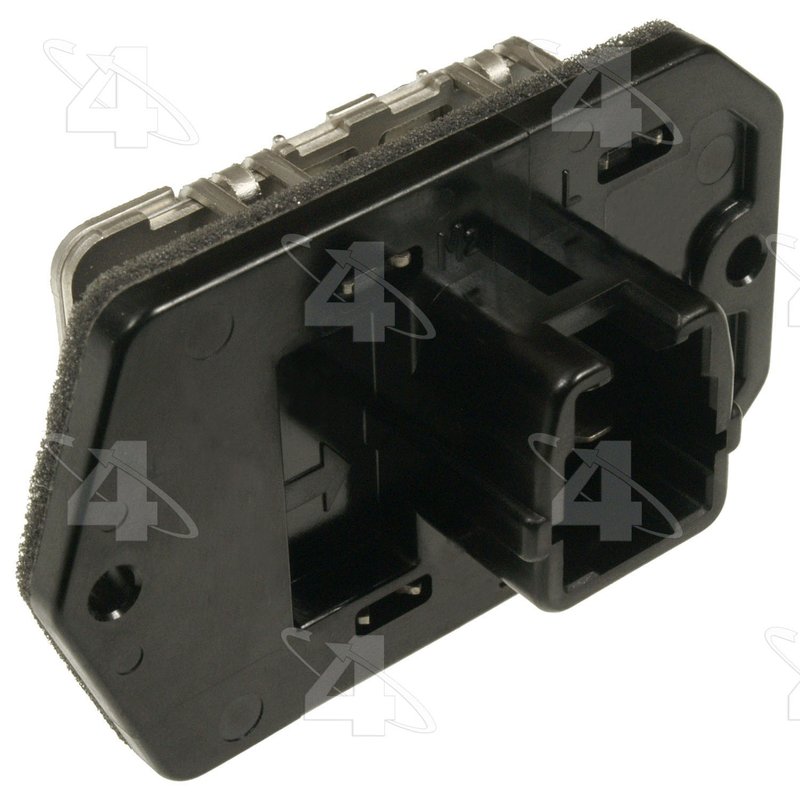

Four Seasons 20697 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20697

The Four Seasons Resistor Block 20697 is designed specifically for Subaru Legacy and Outback models. This HVAC blower motor resistor ensures proper control of your vehicle's blower motor speeds, maintaining comfort and functionality in your heating and cooling system.

• Connector Gender: Female
• Connector Shape: Square
• Number of Terminals: 4
• Type: Switches
• Part Number: 20697

Detailed Product Description

This resistor block is a critical component in the HVAC system, regulating the electrical current to the blower motor to control fan speeds. Featuring a female connector with a square shape and four terminals, it is engineered to fit seamlessly into the Subaru Legacy and Outback HVAC assemblies. The Four Seasons Resistor Block line focuses on reliable electrical switching components that maintain consistent blower motor performance under various operating conditions.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Subaru Legacy and Outback vehicles
• Resolves blower motor failure to operate at certain speeds
• Eliminates inconsistent or intermittent fan speeds
• Prevents overheating issues related to faulty resistor blocks
• Supports HVAC system functionality for improved cabin comfort

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Verify connector orientation matches the female square connector design
• Check for corrosion or damage on terminals before connecting
• Secure the resistor block firmly to prevent vibration-related issues
• Consult the Subaru Legacy or Outback service manual for specific removal and installation procedures

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20697 to meet OEM specifications for fit and function. This part undergoes quality control testing to ensure durability and reliable performance in Subaru Legacy and Outback HVAC systems. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
