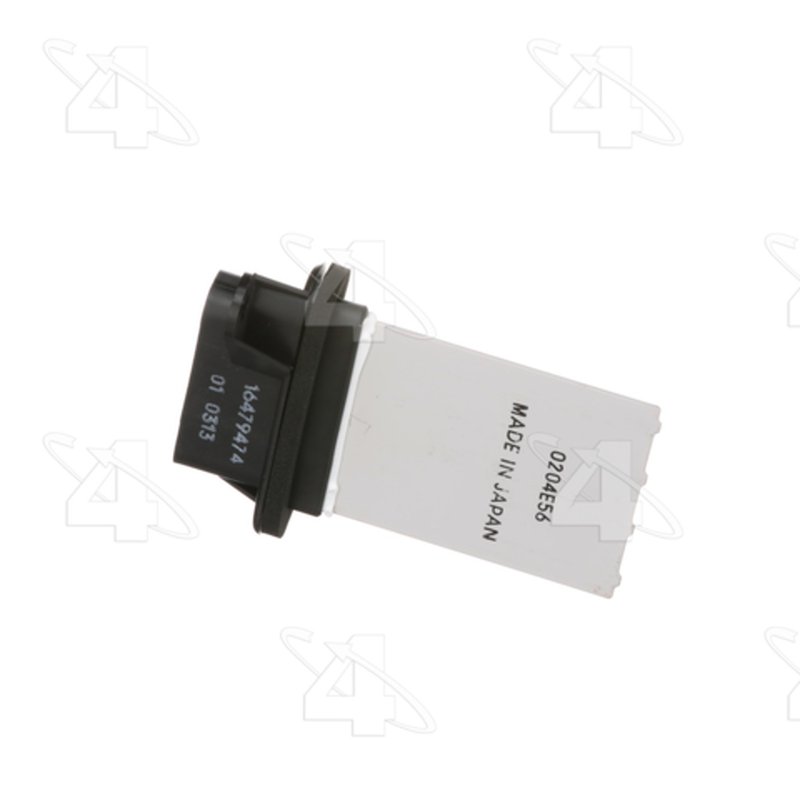

Four Seasons 20702 HVAC Blower Motor Resistor

Overview of Four Seasons Resistor Block 20702

The Four Seasons Resistor Block 20702 is designed to regulate the blower motor speed in HVAC systems for select Chevrolet models. This component ensures proper airflow control in vehicles such as the Chevrolet Sonic, Spark, and Trax, maintaining comfort and system efficiency.

• Connector Gender: Female
• Connector Shape: Rectangular
• Number of Terminals: 5
• Type: Switches
• Part Number: 20702

Features of the Four Seasons Resistor Block

This resistor block features a female rectangular connector with five terminals, providing reliable electrical connections for the HVAC blower motor system. The design supports consistent blower motor speed control, which is critical for maintaining the desired cabin temperature and airflow in Chevrolet Sonic, Spark, and Trax models.

About the Four Seasons Resistor Block Product Line

The Resistor Block product line by Four Seasons focuses on components that regulate blower motor speeds through precise electrical resistance. This line is engineered to meet OEM specifications, ensuring compatibility and performance in HVAC systems. The 20702 resistor block is part of this line, offering a dependable solution for controlling blower motor functions in Chevrolet vehicles.

Applications and Problem Resolution

This HVAC blower motor resistor block is used to control the speed of the blower motor in Chevrolet Sonic, Spark, and Trax models. It addresses common HVAC issues such as:

• Blower motor only working on one speed setting
• Intermittent blower motor operation
• Complete loss of blower motor function
• Inconsistent airflow from vents
• Electrical connection failures in the blower motor circuit

Installation Notes and Tips

When installing the Four Seasons Resistor Block 20702, ensure the female rectangular connector aligns properly with the vehicle’s wiring harness. Verify that all five terminals are securely connected to avoid electrical resistance issues. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts. Proper installation will restore accurate blower motor speed control in the HVAC system.

Quality Assurance and Warranty

Four Seasons manufactures the Resistor Block 20702 to meet industry standards for durability and performance. While specific warranty details are not provided here, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship. This ensures reliability when used in compatible Chevrolet Sonic, Spark, and Trax models.
