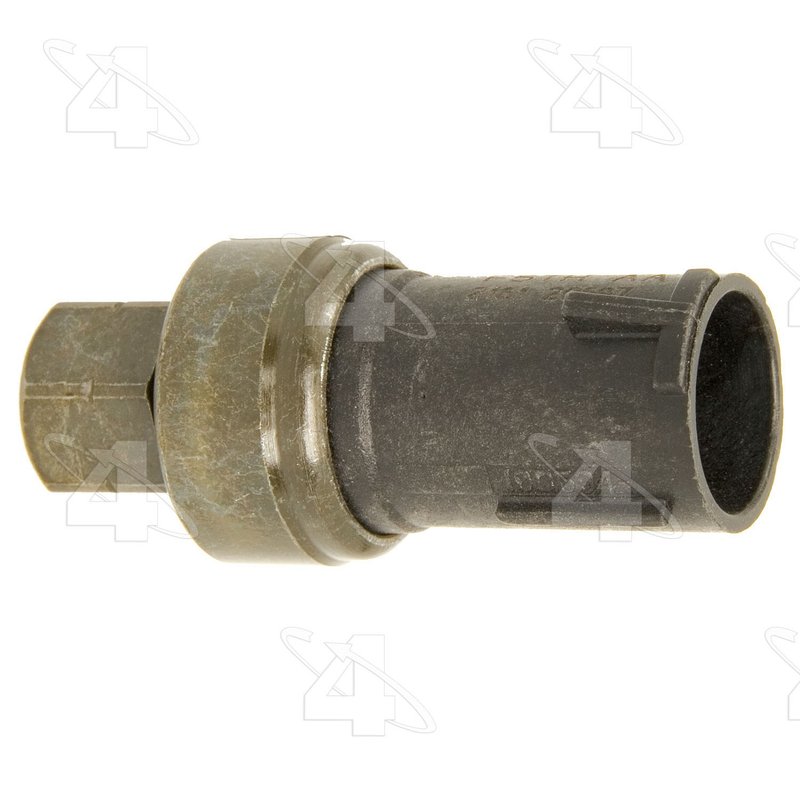

Four Seasons 20916 HVAC Cut-Off Switch

Four Seasons 20916 Pressure Switch

Four Seasons 20916 is a system-mounted HVAC cut-off switch for high-pressure A/C protection. This pressure switch uses a closed operating state, a 12-volt electrical design, and a round female connector to support reliable compressor control in Ford, Mazda, and Lincoln applications.

The Four Seasons Pressure Switch line focuses on direct-fit HVAC electrical components for pressure monitoring and compressor cut-off operation. Part number 20916 follows OE-style specifications with a steel body, Weather Pack sealing, and a 2-pin pin-terminal connection for service-ready replacement.

Key Features

• High cut-out HVAC pressure switch for system-mounted applications
• Closed comp open/closed configuration
• 12-volt electrical design with 2 terminals
• Female round connector and female M10 x 1.25 fitting thread
• Steel construction with Weather Pack protection
• Meets or exceeds OEM requirements
• Operate pressure: 285 psi; off pressure: 430 psi

Detailed Description

Four Seasons 20916 is an HVAC cut-off switch used in high-pressure A/C systems to monitor refrigerant pressure and trigger compressor shutdown at the specified threshold. It is a system-mounted pressure switch with a high cut-out style, making it a direct replacement choice for vehicles that use this style of pressure control. This part cross-references UAC SW10035C for the same application.

Compatible With Ford E-350 Super Duty, Ford E-150, Ford E-250, Ford Ranger, Ford F-250 Super Duty, Ford F-350 Super Duty, Mazda B2300, Mazda B3000, Mazda B4000, Lincoln Navigator, and related Ford, Mazda, and Lincoln models listed in the fitment data. Searchers looking for a Ford Ranger A/C pressure switch, Ford E-350 Super Duty HVAC cut-off switch, or Mazda B4000 high-pressure switch will find this part number 20916 matches the required system-mounted configuration.

What It Helps Address

• A/C compressor cycling caused by incorrect high-side pressure control
• Compressor shutdown needs in a high-pressure HVAC circuit
• Faulty pressure switch electrical signaling
• Loss of A/C protection from an inoperative cut-off switch
• Replacement needs for a worn or damaged system-mounted pressure switch

Installation Notes and Tips

• Verify the connector shape, terminal count, and M10 x 1.25 thread before installation.
• Confirm the vehicle uses a system-mounted high-pressure cut-off switch location.
• Inspect the harness connector and sealing surfaces for corrosion or damage before reconnecting.
• Use the vehicle service procedure to recover and recharge the A/C system as required.
• Match the pressure switch style and operating pressure to the original component specification.

Quality Assurance

Four Seasons 20916 is built to meet or exceed OEM requirements and uses steel construction for HVAC service applications. The part is specified for 12-volt systems and Weather Pack-equipped connections, supporting consistent fit and function in compatible Ford, Mazda, and Lincoln A/C systems.
