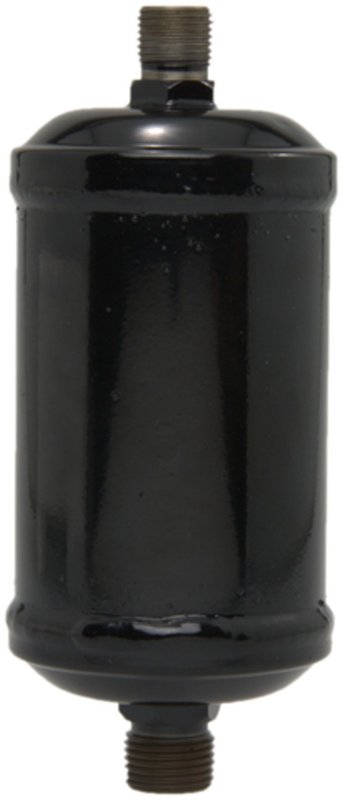

Four Seasons 33270 A/C Receiver Drier
| Brand | Four Seasons 33270 |
|---|---|
| Material | Steel |
| Inlet Filter Fitting Type | Male |
| Desiccant | Yes |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Type | Washer not included |
| Body Diameter | 2.500 |
| Body Length | 6.500 |
| Moisture Indicator Window | No |
| Inlet Fitting Type | Male insert o-ring |
| Desiccant Replaceable | Not replaceable |
| Fuse Plug | No |
| Inlet Fitting Diameter | 0.375 |
| Outlet Fitting Type | Male insert o-ring |
| Mounting Bracket Included | Not included |
| Bracket? | W/o bracket |
| Connector B Type | Male insert o-ring |
| Connector Type | Male insert o-ring |
| Description | Filter driers |
| Dia. MM | 63.500 |
| Gasket / Seals? | Included |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 165.100 |
| Meets / Exceeds OEM? | Yes |
| New or Reman | New |
| O-Ring A Number/Desc | [24606] / green o-ring |
| O-Ring A Quantity | 1 |
| Fits | — |
OE-grade replacement. Meets or exceeds OEM requirements for dependable service.
Steel construction. Built with a durable steel body for lasting performance.
Desiccant filter drier. Helps remove moisture from the A/C system.
Cross-references Carlson 7140, Carlson 15371 and Carlson 41258 for the same application. See all 66.
Four Seasons 33270 A/C Receiver Drier
Four Seasons 33270 is a steel A/C receiver drier built for HVAC systems that use a male insert O-ring connection style. It includes desiccant and gasket/seals, and it meets or exceeds OEM requirements for replacement service. This Four Seasons filter drier is a direct-fit style option for restoring refrigerant system protection in applications such as Honda Civic and Toyota Corolla service work where the original receiver drier needs replacement.
Key Features
- Steel receiver drier construction for HVAC durability
- Male insert O-ring inlet and outlet fittings
- Desiccant included to help manage moisture in the A/C system
- Washer not included; gasket/seals included
- No moisture indicator window, fuse plug, service port, or switch port
- New part that meets or exceeds OEM specifications
- Body diameter: 2.500 in. / 63.5 mm
- Body length: 6.500 in. / 165.1 mm
Product Details
The Four Seasons Filter Drier line is focused on replacement HVAC components that support refrigerant cleanliness and moisture control. Part number 33270 uses a steel body with a non-replaceable desiccant core and male insert O-ring fittings sized at 3/8 in. inlet and 1/2 in. outlet. The unit is supplied without a mounting bracket and without a sight glass, making it a straightforward replacement for systems that already use this configuration. This part cross-references Monroe Shocks & Struts 172536 for the same application.
Common Problems This Part Can Help Address
- Moisture contamination in the A/C refrigerant circuit
- Reduced cooling performance caused by a saturated receiver drier
- Debris management issues after A/C service or component replacement
- Seal leakage at worn O-ring connection points
- System contamination concerns during compressor or condenser repairs
Installation Notes and Tips
Verify inlet and outlet fitting style, thread diameter, and overall dimensions before installation. Replace the O-rings with the correct green O-ring seals supplied for the connection points, and evacuate the system before recharging. Because this receiver drier does not include a mounting bracket or service port, confirm the original vehicle layout matches the part before ordering. Fits 2006-2011 Honda Civic, front right. Fits 2003-2008 Toyota Corolla, front right. For vehicle-specific HVAC service, confirm the original receiver drier configuration on Honda Civic and Toyota Corolla applications before installation.
Quality Assurance
Four Seasons 33270 is a new replacement part built to meet or exceed OEM specifications for A/C receiver drier service. The steel construction, included seals, and desiccant-filled design support proper HVAC system maintenance in the intended applications.
