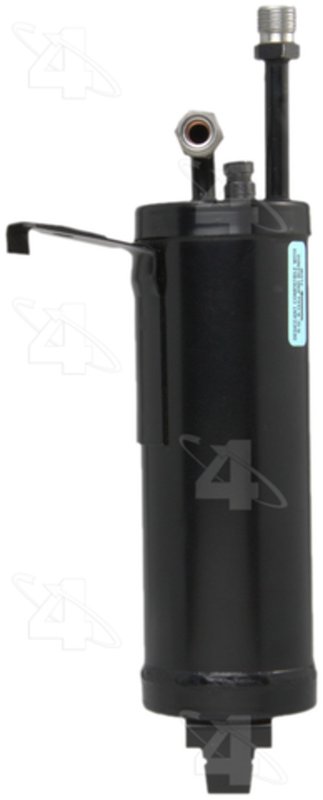

Four Seasons 33277 A/C Receiver Drier
| Brand | Four Seasons 33277 |
|---|---|
| Body Diameter | 2.500 |
| Body Length | 11.000 |
| Bracket? | w/ Bracket |
| Connector B Type | Male Insert O-Ring |
| Connector Type | Male Insert O-Ring |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 63.500 |
| Fuse Plug | No |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| Inlet Filter Fitting Type | Male |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Male Insert O-Ring |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 279.400 |
| Material | Steel |
| Meets / Exceeds OEM? | Yes |
| Moisture Indicator Window | No |
| Mounting Bracket Included | Not Included |
| New or Reman | New |
| O-Ring A Number/Desc | [24612] / Green O-Ring |
| Outlet Fitting Type | Male Insert O-Ring |
| Outlet Fraction | 3/8 |
| Outlet IN | 0.375 |
| Outlet MM | 9.525 |
| Overall Depth IN | 11.000 |
| P. R. V.? | No |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Stud? | No |
| Style | Steel Filter Drier |
| Switch Port? | w/ Switch Port |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Honda · 2 vehicles |
OE-grade replacement. Meets or exceeds OEM requirements for dependable HVAC service.
Steel filter drier. Durable construction with desiccant to help manage moisture.
Male insert O-ring fittings. Designed for secure, leak-resistant connections.
Cross-references Carlson 16103, DENSO Auto Parts 4136 and Four Seasons 33277 for the same application. See all 31.
Four Seasons 33277 A/C Receiver Drier
Four Seasons 33277 is a steel A/C receiver drier built for HVAC systems that use a male insert O-ring inlet and outlet. It includes desiccant and gasket/seals, and it meets or exceeds OEM requirements for the listed applications.
Key Features
- Steel filter drier construction for automotive A/C service
- Male insert O-ring inlet and outlet connections
- 3/8 in. inlet and 3/8 in. outlet sizing
- Desiccant included; desiccant is not replaceable
- No moisture indicator window, sight glass, service port, or fuse plug
- Body diameter: 2.500 in.; body length: 11.000 in.
- New part that meets or exceeds OEM specifications
Product Details
This Four Seasons filter drier is part of the Filter Drier line and is built for use in automotive air conditioning systems that need moisture control and refrigerant filtration. The steel body, male insert O-ring fittings, and included green O-rings support a secure seal at the inlet and outlet. Four Seasons 33277 is listed for 1986-1987 Honda Prelude, including 1986 Honda Prelude with programmable fuel injection and 1987 Honda Prelude filter drier applications.
This part cross-references Monroe Shocks & Struts (e.g., 71136, 171136) for the same application.
What It Helps Address
- Moisture contamination in the A/C system
- Refrigerant flow restriction caused by a saturated drier
- Debris capture in the HVAC refrigerant circuit
- Seal leakage at the receiver drier connections
- Poor A/C performance related to an aging filter drier
Installation Notes
Verify inlet and outlet sizing before installation: this unit uses 3/8 in. male insert O-ring connections. Replace the receiver drier whenever the A/C system has been opened for service, and inspect mating surfaces and O-rings before assembly. Confirm vehicle application for 1986-1987 Honda Prelude, including the 1986 programmable fuel injection configuration, before ordering.
Quality Assurance
Four Seasons 33277 is a new steel filter drier that meets or exceeds OEM requirements for the listed fitments. It is built for direct replacement service in the specified Honda Prelude applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1987 | Honda | Prelude | 2.0L | L4 | N/A | Filter Drier |
| 1986 | Honda | Prelude | 2.0L | L4 | N/A | w/ Programmable Fuel Injection; Filter Drier |
