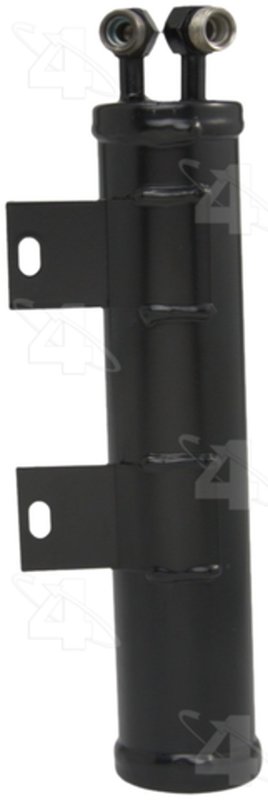

Four Seasons 33329 A/C Receiver Drier
| Brand | Four Seasons 33329 |
|---|---|
| Body Diameter | 2.000 |
| Body Length | 11.000 |
| Bracket? | w/ Bracket |
| Connector B Type | Male Insert O-Ring |
| Connector Type | Male Insert O-Ring |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 50.800 |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| Inlet Filter Fitting Type | Male |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Male Insert O-Ring |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 279.400 |
| Material | Steel |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | Not Included |
| O-Ring A Number/Desc | [24606] / Green O-Ring |
| Outlet Fitting Type | Male Insert O-Ring |
| Outlet Fraction | 3/8 |
| Outlet IN | 0.375 |
| Outlet MM | 9.525 |
| Overall Depth IN | 11.000 |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Style | Steel Filter Drier |
| Switch Port? | w/o Switch Port |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Ford and Mercury |
OE direct replacement. Meets or exceeds OEM requirements for dependable service.
Steel filter drier. Durable construction with desiccant to help protect the system.
Includes seals for a cleaner, easier installation.
Cross-references Four Seasons 33329, Marmon Ride Control A7279 and Pioneer Automotive Industries 603336 for the same application. See all 22.
Four Seasons 33329 Filter Drier Overview
The Four Seasons 33329 A/C receiver drier is a steel filter drier built for HVAC service where moisture control and refrigerant filtration matter. It uses male insert O-ring inlet and outlet connections, includes seals, and meets or exceeds OEM requirements for direct replacement service.
Four Seasons Filter Drier products are built for air conditioning repair work that calls for dependable refrigerant system protection. This steel filter drier is part of the Four Seasons 33329 line and is specified with a 2.000-inch body diameter, 11.000-inch overall length, and a replaceable-desiccant design that is not serviceable once installed.
Key Features
- Steel A/C receiver drier construction
- Male insert O-ring inlet and outlet fittings
- Desiccant included for moisture absorption
- Washer not included
- Gaskets/seals included
- Meets or exceeds OEM specifications
- No service port and no switch port
- No sight glass
- Bracket configuration noted as w/ bracket
Detailed Description
Four Seasons 33329 is an A/C receiver drier used in automotive HVAC systems to help keep refrigerant clean and dry. The steel body measures 2.000 inches in diameter and 11.000 inches in length, with 3/8-inch inlet and outlet connections using male insert O-ring fittings. The unit includes green O-rings and is listed as a steel filter drier with desiccant material inside.
For service work on Ford Mustang and Ford Thunderbird applications, this receiver drier supports OEM-style replacement where the original system uses the same connection style and package dimensions. The Four Seasons 33329 part number is also referenced in aftermarket cross listings, including AC2247 and 172274, for the same application.
What It Helps Address
- Moisture contamination in the A/C system
- Refrigerant flow restriction caused by a saturated drier
- Debris capture in the HVAC refrigerant circuit
- Loss of cooling performance from a worn receiver drier
- Service replacement needs on Ford Mustang and Ford Thunderbird A/C systems
Installation Notes and Tips
Verify inlet and outlet size, fitting style, and overall body dimensions before installation. This Four Seasons 33329 receiver drier uses male insert O-ring connections and does not include a service port, switch port, or sight glass. Replace the O-rings during service and confirm the system is evacuated and leak-checked after installation.
Because fitment data is not provided in the catalog record, confirm the original receiver drier configuration on the vehicle before ordering. This part number is commonly searched for Ford Mustang A/C receiver drier and Ford Thunderbird receiver drier replacement work.
Quality Assurance
This Four Seasons filter drier is listed as meeting or exceeding OEM requirements. The steel construction, included seals, and OE-style connection layout support accurate HVAC service on the specified application.
