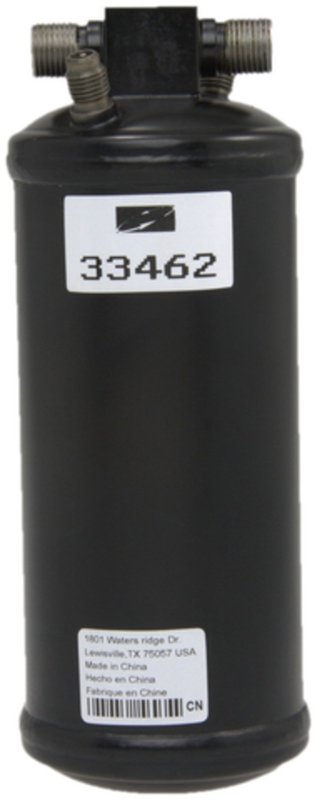

Four Seasons 33462 A/C Receiver Drier
| Brand | Four Seasons 33462 |
|---|---|
| Material | Steel |
| Inlet Filter Fitting Type | Male |
| Desiccant | Yes |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Type | Washer not included |
| Body Diameter | 3.000 |
| Body Length | 7.500 |
| Moisture Indicator Window | No |
| Inlet Fitting Type | Male insert o-ring |
| Desiccant Replaceable | Not replaceable |
| Fuse Plug | No |
| Inlet Fitting Diameter | 0.375 |
| Outlet Fitting Type | Male insert o-ring |
| Mounting Bracket Included | Not included |
| Bracket? | W/o bracket |
| Connector B Type | Male insert o-ring |
| Connector Type | Male insert o-ring |
| Description | Filter driers |
| Dia. MM | 76.200 |
| Gasket / Seals? | Included |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 9.525 |
| Length MM | 190.500 |
| Meets / Exceeds OEM? | Yes |
| New or Reman | New |
| O-Ring A Number/Desc | [24650] / green o-ring |
| O-Ring A Quantity | 2 |
| Fits | — |
OE-grade replacement. Meets or exceeds OEM requirements for dependable system service.
Steel construction. Durable filter drier body with a compact 3.000-inch diameter.
Desiccant included. Helps remove moisture to protect A/C system performance.
Cross-references Carlson 7161, Carlson 19147 and Four Seasons 33462 for the same application. See all 58.
Four Seasons 33462 A/C Receiver Drier
Four Seasons 33462 is a steel A/C receiver drier built for HVAC systems that use a male insert O-ring connection and a service port. It includes desiccant and gasket/seal components, helping support clean, dry refrigerant flow in the air conditioning circuit. This Four Seasons filter drier is a direct replacement choice for service work on vehicles such as Honda Civic and Toyota Corolla applications where the correct receiver drier is specified.
Key Features
- Steel filter drier construction for HVAC service
- Male insert O-ring inlet and outlet fittings
- 3/8 in. inlet and outlet diameter
- Desiccant included; desiccant is not replaceable
- Service port included
- Meets or exceeds OEM requirements
- New part, not remanufactured
- Four Seasons 33462 part number for easy lookup
Product Details
The Four Seasons Filter Drier line is focused on replacement HVAC components for automotive air conditioning systems. Part number 33462 is a steel receiver drier with a 3.0 in. body diameter and 7.5 in. body length, using male insert O-ring inlet and outlet connections. It is supplied with green O-rings and is built without a mounting bracket, moisture indicator window, fuse plug, or sight glass. This part cross-references Monroe Shocks & Struts 173042 for the same application.
Common Problems It Can Address
- Moisture contamination in the A/C refrigerant circuit
- Reduced cooling performance caused by a saturated desiccant
- Service repairs requiring a receiver drier with a 3/8 in. male insert O-ring connection
- Leak concerns at worn O-ring sealing points
- HVAC service work where the original receiver drier is no longer sealing correctly
Installation Notes
Verify the inlet and outlet fitting style, body dimensions, and service port configuration before installation. Replace the O-rings during service and confirm the system is evacuated and recharged according to the vehicle service procedure. This part is commonly searched for A/C receiver drier replacement on Honda Civic and Toyota Corolla HVAC repairs, and the Four Seasons 33462 listing should be matched to the exact application before ordering.
Quality Assurance
Four Seasons 33462 is listed as meeting or exceeding OEM requirements. The steel construction, included desiccant, and OE-style O-ring connection points support a service-ready replacement for automotive A/C maintenance.
